TP-Link TL-FC311B-2 Single-Mode WDM converter, 1Gbps, 1x SC, 2km
TP-Link TL-FC311B-2 Single-Mode WDM converter, 1Gbps, 1x SC, 2km
×
0/0
Your price excl. VAT
21.97 EUR
| Recycling fee | 0.04 EUR |
|---|---|
| Your price with RF | 22.01 EUR |
| Your price incl. VAT (21%) | 26.63 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410599 | |
| Part No. | FC311B-2 | |
| Warranty | 60 months | |
FC311A-2
21.97 EUR excl. VAT
26.63 EUR incl. VAT
In Stock
FC1420
164.93 EUR excl. VAT
199.61 EUR incl. VAT
Ordered, unknown date
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Optics
For cable type:
Single Mode
Transmission speed:
1 Gbps
Wavelength - Tx/Rx [nm]:
1310 / 1550
Distance [km]:
2
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 10/100/1000Mbps
Optical interfaces:
(1) 1000Mbps
Power
Power type:
DC connector
Max. power consumption [W]:
3

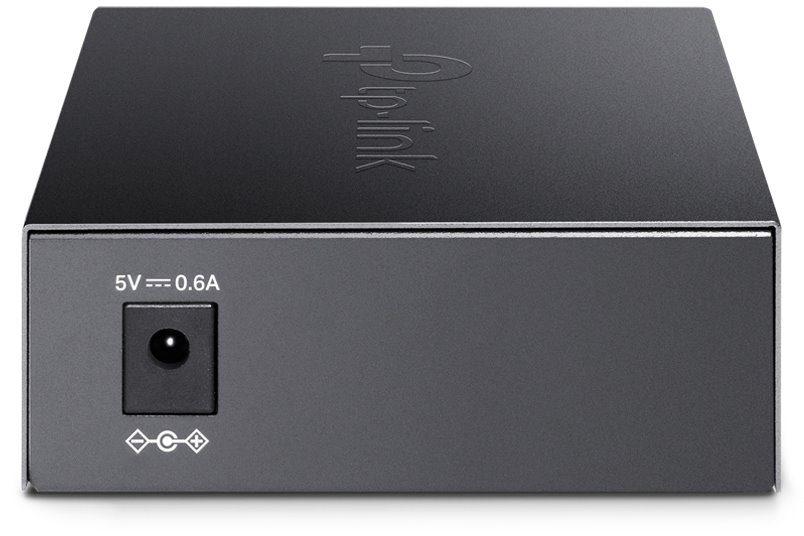

Power via connector/terminal:
5V / 0,6A
Physical characteristics
Operating temperature [°C]:
0 up to 50
Width [mm]:
73
Height [mm]:
27
Depth [mm]:
95
Product description
TL-FC311B-2 is an optical-metallic WDM converter from RJ45 to optical SC connector. Maximum throughput is 1000Mbps FD, which is also adapted to the Ethernet port, which can communicate with your device with 10/100/1000 Mbps speed. The converter can be used up to a distance of 2km with a single-mode (9/125um) optical fiber with one SC connector. The wavelength is 1310 / 1550nm (Tx/Rx) and for proper functionality it is necessary to have on opposite side model TL-FC311A-2, which has opposite Tx and Rx than this model.
Package contains
Download
DatasheetGPSR
TP-LINK Czech s.r.o.
Pekařská 695/10, 155 00 Praha 5
support.cz@tp-link.com
Technical support for TP-LINK products is available at support.cz@tp-link.com email or on telephone number (+420) 212 812 622. Both services are available on working days between 9:00 and 17:00 with the first response to the latest 24 hours.
