TP-Link SG6654X Omada 48-Port Gigabit Stackable L3 Managed Switch
Your price excl. VAT
2 362.45 EUR
| Recycling fee | 0.03 EUR |
|---|---|
| Your price with RF | 2 362.48 EUR |
| Your price incl. VAT (21%) | 2 858.60 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10411066 | |
| Part No. | SG6654X | |
| Warranty | 60 months | |
You have a choice of 4 variantscompare all
48 ports
SG6654X
2 362.45 EUR
SX6632YF
3 676.20 EUR excl. VAT
4 448.27 EUR incl. VAT
In Stock
OC200
98.01 EUR excl. VAT
118.64 EUR incl. VAT
Expected 29.11.2024
ML-S+85D-03
8.44 EUR excl. VAT
10.30 EUR incl. VAT
In Stock
ML-S+31D-10
13.65 EUR excl. VAT
16.60 EUR incl. VAT
In Stock
ML-S+2733-10
18.54 EUR excl. VAT
22.52 EUR incl. VAT
In Stock
ML-S+3327-10
18.54 EUR excl. VAT
22.52 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.43 EUR excl. VAT
4.15 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Connectors and Interfaces
LAN speed:
(48) 10/100/1000Mbps
Management LAN:
(1) 10/100Mbps
Optical interfaces:
(6) 10Gbps
Serial port:
USB-C, RJ45
USB ports 2.0:
2
Power
Power type:
Mains power (230V)
Redundant power supply:
Yes
Max. power consumption [W]:
40
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Switch mode
Operating temperature [°C]:
-5 up to 50
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
380
General
Switchning capacity [Gbps]:
216
MAC address table:
32000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
160,7
Software
Web management:
Yes
Management:
Web management, SSH, Telnet, Omada controller
Features:
L3, VLAN, QoS, Physical stacking, DHCP snooping
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Video
Product description

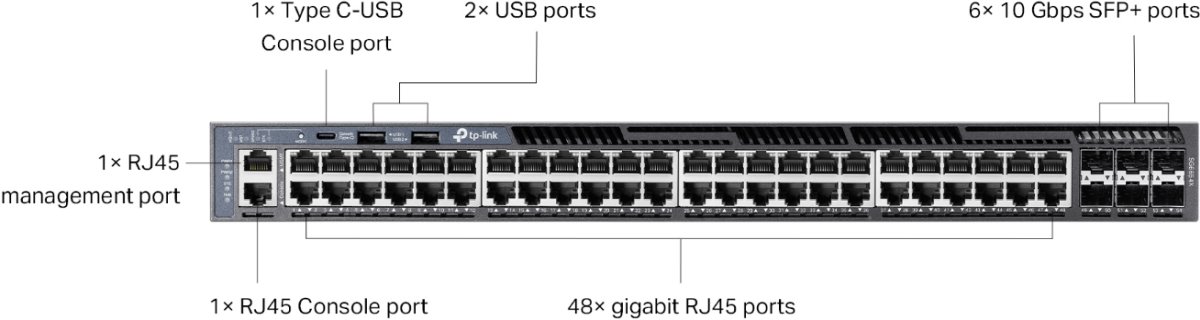

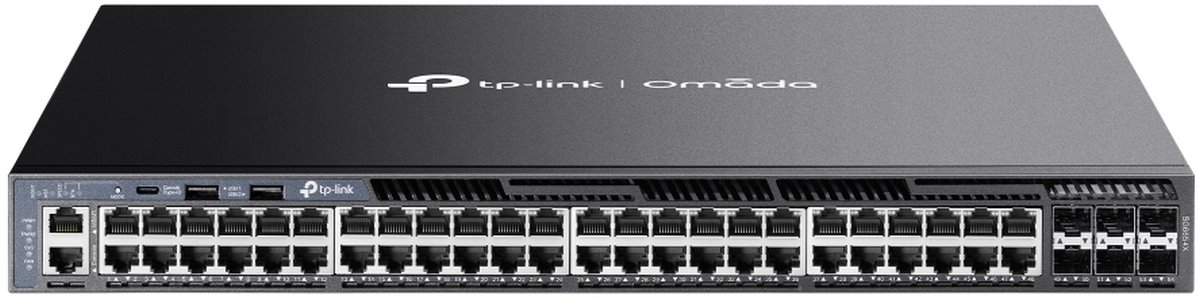

Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
Key features
Package contents
Download
Datasheet User GuideTechnical support for TP-LINK products is available at support.cz@tp-link.com email or on telephone number (+420) 212 812 622. Both services are available on working days between 9:00 and 17:00 with the first response to the latest 24 hours.
