true
TP-Link SG3428XF JetStream Switch
TP-Link SG3428XF JetStream Switch
×
0/0
Your price excl. VAT
604.70 EUR
| Recycling fee | 0.03 EUR |
|---|---|
| Your price with RF | 604.73 EUR |
| Your price incl. VAT (21%) | 731.72 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410761 | |
| Part No. | SG3428XF | |
| Warranty | 60 months | |
ML-S+85D-03
8.52 EUR excl. VAT
10.39 EUR incl. VAT
Expected 27.1.2025
ML-S+31D-10
13.77 EUR excl. VAT
16.75 EUR incl. VAT
In Stock
ML-S+2733-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
ML-S+3327-10
18.71 EUR excl. VAT
22.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(4) 10/100/1000Mbps
Optical interfaces:
(20) 1000Mbps + (4) 1000Mbps Combo + (4) 10Gbps
Serial port:
micro USB, RJ45
Power
Power type:
Mains power (230V)
Redundant power supply:
Yes
Max. power consumption [W]:
36
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Operating temperature [°C]:
0 up to 45
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
220
General
Switchning capacity [Gbps]:
128
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
95,2
Software
Web management:
Yes
Management:
Web management, SSH, Telnet, Omada controller
Features:
VLAN, QoS, DHCP snooping
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description

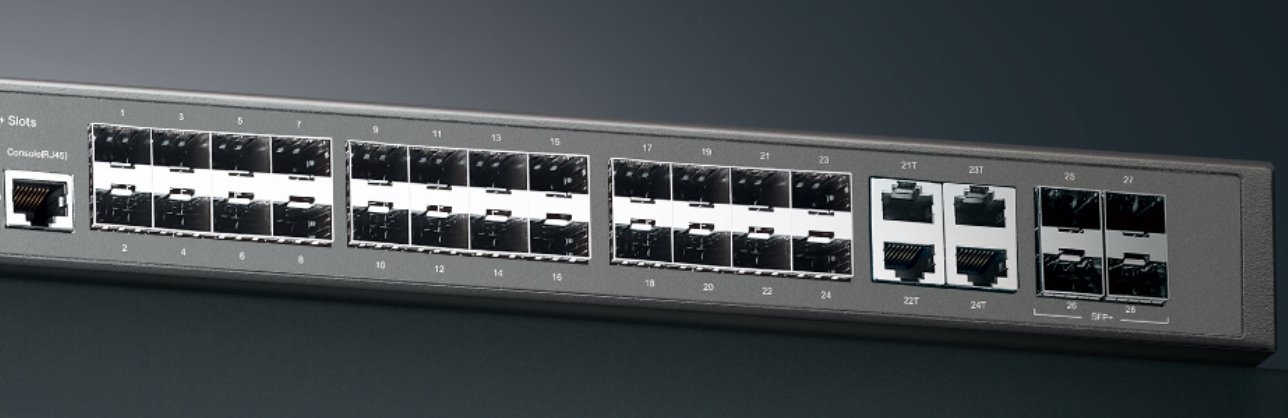

Jetstream switch TL-SG3428XF by TP-Link is a manageable optical L3 switch that is equipped with optical 20× SFP + 4× SFP/GLAN Combo and 4× SFP+ ports and two console ports (RJ45 and micro USB). The switch has a total switching capacity of 128 Gbps, 2 redundant sources with an input voltage of 230 V, a single fan, maximum consumption 36 W and allows mounting in a 19" rack, thanks to the included ears.
Important features
Omada Controller
The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway routers and provides 100% centralized management in the cloud. Omada creates a highly scalable network including control from a single interface. Provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.
