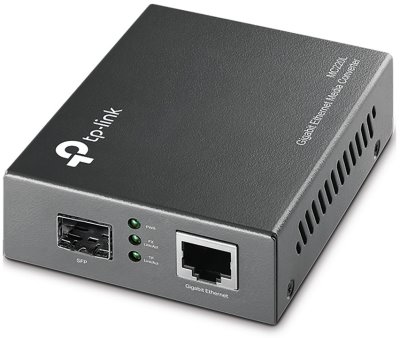

TP-Link MC220L Transceiver 10/100/1000TX/1000FX

TP-Link MC220L Transceiver 10/100/1000TX/1000FX
TP-Link MC220L Transceiver 10/100/1000TX/1000FX
×
0/0
TP-Link MC220L Transceiver 10/100/1000TX/1000FX
TP-Link MC220L Transceiver 10/100/1000TX/1000FX
Recommended
Your price excl. VAT
17.87 EUR
Recycling fee 0.04 EUR
Your price with RF 17.91 EUR
Your price incl. VAT (21%) 21.67 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
 Per orig. box:  30 pcs.
Manufacturer

TP-Link

Code10600013
Part No.MC220L
Warranty 60 months
  • Related products3
TP-Link MC1400 - 14-Slot chassis for media convertors, v2
MC1400

186.90 EUR excl. VAT
226.20 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR

Product description

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. The converter is compatible with both duplex SFP modules and simplex modules (also referred to as Bi-Di or WDM).

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 20 kilometers when utilizing single-mode fiber.

Key features

  • 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • FX port supports hot-swappable
  • Extends fiber distance up to 0.55km for multi-mode fiber and 20km for single-mode fiber

Package contains

  • Mediaconverter
  • Power adapter

Download

Datasheet

GPSR

Contact:
TP-LINK Czech s.r.o.
Pekařská 695/10, 155 00 Praha 5
support.cz@tp-link.com

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Optics

Transmission speed: 1 Gbps

Connectors and Interfaces

Optical Connectors: (1) SFP
LAN speed: (1) 10/100/1000Mbps
Optical interfaces: (1) 1000Mbps

Power

Power type: DC connector
Max. power consumption [W]: 1,7
Power via connector/terminal: 9V / 0,6A

Physical characteristics

Operating temperature [°C]: 0 up to 40
Width [mm]: 73
Height [mm]: 27
Depth [mm]: 95
