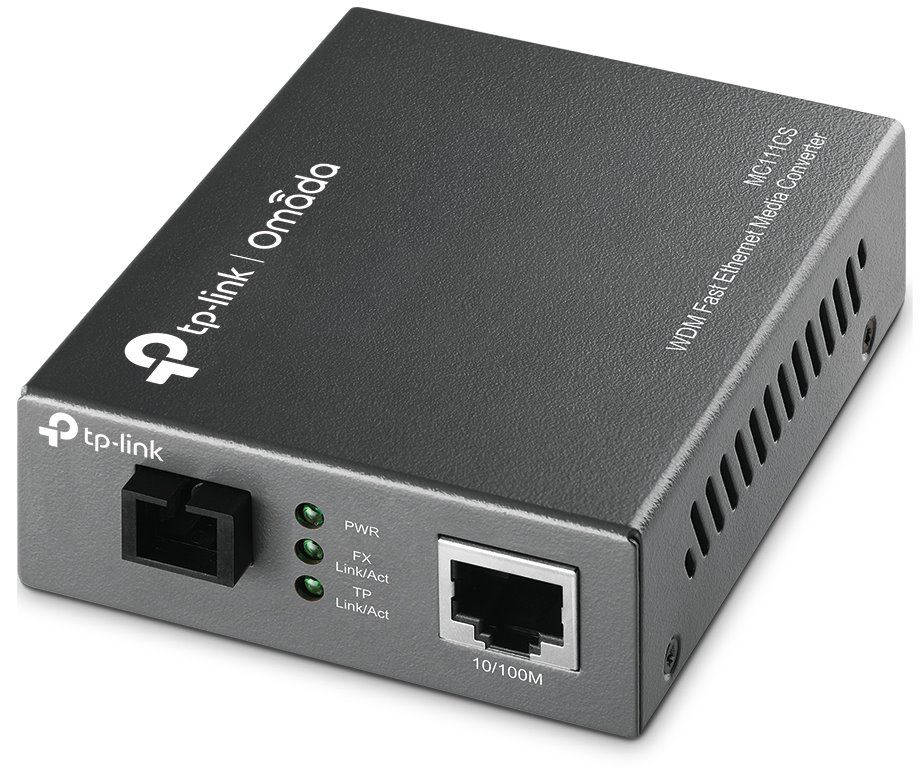

TP-Link MC111CS SingleMode transceiver, 10/100Mbps, 1x SC
TP-Link MC111CS SingleMode transceiver, 10/100Mbps, 1x SC
×
0/0
Your price excl. VAT
25.94 EUR
| Recycling fee | 0.04 EUR |
|---|---|
| Your price with RF | 25.98 EUR |
| Your price incl. VAT (21%) | 31.44 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
30 pcs.
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10600003 | |
| Part No. | MC111CS | |
| Warranty | 60 months | |
MC112CS
25.94 EUR excl. VAT
31.44 EUR incl. VAT
In Stock
MC1400
185.68 EUR excl. VAT
224.72 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Optics
For cable type:
Single Mode
Transmission speed:
100 Mbps
Wavelength - Tx/Rx [nm]:
1550 / 1310
Distance [km]:
20
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 10/100Mbps
Power
Power type:
DC connector
Max. power consumption [W]:
1,3
Power via connector/terminal:
9V / 0,6A
Physical characteristics
Operating temperature [°C]:
0 up to 40
Width [mm]:
73
Height [mm]:
27
Depth [mm]:
95
Product description
The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Download
DatasheetTechnical support for TP-LINK products is available at support.cz@tp-link.com email or on telephone number (+420) 212 812 622. Both services are available on working days between 9:00 and 17:00 with the first response to the latest 24 hours.
