TP-Link LS105LP PoE switch
TP-Link LS105LP PoE switch
×
0/0
Your price excl. VAT
21.97 EUR
| Recycling fee | 0.03 EUR |
|---|---|
| Your price with RF | 22.00 EUR |
| Your price incl. VAT (21%) | 26.62 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410923 | |
| Part No. | LS105LP | |
| Warranty | 60 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(5) 10/100Mbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af
PoE Out ports:
4
PoE budget [W]:
41
Long range PoE - up to 250m:
Yes
Max. power consumption [W]:
2,4
Power via connector/terminal:
53V DC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
0 up to 40
Width [mm]:
100
Height [mm]:
25
Depth [mm]:
98
General
Switchning capacity [Gbps]:
1
MAC address table:
2000
Jumbo frame [Bytes]:
2048
Packet forwarding rate [Mpps]:
0,74
Product description

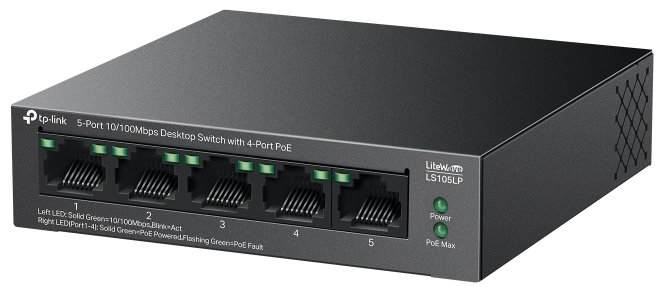

TP-Link PoE Switch LS105LP is an unmanaged PoE Switch with 5x 10/100Mbps, 4 ports support PoE 802.3af with up to 15.4W/port. Total PoE budget of the switch is 41W. With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas. Extended mode reduces the link speed on PoE ports to 10Mbps, more than sufficient for transmitting images from cameras. Another feature is PoE auto recovery, which automatically restarts unresponsive devices powered by PoE.
Key Features
Package Contents
