TP-Link ES205GP - Omada 5-port Easy Managed Switch, 4x PoE+
TP-Link ES205GP - Omada 5-port Easy Managed Switch, 4x PoE+
×
0/0
New product
Your price excl. VAT
49.48 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 49.54 EUR |
| Your price incl. VAT (21%) | 59.94 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10411238 | |
| Part No. | ES205GP | |
| Warranty | 60 months | |
You have a choice of 2 variantscompare all
4x PoE-Out
ES205GP
49.48 EUR
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(5) 10/100/1000Mbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
4
PoE budget [W]:
65
Long range PoE - up to 250m:
Yes

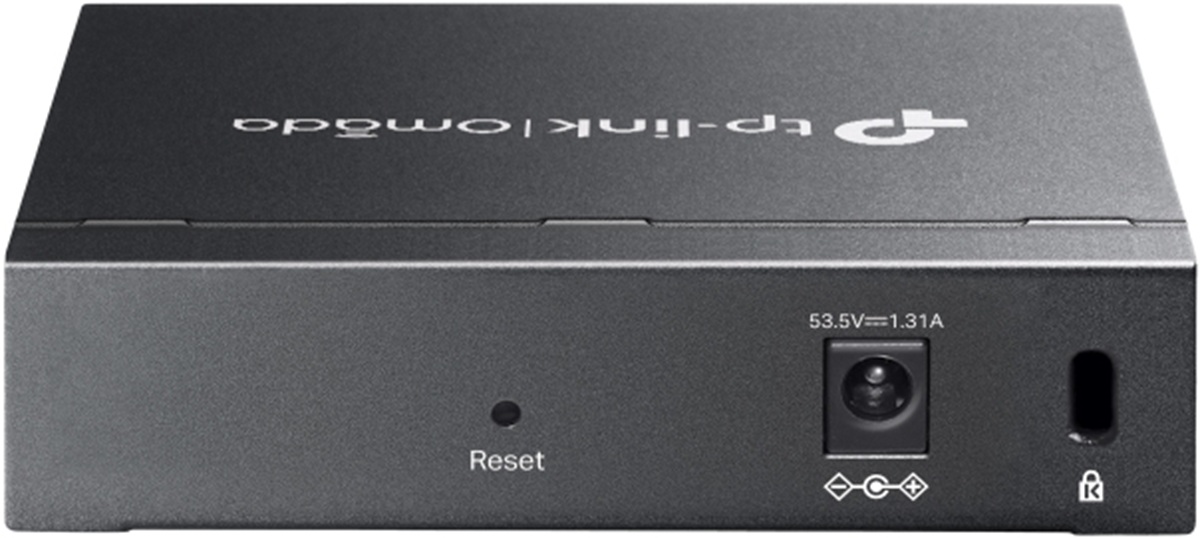

Power via connector/terminal:
53,5V/1,31A
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
0 up to 40
Width [mm]:
100
Height [mm]:
25
Depth [mm]:
98
General
Switchning capacity [Gbps]:
10
MAC address table:
8000
Packet forwarding rate [Mpps]:
7,4
Software
Web management:
Yes
Management:
Web management, Omada controller
Features:
VLAN, QoS
Default IP address:
192.168.0.1, Dynamic from DHCP
Default login and password:
admin / admin
Product description

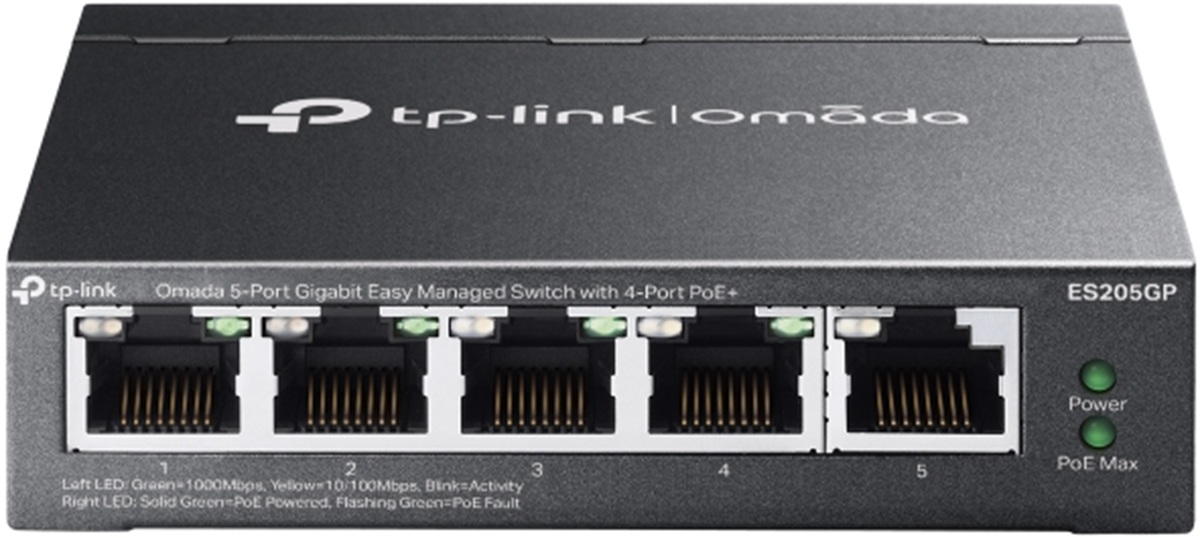

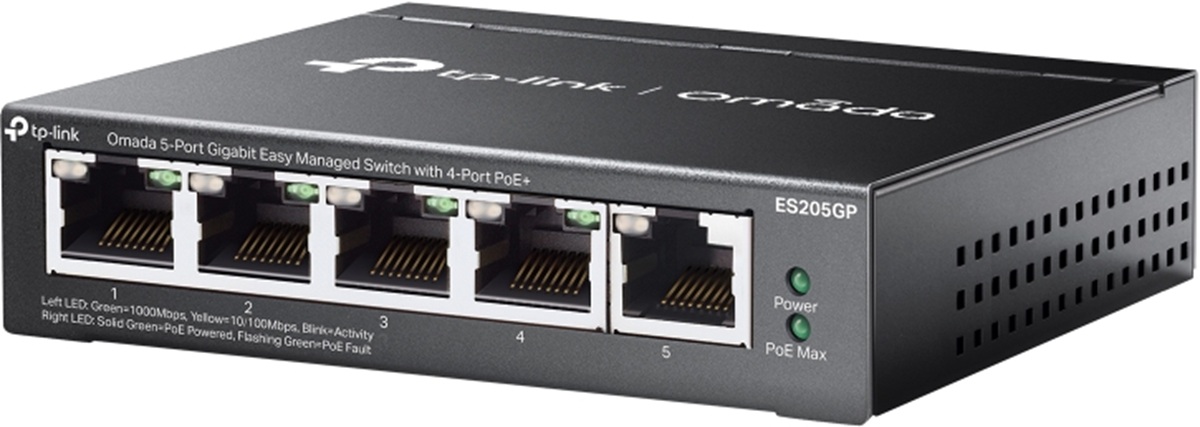

This switch is equipped with 5x 10/100/1000Mbps ports, of which 4 support PoE-Out with the 802.3af/at standard (up to 30W/port). The total PoE budget of the switch is 65W and can be used up to a distance of 250 m, with the link speed reduced to 10 Mbps. The advantage of this simple PoE switch is the ability to manage it via a web interface or an app. It offers a durable metal construction, silent operation without fans, and features such as QoS, VLAN, Port Isolation/Mirroring, Storm Control, IGMP Snooping, and more.
Package Contents
Download
Datasheet Installation Guide User GuideGPSR
