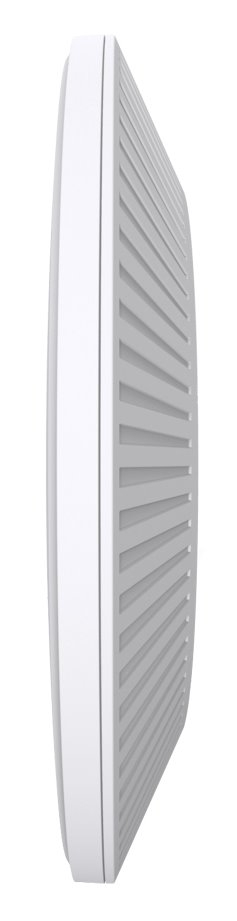

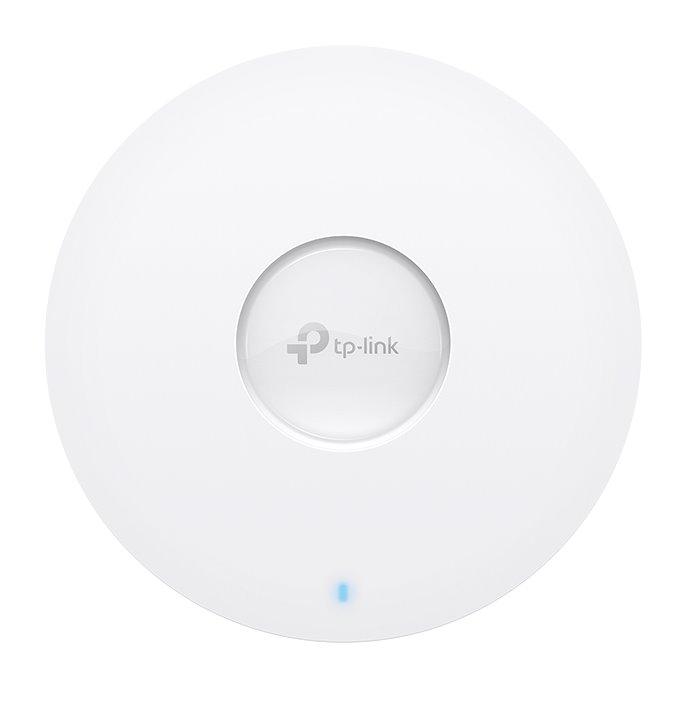

TP-Link EAP670 Access Point v2

TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
×
0/0
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2
TP-Link EAP670 Access Point v2

Your price excl. VAT
163.75 EUR
Recycling fee 0.04 EUR
Your price with RF 163.79 EUR
Your price incl. VAT (21%) 198.19 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

TP-Link

Code10410687
Part No.EAP670
Warranty 60 months
  • Related products5
TP-Link OC300 - Omada Hardware Controller
OC300

204.70 EUR excl. VAT
247.74 EUR incl. VAT
In Stock
TP-Link OC200 - Omada Cloud Controller
OC200

98.22 EUR excl. VAT
118.89 EUR incl. VAT
In Stock
TP-LINK wall mount/stand for cameras TAPO C501GW, white with cable cover
D-EAP6X-UNI

20.36 EUR excl. VAT
24.64 EUR incl. VAT
Not in stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download

Product description

EAP670 is a wireless Access Point from the TP-Link brand, from the EAP family, and is designed for indoor use with ceiling or wall mounting. Dual-band AP with support for 802.11a/b/g/n/ac/ax WiFi standards (Wi-Fi 6) is 2×2 MIMO in the 2.4 GHz band and 4×4 MIMO in the 5 band GHz with modulation speeds 574 + 4804 Mbps, four built-in antennas with 4 dBi and 5 dBi gain, support for channel widths up to 160 MHz and functions such as MU-MIMO, OFDMA and encryption using WPA3.

Key Features

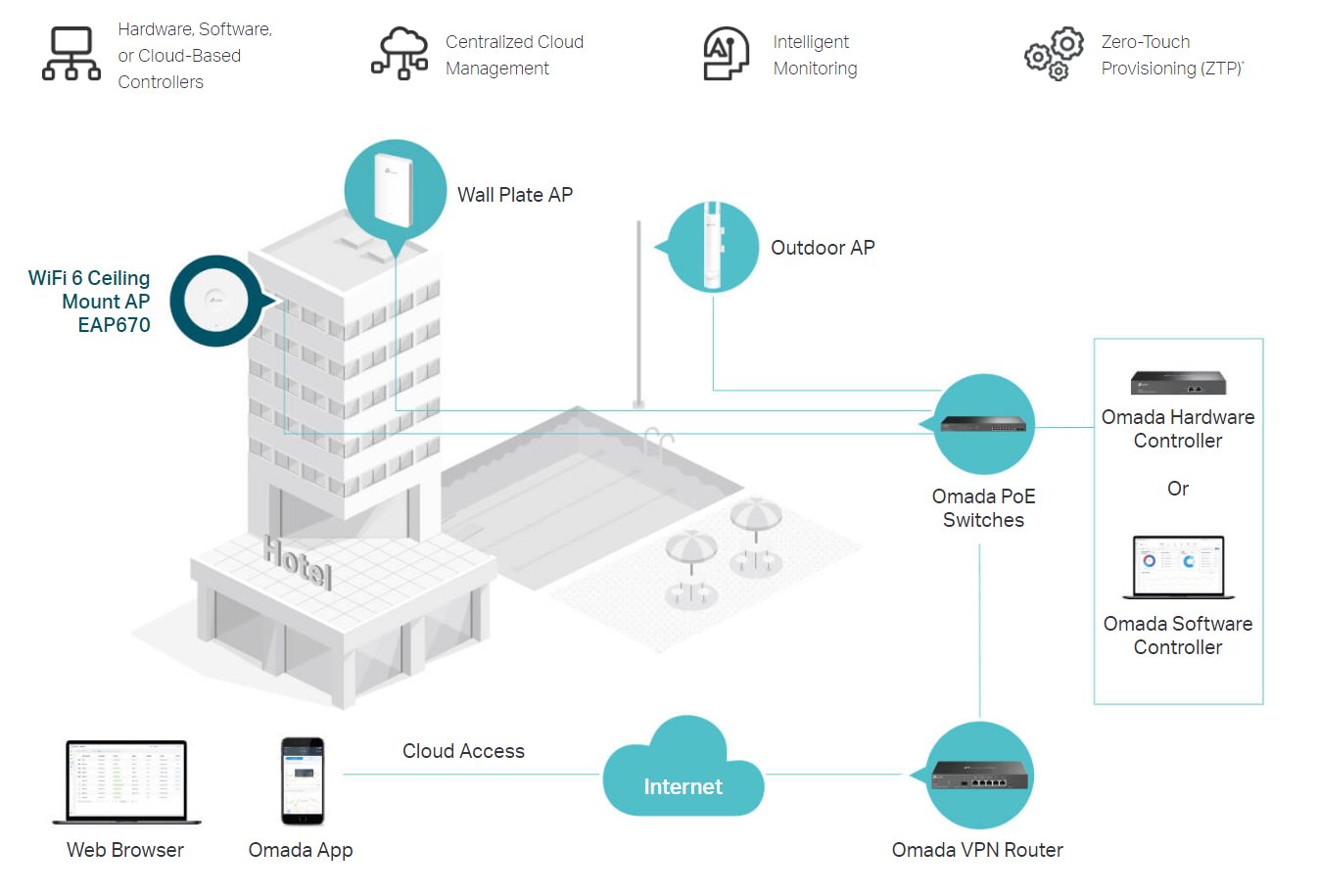

  • Central management of EAP units via Omada SDN controller
  • Compact design and easy installation
  • 1x 100/1000/2500 Mbps LAN
  • Fast WiFi - 574 Mbps (2.4 GHz, 2x2 MIMO), 4804 Mbps (5 GHz, 4x4 MIMO)
  • Power supply via PoE IN - 802.3at and 12V/2A adapter
  • Feature support: Airtime fairness, Band steering and Beamforming

Package Contents

  • Device
  • 12V/2A power adapter
  • Ceiling / wall mounting kit
  • Mounting screws

Download

Datasheet

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Wireless features

Wireless frequency: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11ac, 802.11ax, 802.11n, 802.11a, 802.11b/g
MU-MIMO: Yes
Transmission speed - 5GHz [Mb/s]: 4804
Transmission speed - 2.4GHz [Mb/s]: 574
Tx power 2.4GHz [dBm]: 25
Tx power 5GHz [dBm]: 28
Security: WPA-PSK, WPA2-PSK, WPA3
2.4GHz MIMO: 2 x 2
5GHz MIMO: 4 x 4
Type of antenna: Built-in
Internal antennas: 6
Roaming: Yes
Antenna gain [dBi]: 4, 5

Connectors and Interfaces

LAN speed: (1) 100/1000/2500Mbps
Gigabit LAN: Yes

Power

Power over Ethernet: 802.3at
PoE type: PoE-In (only)
Max. power consumption [W]: 21
Power via connector/terminal: 12V / 2A

Physical characteristics

Purpose: Indoor
Buttons: Reset
Operating temperature [°C]: 0 up to 40
Weight [g]: 670
Width [mm]: 220
Height [mm]: 33
Depth [mm]: 220

Software

Operating mode: Access Point
Management: Omada controller
Default IP address: Dynamic from DHCP
Default login and password: admin / admin
