TP-Link EAP655-wall Access Point

Product description

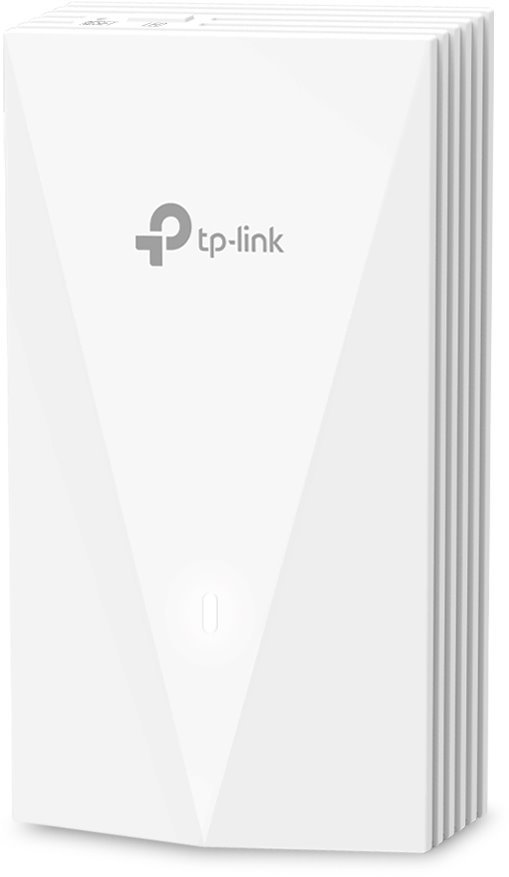

EAP650-wall is a wireless Access Point from the TP-Link brand, from the EAP family and is intended for indoor use with surface mounting on a box. Dual-band AP supporting WiFi standards 802.11a/b/g/n/ac/ax is 2×2 MIMO on both 2.4GHz and 5GHz parts with modulation rates 574 + 2402 Mbps, four built-in antennas with gain 3 and 5 dBi and double the capacity thanks to 160MHz width channels in the 5GHz band.

LAN and PoE

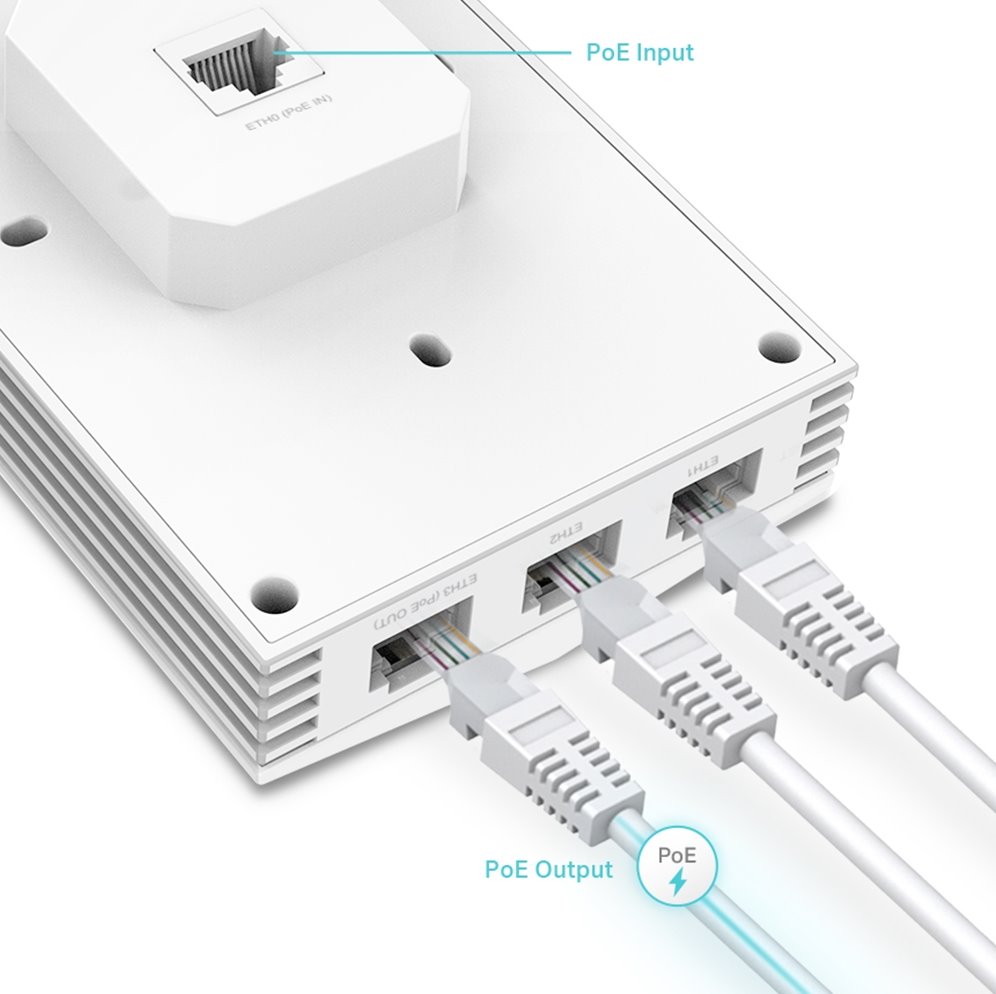

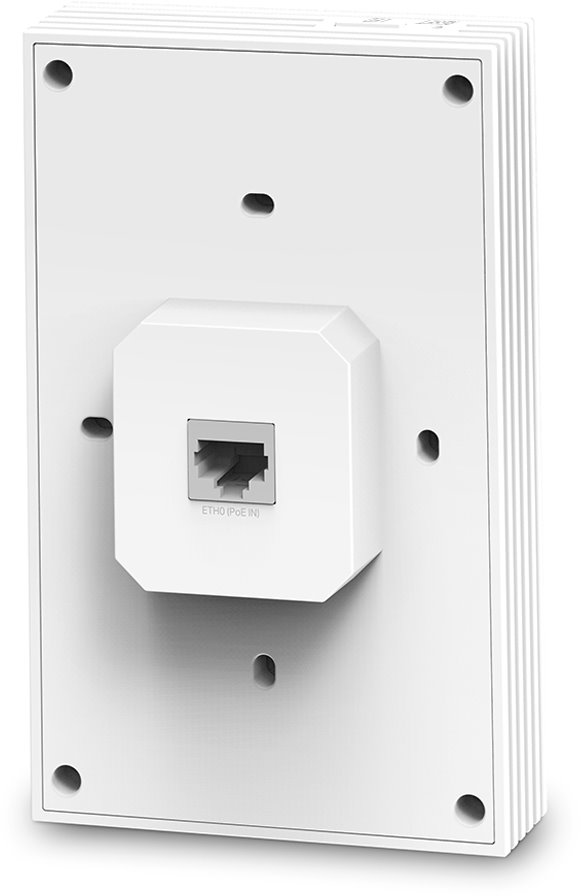

The AP has four 10/100/1000 Mbps LAN ports, of which the first port supports PoE IN (802.3af/at standards) and is located on the back of the device - towards the plastic box in the wall. The remaining 3 Gigabit LAN ports are located on the bottom of the device and one of them supports PoE-throughput (PoE-out) and can thus power other devices such as VoIP, IP camera and other devices with a maximum consumption of 13 W.

Key Features

• Central management of EAP units via Omada SDN controller
• 4× 10/100/1000 Mbps LAN
• Fast WiFi - 574 Mbps (2.4 GHz), 2402 Mbps (5 GHz)
• Support PoE In (802.3af/at PoE) and PoE Out on the last port
• The design enables easy installation in wall electrical installation boxes for EU and US standardized network distribution

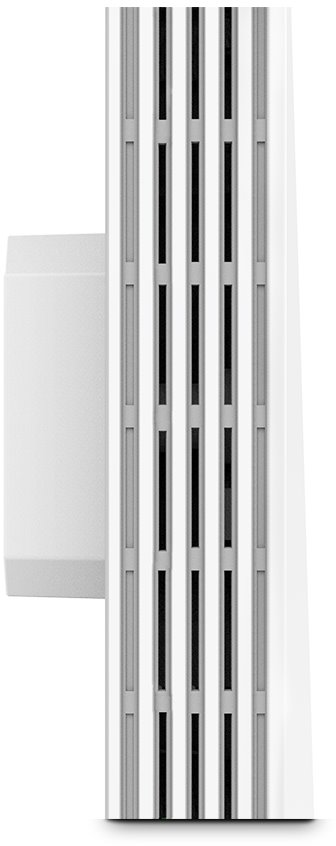

• Compact design with a slim profile and simple assembly
• Function support: Airtime fairness, Band steering and Beamforming

Package contents

• Device
• Mounting screws
