TP-Link EAP653 Access Point
TP-Link EAP653 Access Point
×
0/0
Your price excl. VAT
104.46 EUR
| Recycling fee | 0.04 EUR |
|---|---|
| Your price with RF | 104.50 EUR |
| Your price incl. VAT (21%) | 126.45 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410707 | |
| Part No. | EAP653 | |
| Warranty | 60 months | |
You have a choice of 2 variantscompare all
Balení bez napájecího adaptéru
EAP653
104.46 EUR
D-EAP6X
17.44 EUR excl. VAT
21.10 EUR incl. VAT
In Stock
D-EAP6X-UNI
20.50 EUR excl. VAT
24.81 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ax, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
30
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
4
Roaming:
Yes
Antenna gain [dBi]:
4, 5
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3at
PoE type:
PoE-In (only)
Max. power consumption [W]:
13,5
Power via connector/terminal:
12V / 1A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
0 up to 40
Width [mm]:
160
Height [mm]:
33
Depth [mm]:
160
Software
Operating mode:
Access Point
Default IP address:
Dynamic from DHCP
Default login and password:
admin / admin
Product description

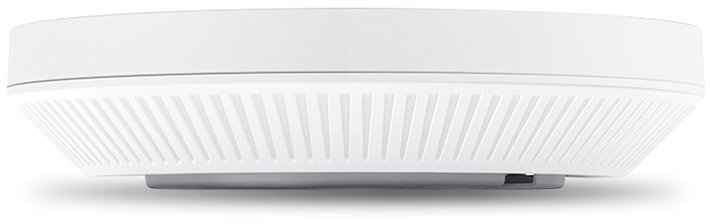

The EAP653 is EAP Access Point with Roaming, which supports the latest wireless protocol 802.11ax with MU-MIMO technology and easily reaches speeds of up to 2402 + 574 Mbps in a dual-band Wi-Fi network for multiple devices at once, thanks to 2x2 MIMO on both radio parts. For large data flow, EAP is equipped with one Gigabit LAN port with support for 10/100/1000 Mbps. For great coverage, the AP has a total of 4 built-in antennas, 2 of which operate 2.4GHz radio and have a gain of 4dBi and the remaining 2 antennas take care of 5GHz and have a gain of 5dBi. Thanks to these improvements, the access point also has consumption of 13,5W and can be powered either directly via a 12V DC power adapter or via 802.3at PoE. Great news is encrypting wireless traffic with WPA3.
Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Package contains
Download
DatasheetGPSR
