TP-Link EAP650-wall Access Point

TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
×
0/0
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point
TP-Link EAP650-wall Access Point

Your price excl. VAT
116.05 EUR
Recycling fee 0.04 EUR
Your price with RF 116.09 EUR
Your price incl. VAT (21%) 140.47 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

TP-Link

Code10410753
Part No.EAP650-wall
Warranty 60 months
  • Related products4
TP-Link OC300 - Omada Hardware Controller
OC300

204.70 EUR excl. VAT
247.74 EUR incl. VAT
In Stock
TP-Link OC200 - Omada Cloud Controller
OC200

98.22 EUR excl. VAT
118.89 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download

Product description

EAP650-wall is a wireless Access Point from the TP-Link brand, from the EAP family and is intended for indoor use with surface mounting on a box. Dual-band AP supporting WiFi standards 802.11a/b/g/n/ac/ax and it is 2×2 MIMO on both 2.4GHz and 5GHz parts with modulation rates of 574 + 2402 Mbps, four built-in antennas with gain of 3 and 5 dBi and double capacity thanks to 160 MHz wide channels in the 5GHz band.

EAP650-wall

LAN and PoE

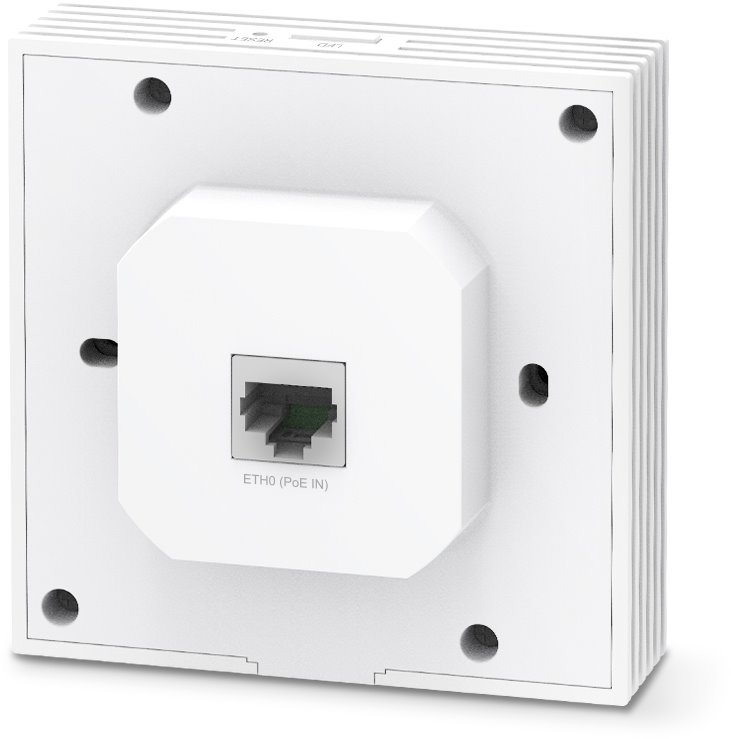

The AP has two 10/100/1000 Mbps LAN ports of which the first port supports PoE IN (802.3af/at standards) and is located on the back of the device - towards the plastic box in the wall. The second Gigabit port is located on the bottom of the device and is intended only as a data port without PoE.

EAP650-wall

Key Features

  • Central management of EAP units via Omada SDN controller
  • 2× 10/100/1000 Mbps LAN
  • Support PoE In, support 802.3af/at PoE
  • Fast WiFi - 574 Mbps (2.4 GHz), 2402 Mbps (5 GHz)
  • The design enables easy installation in wall electrical installation boxes for EU and US standardized network distribution
  • Compact design with a slim profile and simple assembly
  • Function support: Airtime fairness, Band steering and Beamforming

Package contents

  • Device
  • Mounting screws

Download

Datasheet

Bussines information

Luděk Merta, +420 722 926 224 , ludek.merta@discomp.cz

Technical parameters

Wireless features

Wireless frequency: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11ax, 802.11ac, 802.11n, 802.11a, 802.11b/g
MU-MIMO: Yes
Transmission speed - 5GHz [Mb/s]: 2402
Transmission speed - 2.4GHz [Mb/s]: 574
Tx power 2.4GHz [dBm]: 20
Tx power 5GHz [dBm]: 22
Security: WPA, WPA2, WPA3
2.4GHz MIMO: 2 x 2
5GHz MIMO: 2 x 2
Type of antenna: Built-in
Internal antennas: 4
Roaming: Yes
Antenna gain [dBi]: 5

Connectors and Interfaces

LAN speed: (2) 10/100/1000Mbps
Gigabit LAN: Yes

Power

Power over Ethernet: 802.3af, 802.3at
PoE type: PoE-In (only)
Max. power consumption [W]: 11,5

Physical characteristics

Purpose: Indoor
Operating temperature [°C]: 0 up to 40
Width [mm]: 86
Height [mm]: 86
Depth [mm]: 42

Software

Operating mode: Access Point
Default IP address: Dynamic from DHCP
Default login and password: admin / admin
