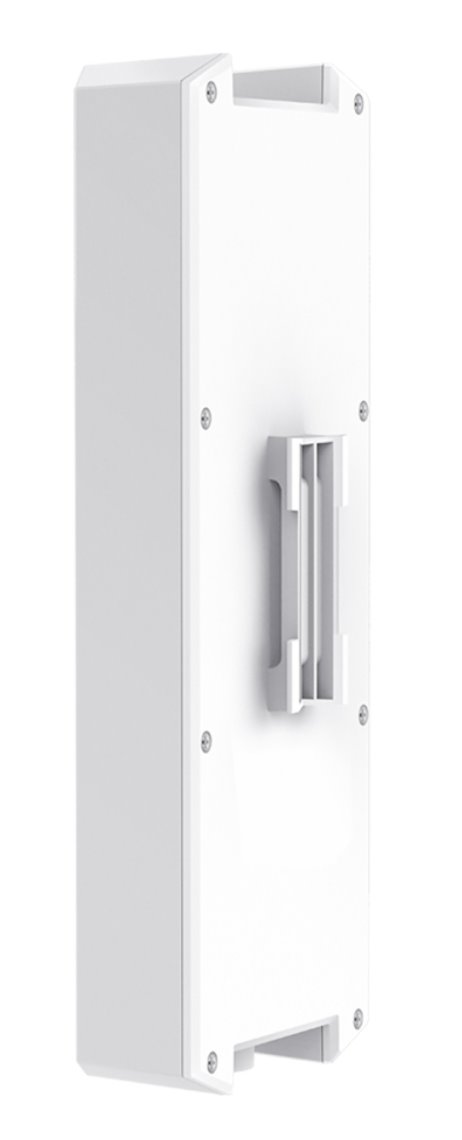

TP-Link EAP623-Outdoor HD Wi-Fi 6 Access Point
Your price excl. VAT
184.27 EUR
| Recycling fee | 0.04 EUR |
|---|---|
| Your price with RF | 184.31 EUR |
| Your price incl. VAT (21%) | 223.02 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410964 | |
| Part No. | EAP623-Outdoor HD | |
| Warranty | 60 months | |
ETH-SP-G2
9.76 EUR excl. VAT
11.89 EUR incl. VAT
In Stock
CT-290-48-B
6.28 EUR excl. VAT
7.60 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.21 EUR excl. VAT
156.34 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Maximum modulation:
1024 QAM
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
30
Security:
WPA, WPA2, WPA3
Azimuth beam width (-6dB) [°]:
360
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
4, 5
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3at
PoE type:
PoE-In (only)
Max. power consumption [W]:
12,5
Power via connector/terminal:
48V DC
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 70
Weight [g]:
790
Width [mm]:
107
Height [mm]:
280
Depth [mm]:
57
Software
Operating mode:
Access Point
IPv6 support:
Yes
Video
Product description
EAP623-Outdoor HD is an outdoor access point from the EAP series that supports the WiFi6 standard with a maximum modulation speed of up to 1.8Gbps (574+1201Mbps). There is support for the latest encryption standard WPA3. With smart antennas with 4dBi / 5dBi gain, high transmission power and MU-MIMO technology, it is ideal for covering large areas. Thanks to the IP67 certification, the AP can be placed outdoors without any worries. One Ethernet port with a speed of 1Gbps is used to provide connectivity, which supports the POE function according to the 802.3at standard. The maximum consumption of the device is 12.5W.
Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Key features
Package contents
Download
Datasheet Omada EAP User GuideTechnical support for TP-LINK products is available at support.cz@tp-link.com email or on telephone number (+420) 212 812 622. Both services are available on working days between 9:00 and 17:00 with the first response to the latest 24 hours.
