TP-Link CPE710 - Outdoor CPE unit, 5GHz, 23dBi, 867Mbps
TP-Link CPE710 - Outdoor CPE unit, 5GHz, 23dBi, 867Mbps
×
0/0
Your price excl. VAT
78.49 EUR
| Recycling fee | 0.04 EUR |
|---|---|
| Your price with RF | 78.53 EUR |
| Your price incl. VAT (21%) | 95.02 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 19704303 | |
| Part No. | CPE710 | |
| Warranty | 36 months | |
ETH-SP-G2
9.93 EUR excl. VAT
12.10 EUR incl. VAT
In Stock
PK35S421V100
10.29 EUR excl. VAT
12.45 EUR incl. VAT
In Stock
CT-290-48-B
6.34 EUR excl. VAT
7.67 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.32 EUR excl. VAT
157.69 EUR incl. VAT
Expected 5.3.2025
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
802.11ac, 802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
Tx power 5GHz [dBm]:
27
Security:
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
9
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
23
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
16 .. 27V DC
PoE type:
PoE-In (only)
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Width [mm]:
366
Height [mm]:
280
Depth [mm]:
207
Hardware
CPU:
MIPS 74Kc
CPU frequency [MHz]:
750
RAM [MB]:
128
Software
Operating mode:
Bridge, Client, Repeater, AP Router, Access Point, Client Router (wisp)
Product description

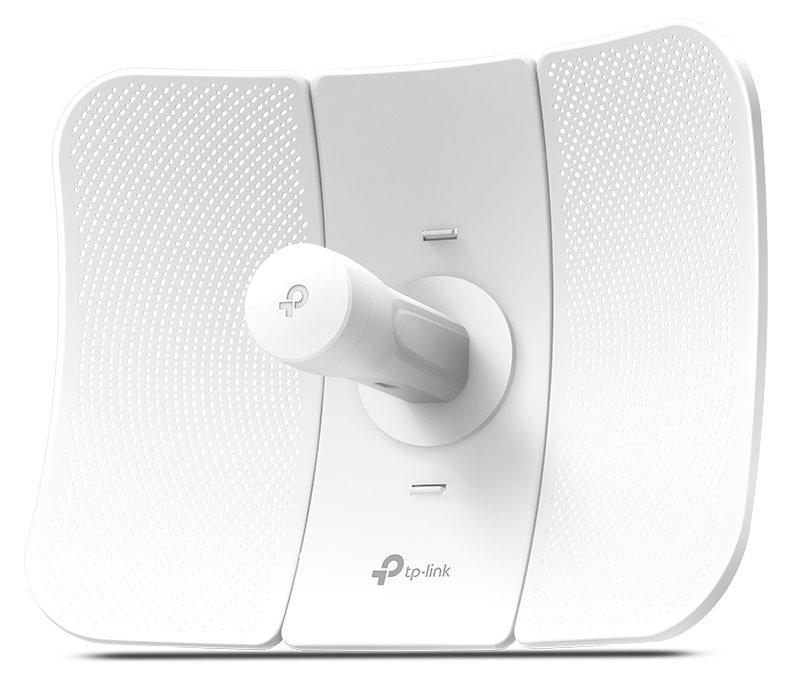

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

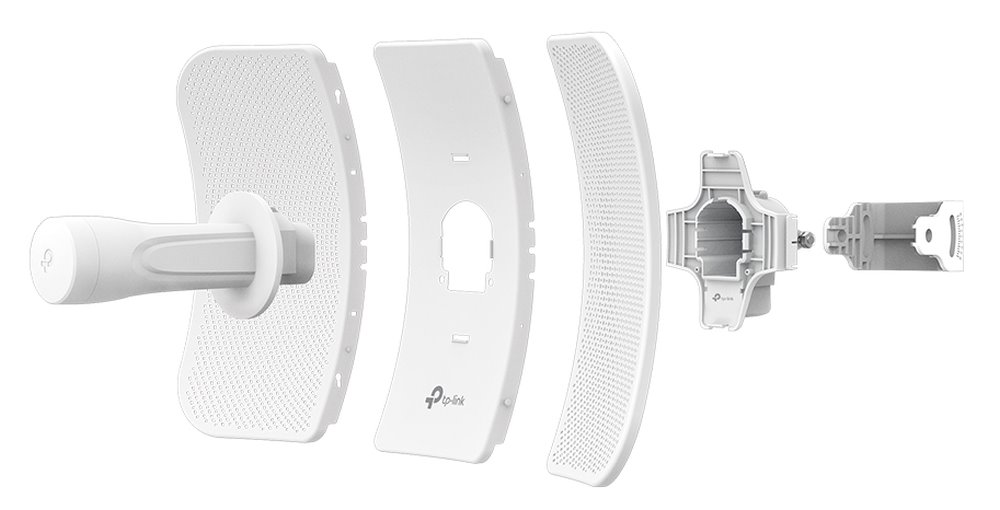

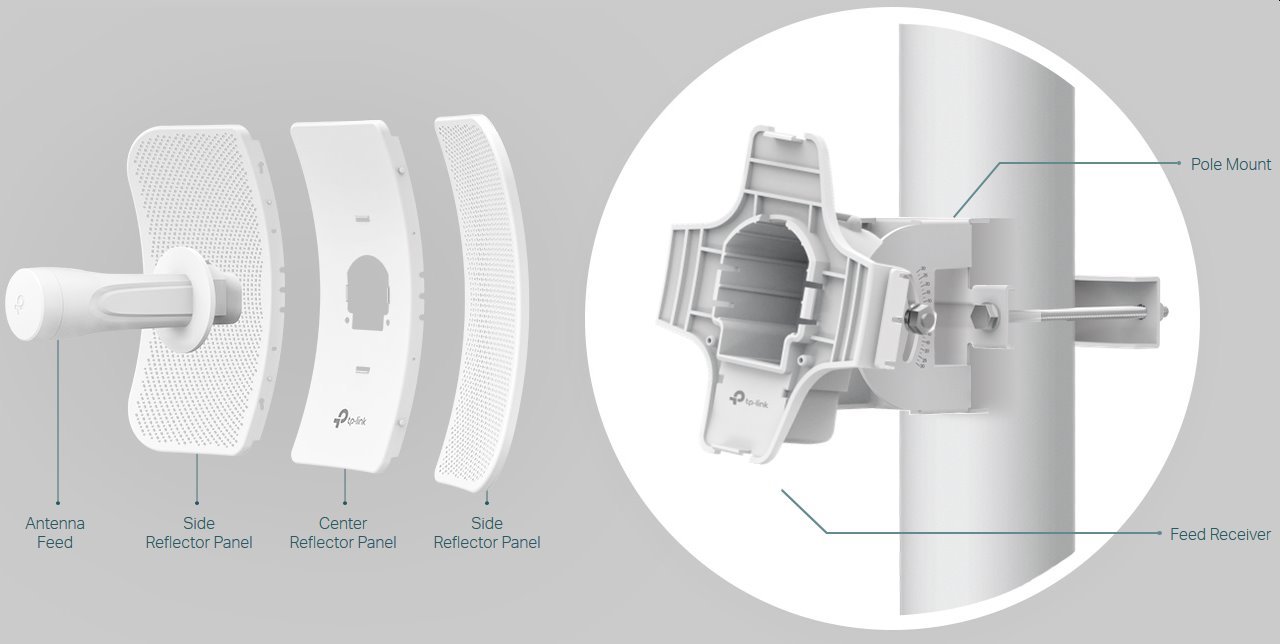

Stable Structural Design and Flexible Installation

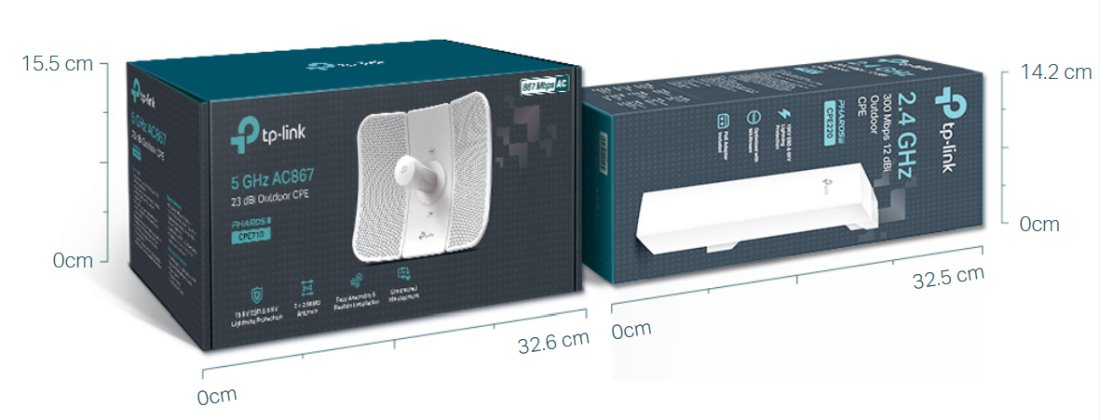

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

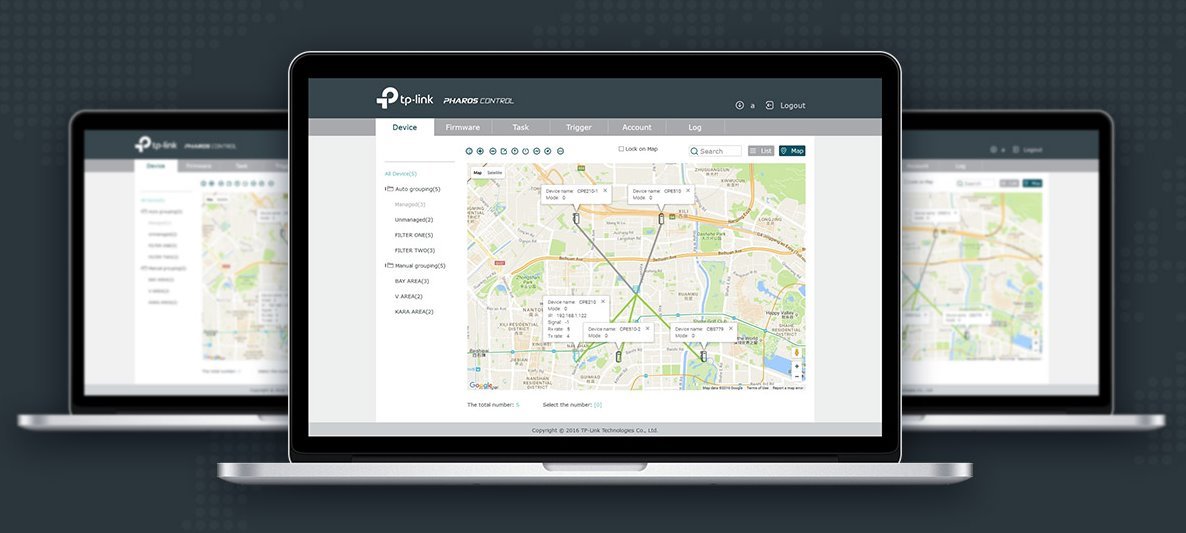

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Package contains
Download
DatasheetGPSR
