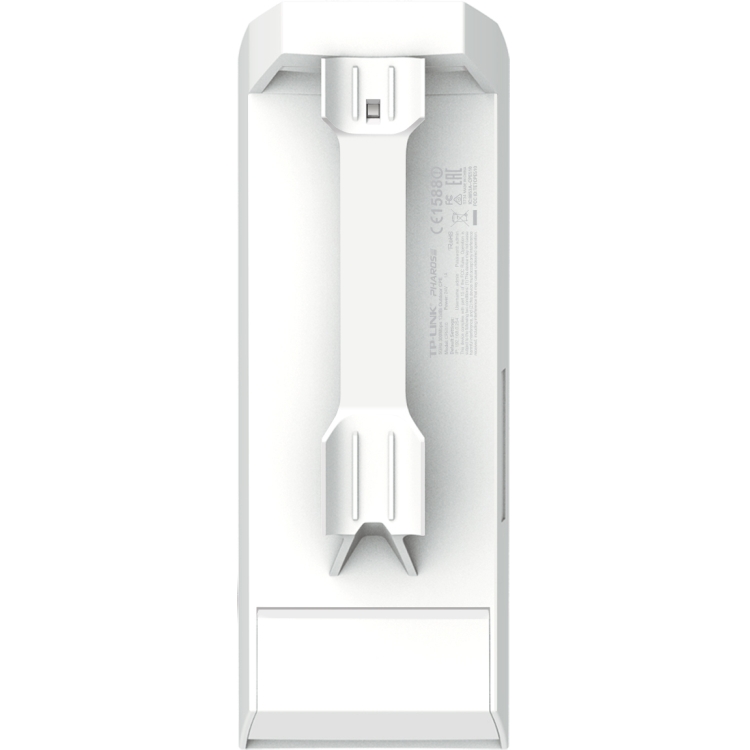

TP-Link CPE510 Outdoor CPE, 5GHz, 13dBi, 300Mbps
TP-Link CPE510 Outdoor CPE, 5GHz, 13dBi, 300Mbps
×
0/0
Your price excl. VAT
53.62 EUR
| Recycling fee | 0.04 EUR |
|---|---|
| Your price with RF | 53.66 EUR |
| Your price incl. VAT (21%) | 64.93 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
20 pcs.
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10410531 | |
| Part No. | CPE510 | |
| Warranty | 36 months | |
ETH-SP-G2
9.99 EUR excl. VAT
12.17 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
CT-290-48-B
6.33 EUR excl. VAT
7.66 EUR incl. VAT
In Stock
OFTP5E24-MSC
130.14 EUR excl. VAT
157.47 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
Tx power 5GHz [dBm]:
27
Security:
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
13
Connectors and Interfaces
LAN speed:
(2) 10/100Mbps
Power
Power over Ethernet:
16 .. 27V DC
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
13
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 70
Width [mm]:
79
Height [mm]:
224
Depth [mm]:
60
Hardware
CPU:
MIPS 74Kc
CPU frequency [MHz]:
560
Software
Operating mode:
Bridge, Client, Repeater, AP Router, Access Point, Client Router (wisp)
Default IP address:
192.168.0.254
Default login and password:
admin / admin
Product description
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30°C to +70°C.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
