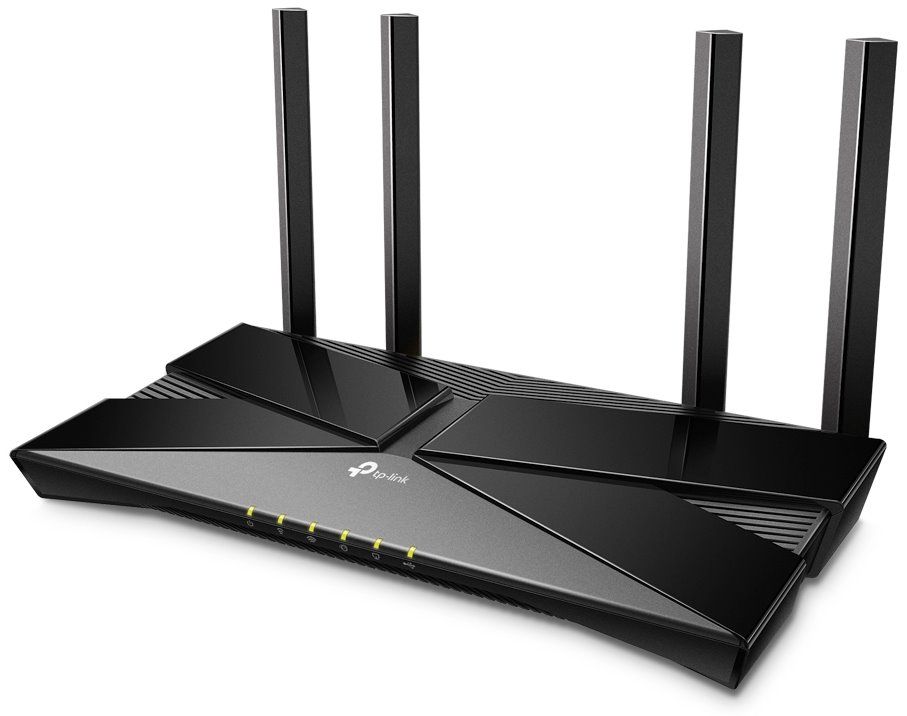

TP-Link Archer AX20 Dual-Band Wi-Fi 6 Router
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ax, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
30
Tx power 5GHz [dBm]:
30
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
4 x 4
5GHz MIMO:
4 x 4
Type of antenna:
Fixed
Fixed antennas:
4
Connectors and Interfaces
WAN speed:
(1) 10/100/1000Mbps
LAN speed:
(4) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
USB:
Yes
Power
Power via connector/terminal:
12V / 1,5A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset, WPS/WiFi, power
Operating temperature [°C]:
0 up to 40
Width [mm]:
260
Height [mm]:
39
Depth [mm]:
135
General
Technology and conveniences:
OneMesh
Software
Operating mode:
AP Router, Access Point
IPv6 support:
Yes
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Video
Product description

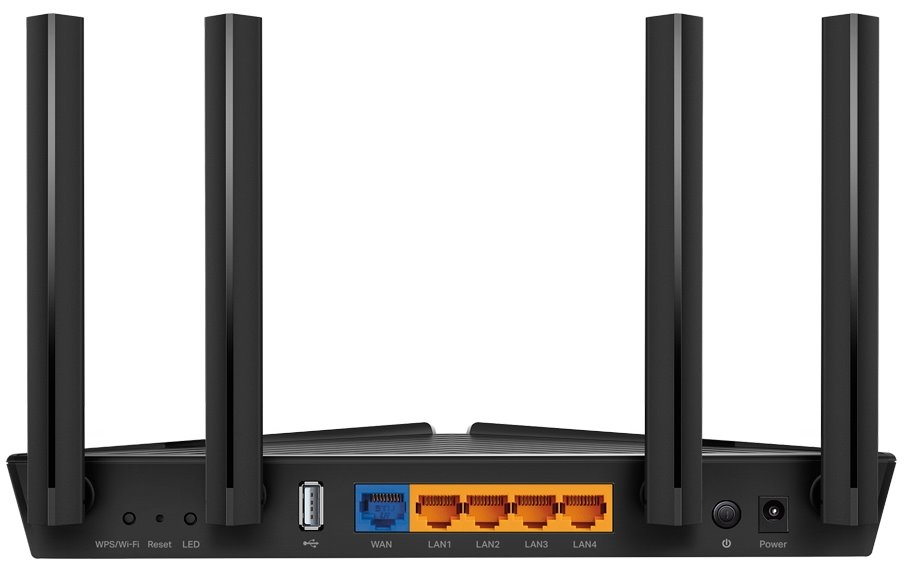

TP-Link Archer AX20 is a dual-band router from the new generation with support for the latest WiFi standard 802.11ax, including back support with 802.11a/b/g/n/ac. This standard allows you to communicate at up to an incredible 574Mb/s (2.4GHz) and 1201Mb/s (5GHz) at 2x2 MIMO. For better WiFi coverage, the router has Beamforming technology, independent Front-End Module, and four high-gain antennas combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices. In terms of connector equipment, the router has four Gigabit LANs, a Gigabit WAN port and one USB port for sharing files on the network or creating private cloud storage.
Dual-Band Wi-Fi 6 Up to 1.8 Gbps
Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.
Powerful Processing for Minimal Latency
A powerful 1.5 GHz quad-core CPU generates minimal latency within your network even under heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Package contains
