Teltonika TSW101 Industrial PoE Unmanaged Switch
Your price excl. VAT
58.48 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 58.55 EUR |
| Your price incl. VAT (21%) | 70.85 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Teltonika |
|
|---|---|---|
| Code | 17720074 | |
| Part No. | TSW101000000 | |
| Warranty | 24 months | |
PR5MEC24
10.11 EUR excl. VAT
12.23 EUR incl. VAT
Expected 30.12.2024
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(5) 10/100/1000Mbps
Power
Power type:
DC terminal
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
4
PoE budget [W]:
60
Max. power consumption [W]:
2,3
Power via connector/terminal:
9 .. 30V DC
Physical characteristics
Protection class:
IP30
Design:
Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
-40 up to 75
Width [mm]:
115
Height [mm]:
32
Depth [mm]:
95
General
Switchning capacity [Gbps]:
10
MAC address table:
2000
Video
Product description

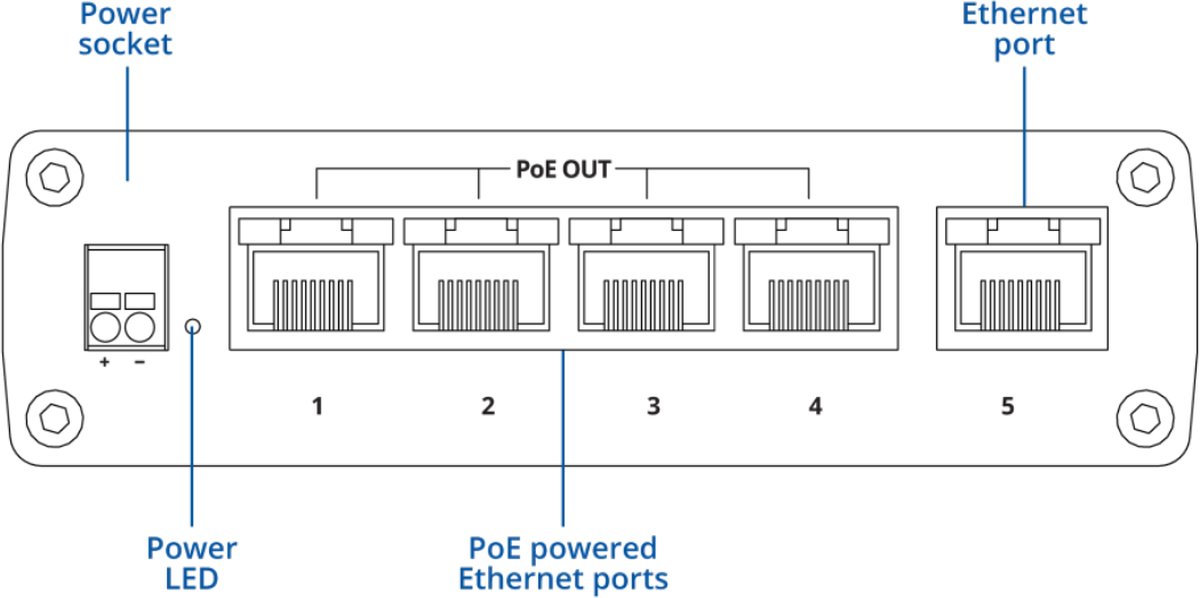

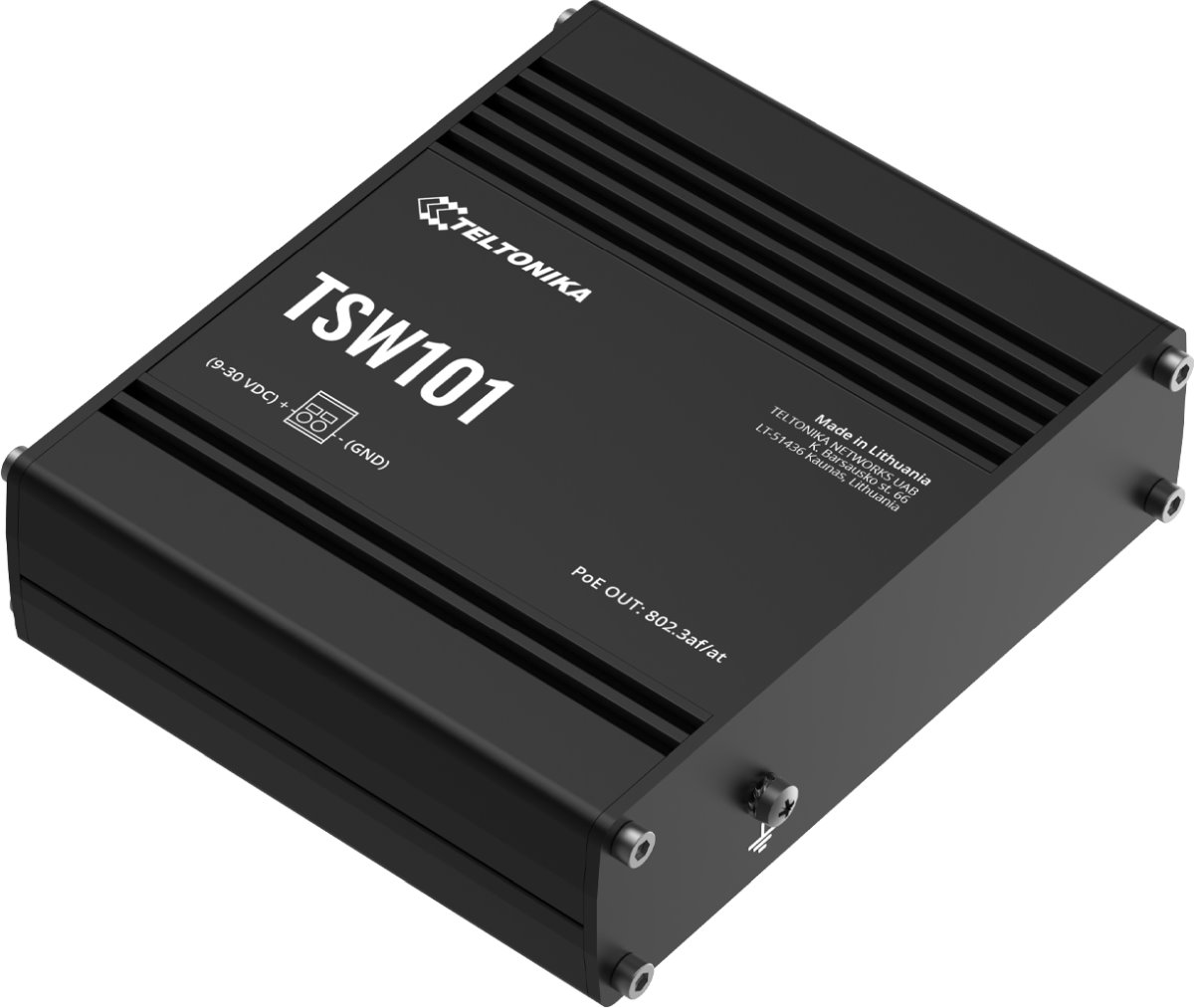

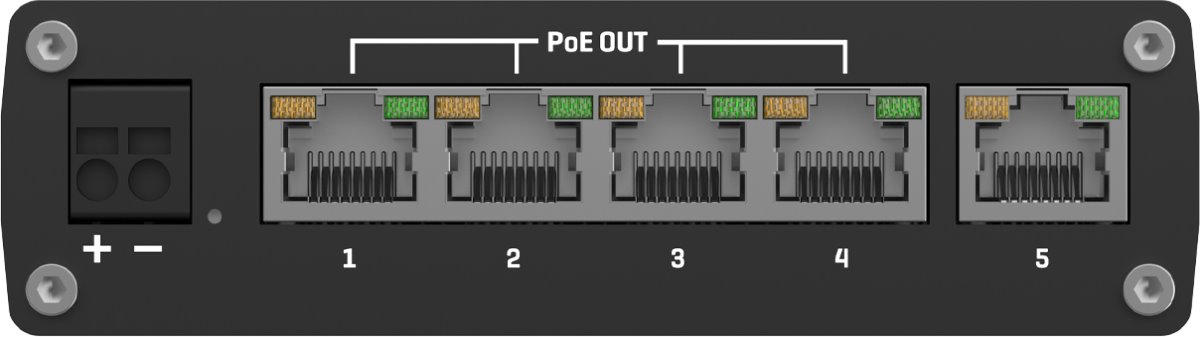

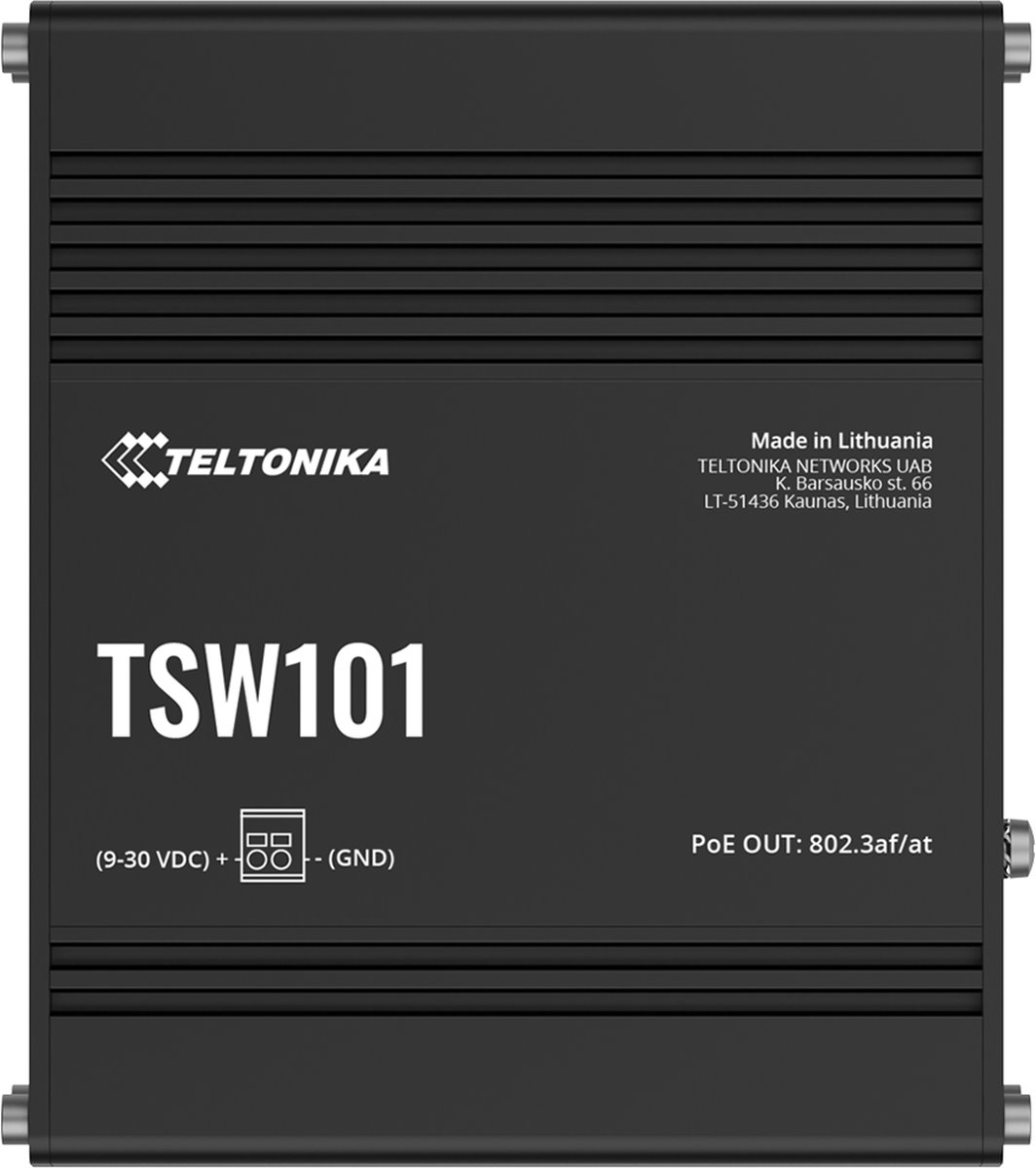

TSW101 is an industrial POE Switch from Teltonika Networks with aluminum body, passive cooling, without management and after buying the kit it is possible to install the switch on the DIN bar. The device offers 5 LAN ports with a speed of 10/100/1000 Mbps and with 802.3af/at Poe (30 W/port) on the first four ports with a total poe budget 60 W. The power supply is solved by a 2-pin terminal block with input voltage 9 to 30 V.

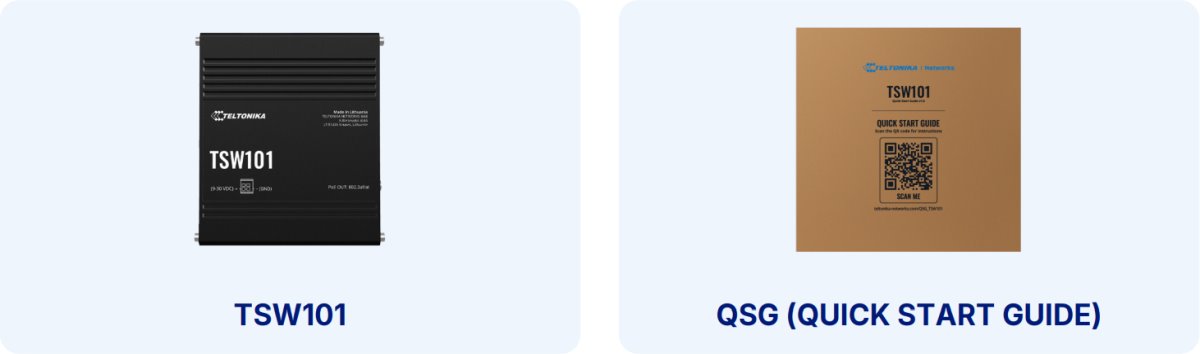

Package content
Download
Datasheet Quick Start GuideGPSR
