Teltonika TSW040 8-port PoE+ Switch
Your price excl. VAT
43.77 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 43.84 EUR |
| Your price incl. VAT (21%) | 53.05 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Teltonika |
|
|---|---|---|
| Code | 17720128 | |
| Part No. | TSW04000B000 | |
| Warranty | 24 months | |
PR317EUA
14.26 EUR excl. VAT
17.34 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100Mbps
Power
Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
240
Max. power consumption [W]:
246
Power via connector/terminal:
7 .. 57V DC
Physical characteristics
Design:
DIN rail, Industry
Chassis design:
Metal
Operating temperature [°C]:
-40 up to 75
Weight [g]:
280
Width [mm]:
113
Height [mm]:
41
Depth [mm]:
75
General
MAC address table:
2000
Jumbo frame [Bytes]:
9216
Product description

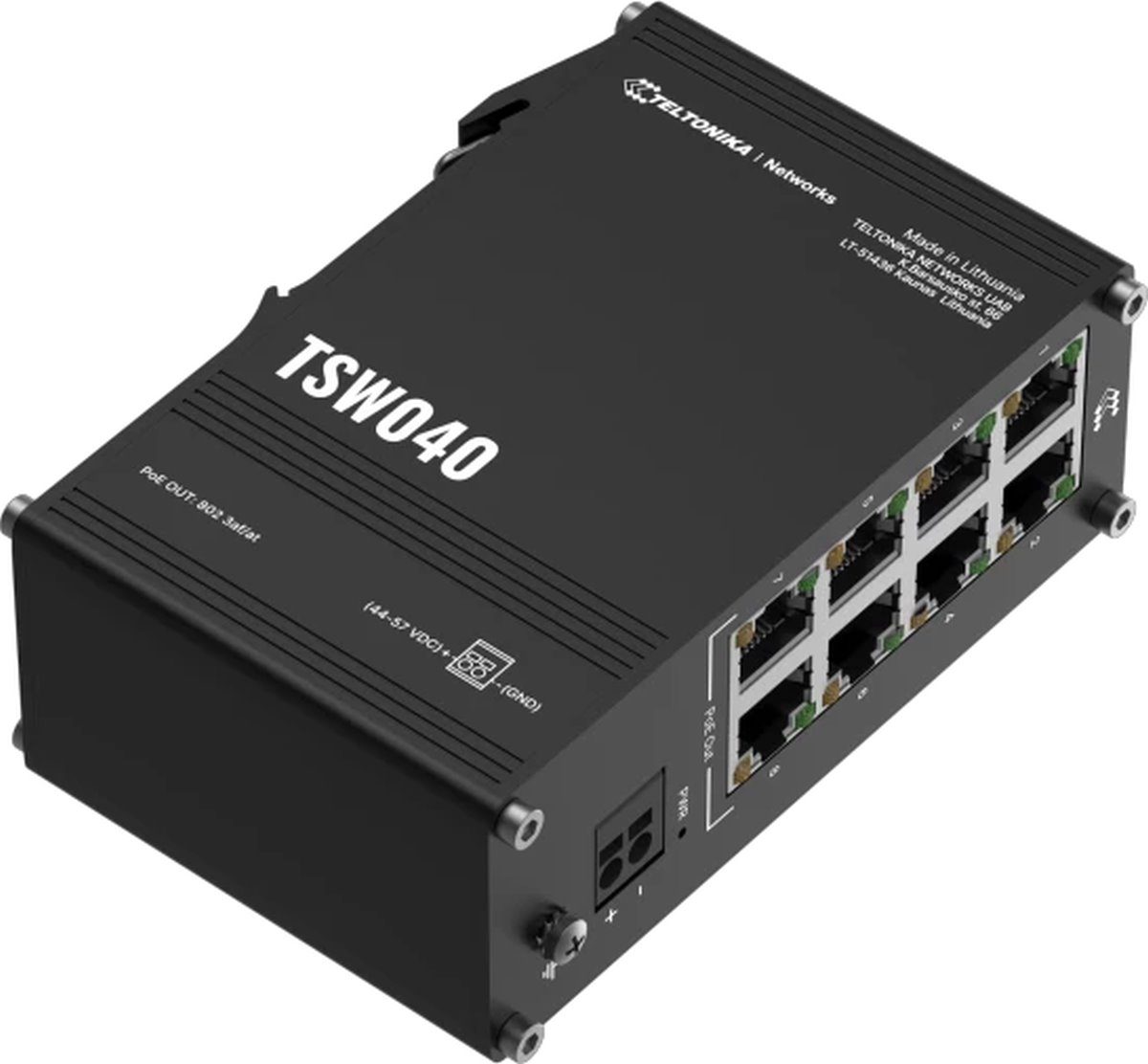

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
Note that TSW040 PoE ports works properly when switch is powered using PSU, which can supply 44-57 VDC. If TSW040 switch is powered with voltages ranging from 7 VDC to 43 VDC, it will work as standard switch, without PoE capabilities.
Package contents
Download
Datasheet Link to Quick Start Guide Link to User ManualGPSR
