Teltonika TRB145 LTE RS485 Gateway

Teltonika TRB145 LTE RS485 Gateway
Teltonika TRB145 LTE RS485 Gateway
×
0/0
Teltonika TRB145 LTE RS485 Gateway
Teltonika TRB145 LTE RS485 Gateway
Teltonika TRB145 LTE RS485 Gateway
Teltonika TRB145 LTE RS485 Gateway

Your price excl. VAT
107.99 EUR
Recycling fee 0.07 EUR
Your price with RF 108.06 EUR
Your price incl. VAT (21%) 130.75 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

Teltonika

Code17700202
Part No.TRB145003000
Warranty 24 months
  • Related products15
Teltonika DIN rail kit
PR5MEC00

6.01 EUR excl. VAT
7.27 EUR incl. VAT
In Stock
Teltonika Compact DIN rail kit
PR5MEC11

3.12 EUR excl. VAT
3.78 EUR incl. VAT
In Stock
Teltonika Surface Mounting Kit
PR5MEC12

3.20 EUR excl. VAT
3.87 EUR incl. VAT
In Stock
Teltonika Automotive power supply, 4 pin
PR2AM20M

6.60 EUR excl. VAT
8.08 EUR incl. VAT
In Stock
Teltonika 4 pin power cable with screw terminal, 2m
PR2FK20M

6.56 EUR excl. VAT
7.94 EUR incl. VAT
In Stock
Teltonika RMS - Remote administration system
RMS

1.93 EUR excl. VAT
2.34 EUR incl. VAT
In Stock
Teltonika Mobile SMA Antenna (screw on)
PR1US440

3.56 EUR excl. VAT
4.55 EUR incl. VAT
In Stock
Teltonika Mobile Magnetic SMA Antenna
PR1KS210

6.01 EUR excl. VAT
7.51 EUR incl. VAT
In Stock
Teltonika Mobile Adhesive SMA Antenna
PR1AS420

5.46 EUR excl. VAT
6.85 EUR incl. VAT
In Stock
Teltonika 4-pin to 4-pin power cable, 1m
PR2PP10B

8.42 EUR excl. VAT
10.19 EUR incl. VAT
In Stock
Teltonika PR5MEC21 - 4-Pin Power Adapter With I/O Access
PR5MEC21

6.64 EUR excl. VAT
8.12 EUR incl. VAT
In Stock
Teltonika PR2VM20M SMA Cable Extension
PR2VM20M

3.80 EUR excl. VAT
4.60 EUR incl. VAT
In Stock
Teltonika PR3PUPS3 Universal power supply, 9W
PR3PUPS3

7.79 EUR excl. VAT
9.51 EUR incl. VAT
In Stock
Teltonika Combo MIMO Mobile Roof SMA LTE Antenna
PR1KCL25

10.76 EUR excl. VAT
13.26 EUR incl. VAT
In Stock
Teltonika 2x3 Pin connector
PR4RS06K

1.63 EUR excl. VAT
1.97 EUR incl. VAT
In Stock
show moreshow less 10
Parameters
Download
Video

Product description

Industrial GSM/GPRS Gateway Board TRB145 is equipped with an RS485 Interface, Digital Inputs/Outputs and a microUSB port.

TRB145 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over RS485 interface.

The gateway is engineered to be used in Industrial applications, therefore, it has a wide range of software features such as SMS control, Firewall, OpenVPN, IPsec, RMS and FOTA support.

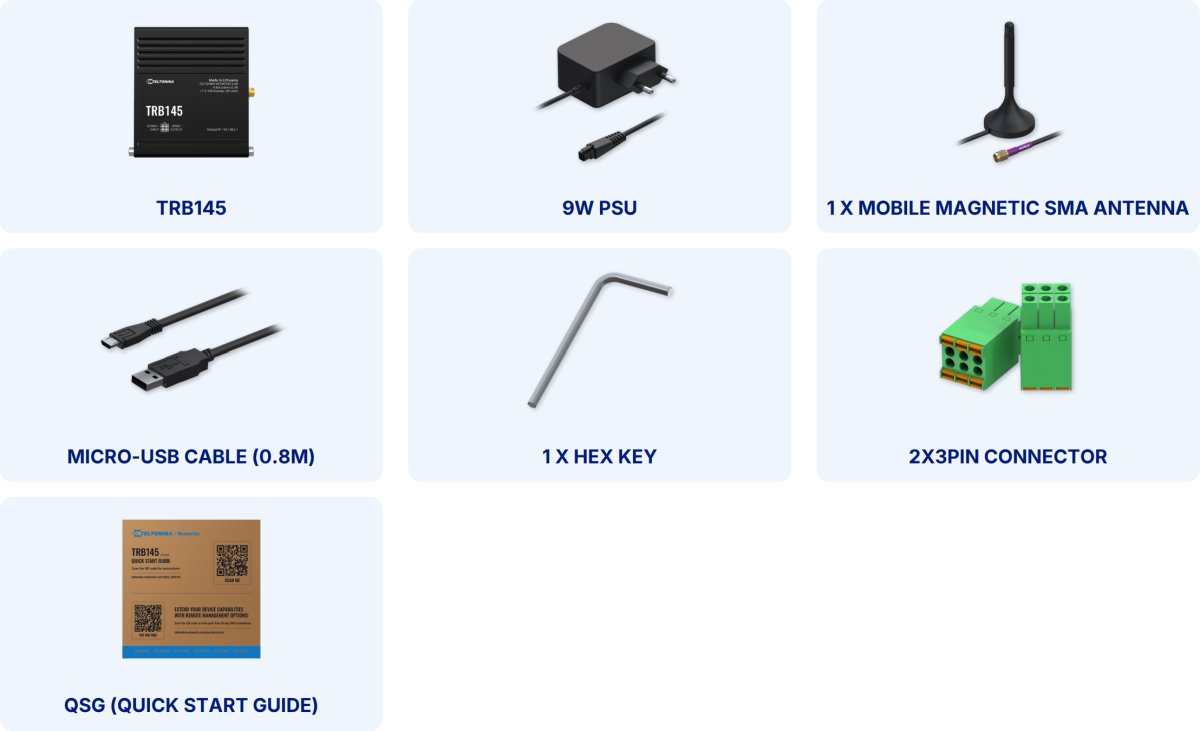

Package contents

  • Device
  • LTE antenna with cable
  • Power adapter (EU)
  • USB cable

Download

Datasheet

Bussines information

Przemyslaw Luczkowski, +48 733 221 111 , przemek.luczkowski@discomp.cz

Technical parameters

Connectors and Interfaces

RF connectors: (1) SMA female
Serial port: RS-485
SIM slot: Yes
SIM slots quantity: 1
USB: Yes

Power

Power type: DC connector
Max. power consumption [W]: 5
Power via connector/terminal: 9 .. 30V DC

Physical characteristics

Buttons: Reset
Operating temperature [°C]: -40 up to 75
Weight [g]: 150
Width [mm]: 60
Height [mm]: 18
Depth [mm]: 70

Hardware

CPU: ARM Cortex A7
CPU frequency [MHz]: 1200
Internal storage [MB]: 512
RAM [MB]: 128

Software

Operating system: RutOS (OpenWrt based Linux OS)
