Teltonika TCR100 4G Wi-Fi Router

Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
×
0/0
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router
Teltonika TCR100 4G Wi-Fi Router

Your price excl. VAT
206.44 EUR
Recycling fee 0.07 EUR
Your price with RF 206.51 EUR
Your price incl. VAT (21%) 249.88 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

Teltonika

Code17700231
Part No.TCR100000000
Warranty 24 months
  • Related products6
Teltonika PR5MEC21 - 4-Pin Power Adapter With I/O Access
PR5MEC21

6.63 EUR excl. VAT
8.11 EUR incl. VAT
In Stock
Teltonika PR2VM20M SMA Cable Extension
PR2VM20M

3.79 EUR excl. VAT
4.59 EUR incl. VAT
In Stock
Teltonika PR5MEC19 SIM Card Adapter Kit
PR5MEC19

1.30 EUR excl. VAT
1.57 EUR incl. VAT
In Stock
Teltonika 4-pin to 4-pin power cable, 1m
PR2PP10B

8.41 EUR excl. VAT
10.18 EUR incl. VAT
In Stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video

Product description

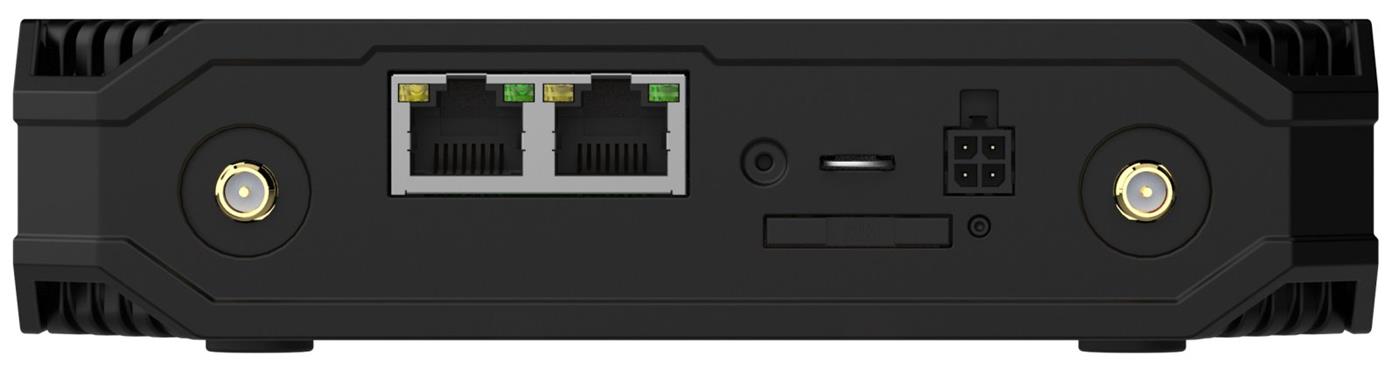

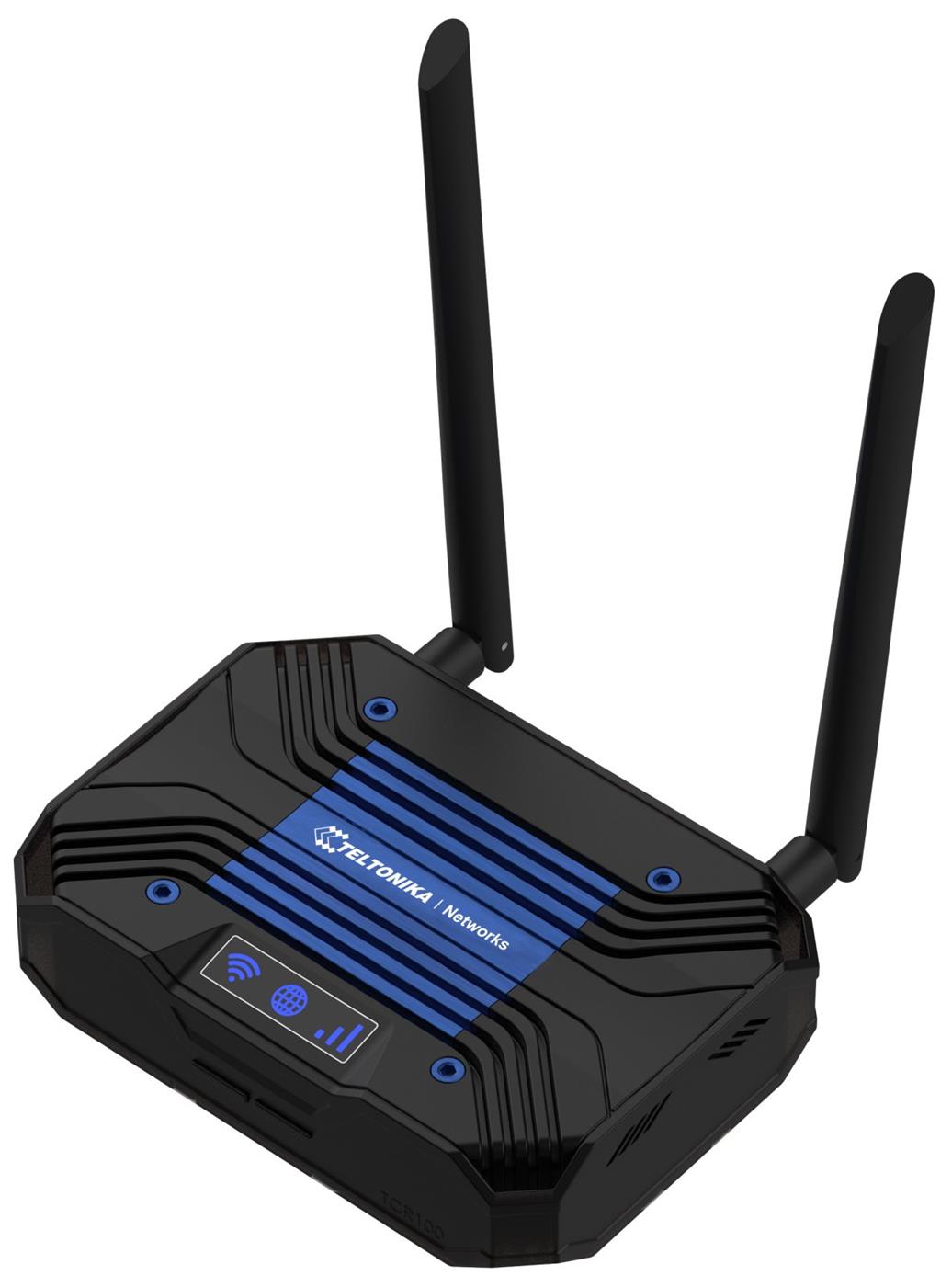

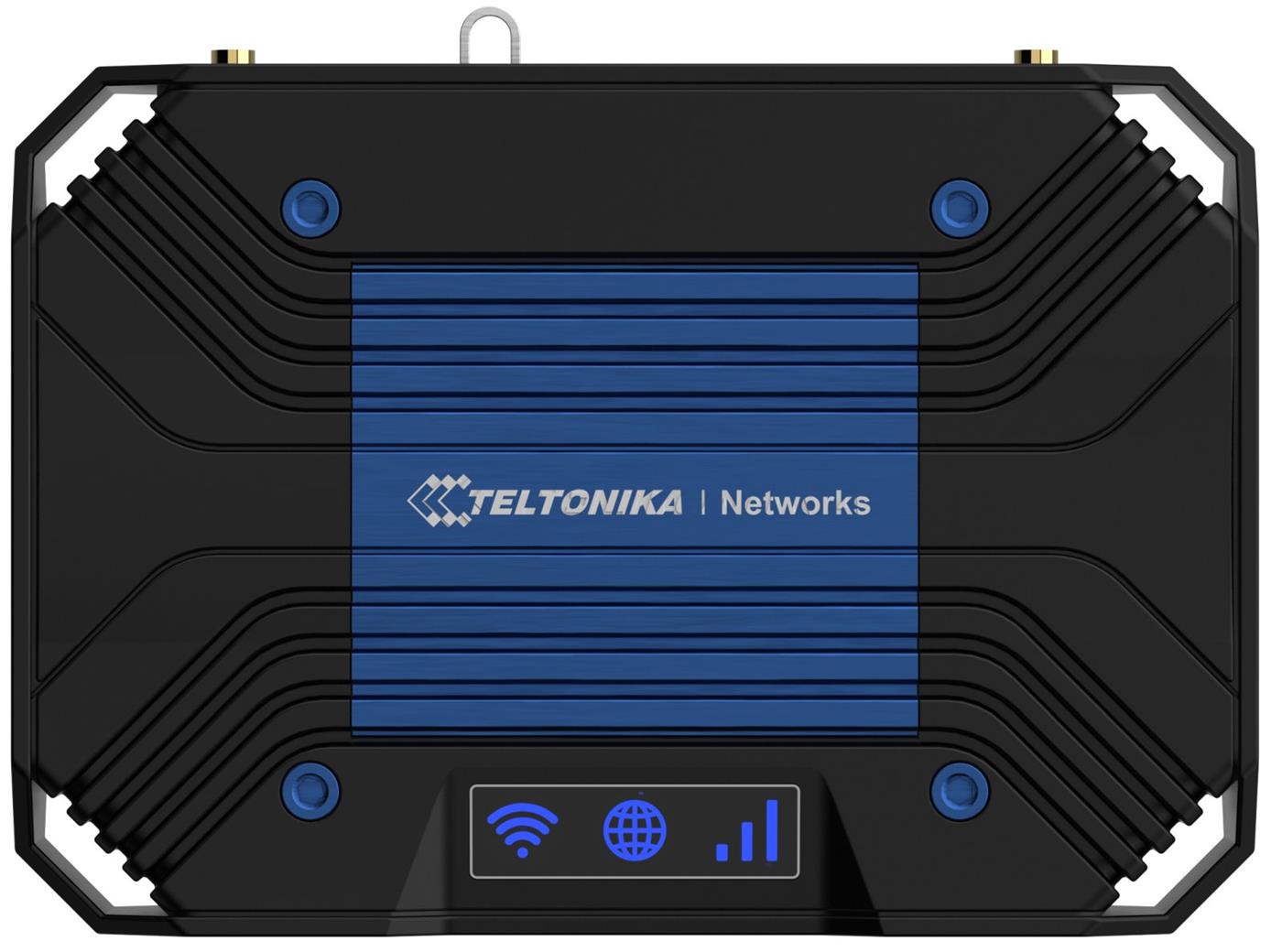

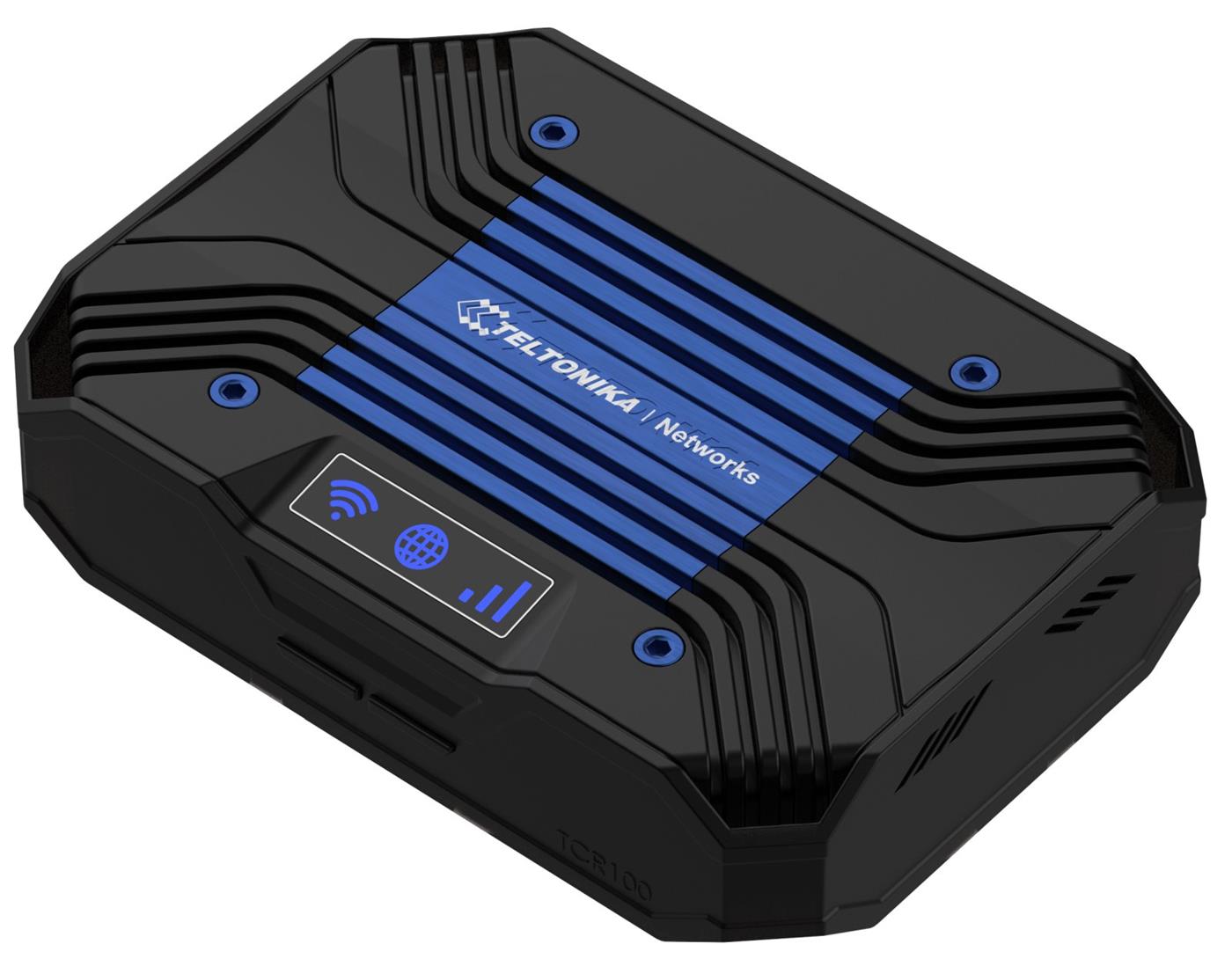

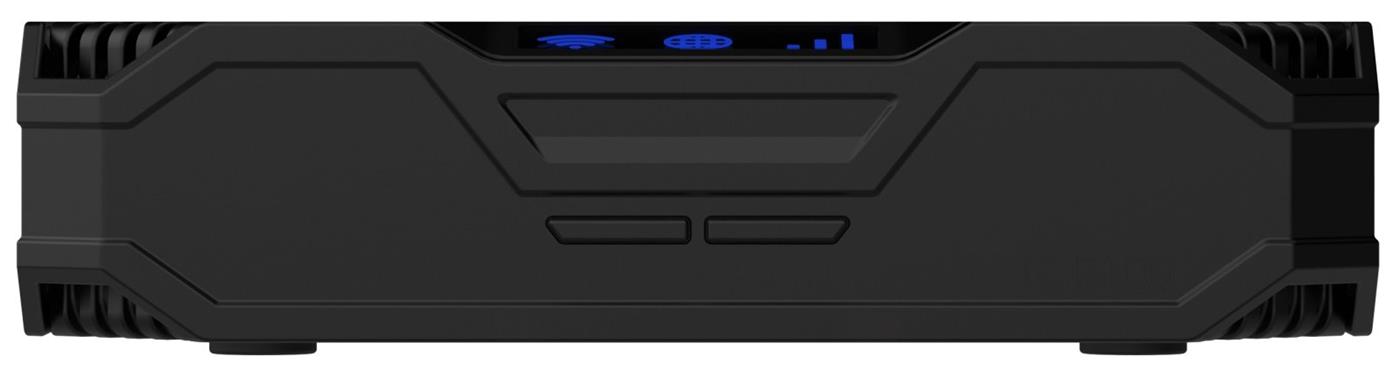

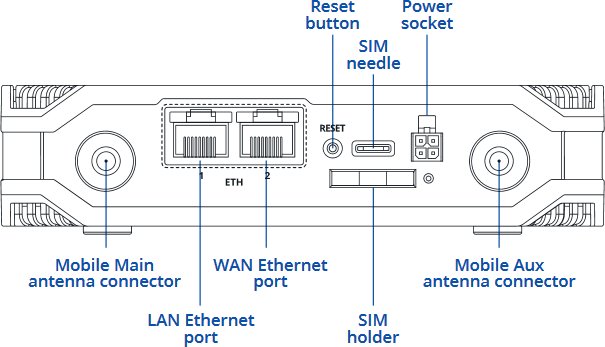

TCR100 is a durable and robust home 4G/LTE Wi-Fi router, which is equipped with two Ethernet ports, the second of which has the option of switching to WAN, a SIM card slot, reset buttons/ WPS/WiFi, 4-pin automotive power connector with a voltage of 9 to 30 V DC and LED signaling of the strength of the 4G/LTE signal.

A powerful operating system with an intuitive user interface based on OpenWrt enables endless configuration options. Thanks to the 4G LTE-A technology, you can use the TCR100 as a primary or backup connection source.

Package contents

  • Device
  • (2) GSM antenna
  • UTP cable
  • Power adapter 12 V/1 A

Bussines information

Przemyslaw Luczkowski, +48 733 221 111 , przemek.luczkowski@discomp.cz

Technical parameters

Wireless features

Dual band: Yes
Wireless frequency: 2.4 + 5 GHz (dual band), LTE
WiFi standards: 802.11ac, 802.11n, 802.11b/g
Transmission speed - 5GHz [Mb/s]: 433
Transmission speed - 2.4GHz [Mb/s]: 300
Tx power 2.4GHz [dBm]: 20
Tx power 5GHz [dBm]: 23
Security: WEP, WPA, WPA2, WPA3
2.4GHz MIMO: 2 x 2
5GHz MIMO: 1 x 1 SISO
Type of antenna: Built-in, Detachable
Internal antennas: 3
Detachable antennas: 2
Antenna gain [dBi]: 5

Connectors and Interfaces

RF connectors: (2) SMA female
LAN speed: (2) 10/100Mbps (1x LAN/WAN)
SIM slot: Yes
SIM slots quantity: 1

Power

Power type: DC connector
Max. power consumption [W]: 9,3
Power via connector/terminal: 9 .. 30V DC

Physical characteristics

Purpose: Indoor
Buttons: Reset/WPS, WiFi
Operating temperature [°C]: -40 up to 75
Weight [g]: 376
Width [mm]: 150
Height [mm]: 37
Depth [mm]: 105

Hardware

CPU: MIPS 24Kc
CPU frequency [MHz]: 650
Internal storage [MB]: 16
RAM [MB]: 128

Software

VLAN support: Yes
QoS support: Yes
VPN support: Yes
Supported VPN: IPSec, OpenVPN
Operating mode: AP Router, 3G/4G Router
Features: VLAN, QoS, DHCP snooping
Operating system: RutOS (OpenWrt based Linux OS)
IPv6 support: Yes
Default IP address: 192.168.1.1
Default login and password: admin / (preset password, see cover)
