Teltonika RUTXR1 Enterprise rack-mountable SFP/LTE router
Teltonika RUTXR1 Enterprise rack-mountable SFP/LTE router
×
0/0
Special offer
Your price excl. VAT
372.48 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 372.55 EUR |
| Your price incl. VAT (21%) | 450.79 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Teltonika |
|
|---|---|---|
| Code | 17700223 | |
| Part No. | RUTXR1000000 | |
| Warranty | 24 months | |
PR5MEC21
6.63 EUR excl. VAT
8.11 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Connectors and Interfaces
RF connectors:
(2) SMA male + (2) RP-SMA male
LAN speed:
(4) 10/100/1000Mbps + (1) 10/100/1000Mbps WAN
Optical interfaces:
(1) 1000Mbps
SIM slot:
Yes
SIM slots quantity:
2
USB:
Yes
Power
Power type:
DC connector
Max. power consumption [W]:
18
Power via connector/terminal:
9 .. 50V DC
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
1050
Width [mm]:
272
Height [mm]:
43
Depth [mm]:
123
Hardware
CPU:
Quad-core ARM Cortex A7
CPU frequency [MHz]:
717
Internal storage [MB]:
256
RAM [MB]:
256
Software
Operating system:
RutOS (OpenWrt based Linux OS)
Default IP address:
192.168.1.1
Default login and password:
admin / admin01
Product description

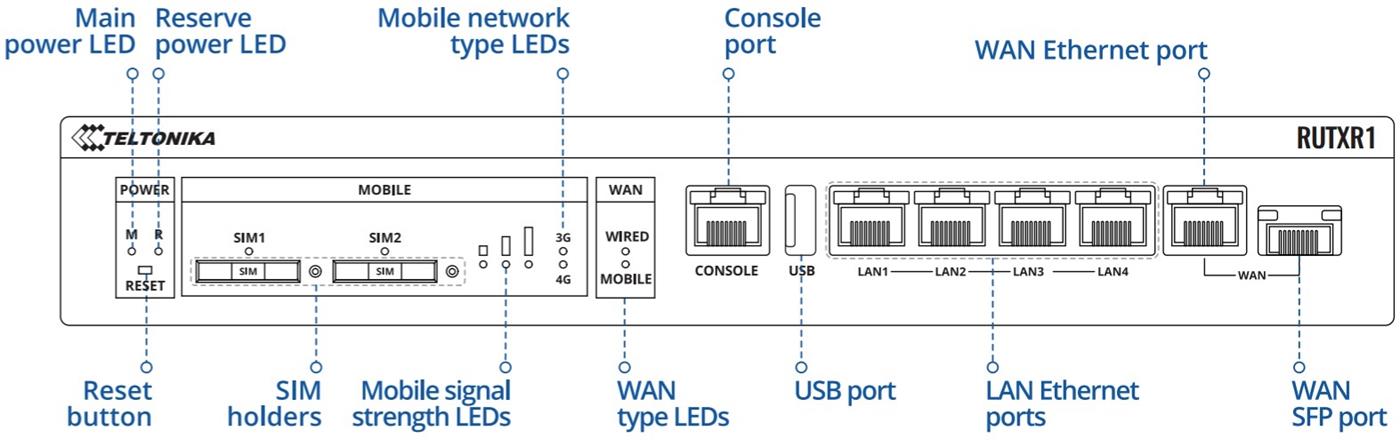

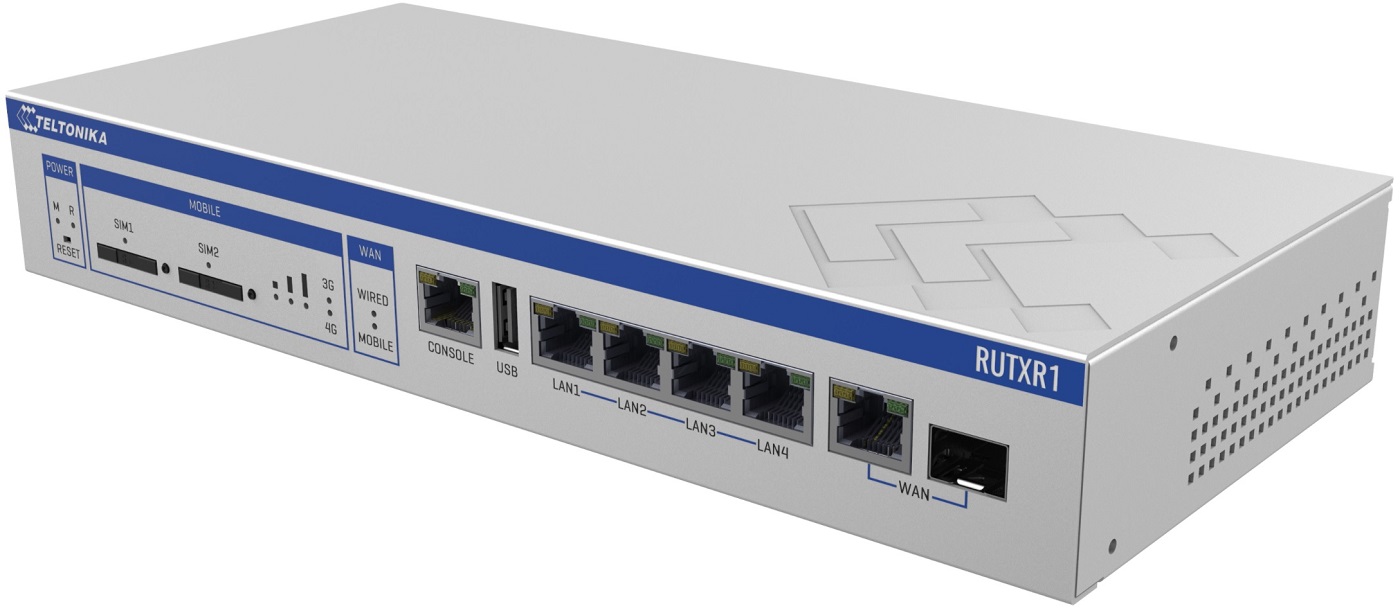

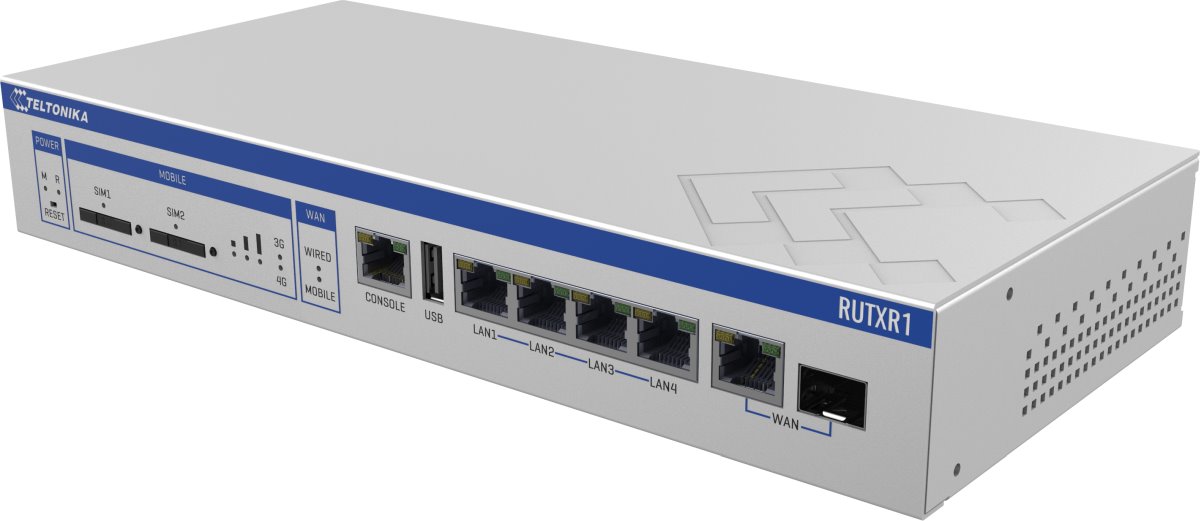

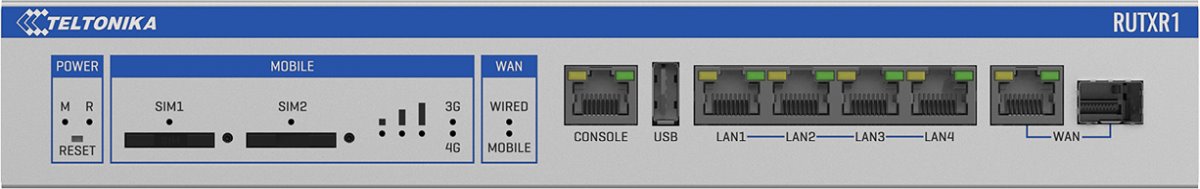

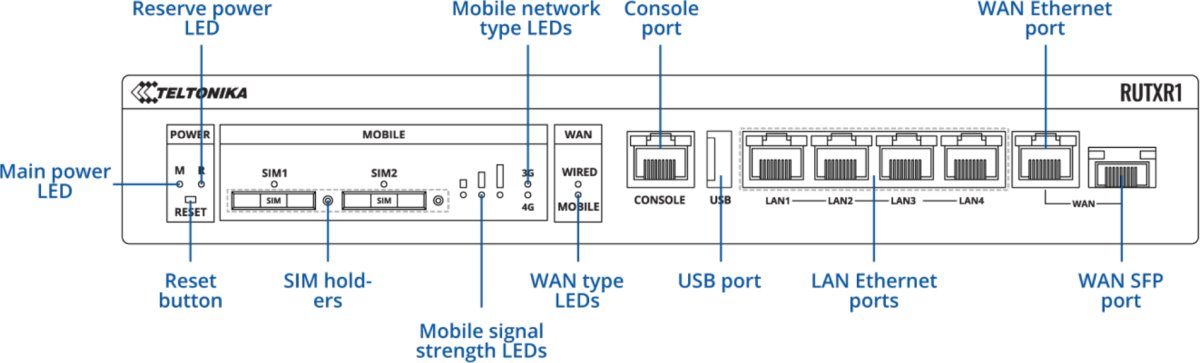

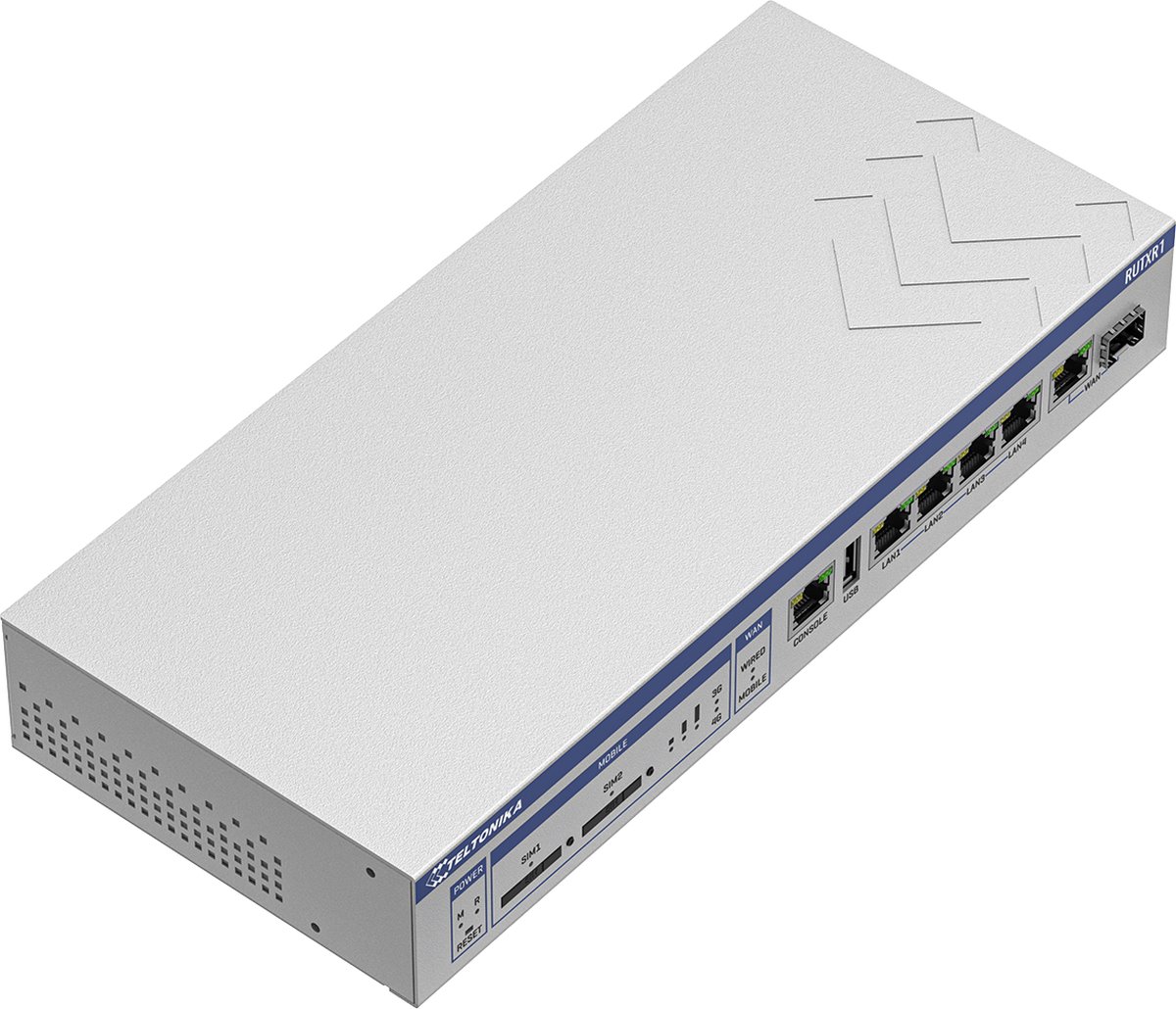

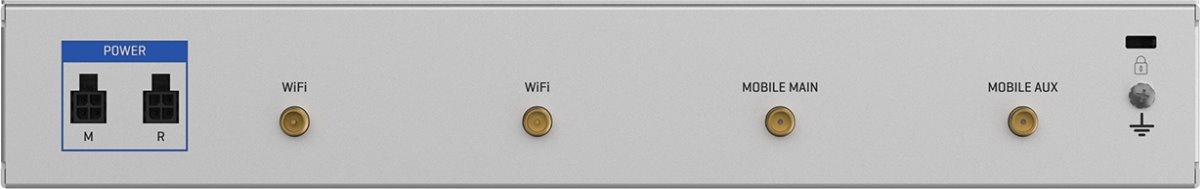

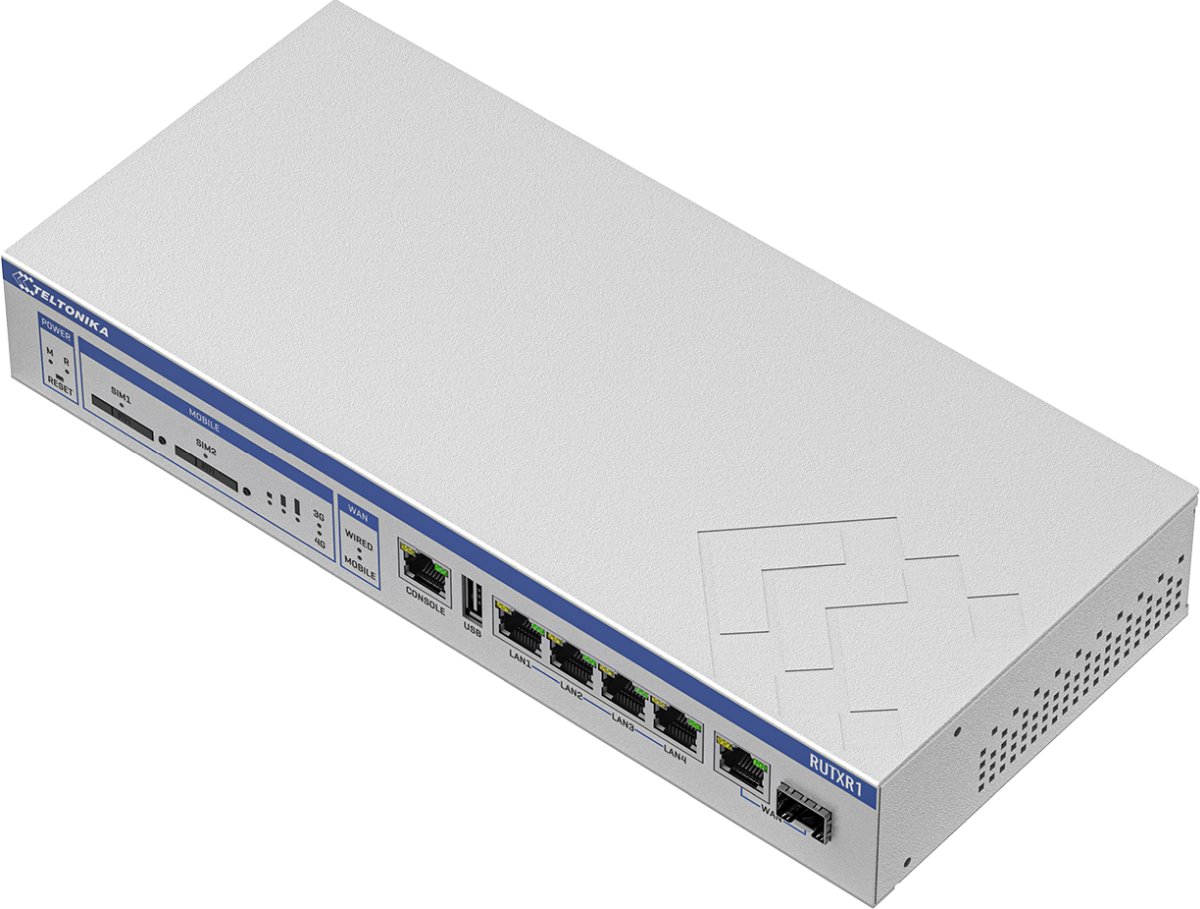

RUTXR1 is a rack-mountable LTE Advanced (LTE-A) router equipped with 5x Gigabit Ethernet ports, WiFi, Dual-SIM, USB port, Console port, redundant power supplies, SFP port and RutOS software for advanced networking solutions.

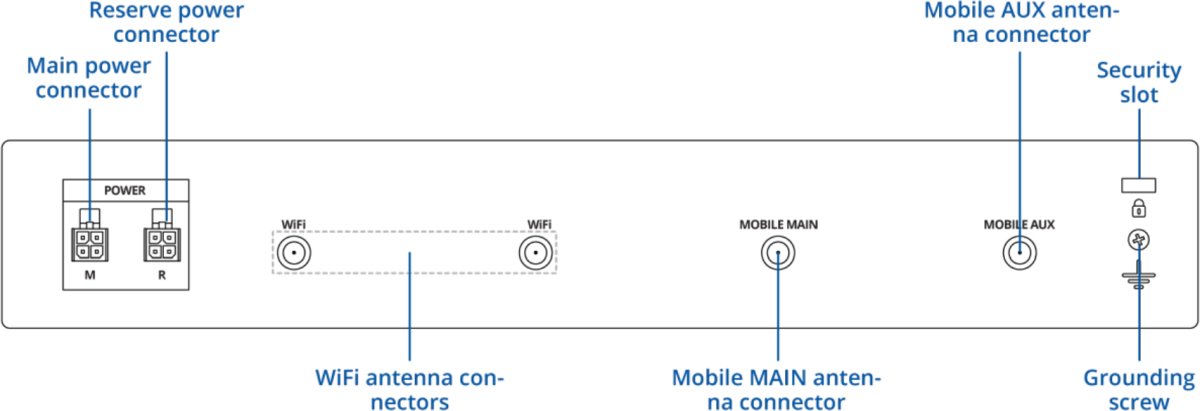

There is the WAN SFP port for optical connection. Additional peripherals or storage can be connected using the USB 2.0 port. The CPU Quad Core ARM Cortex A7 with the clock rate of 717MHz and 256MB DDR3 RAM ensure smooth operation. Power is provided by 12V power adapter. However, it is possible to connect two sources to the device, with the second being intended as a backup in the event of blackout.

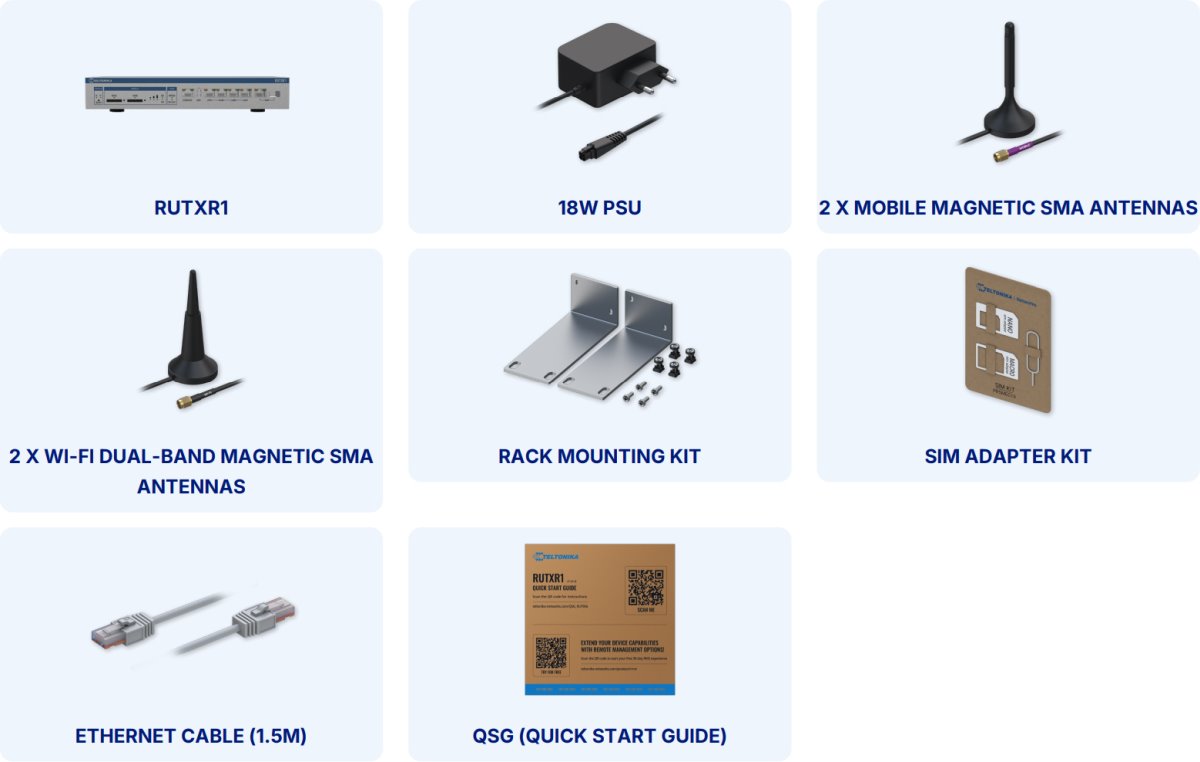

Package contents
