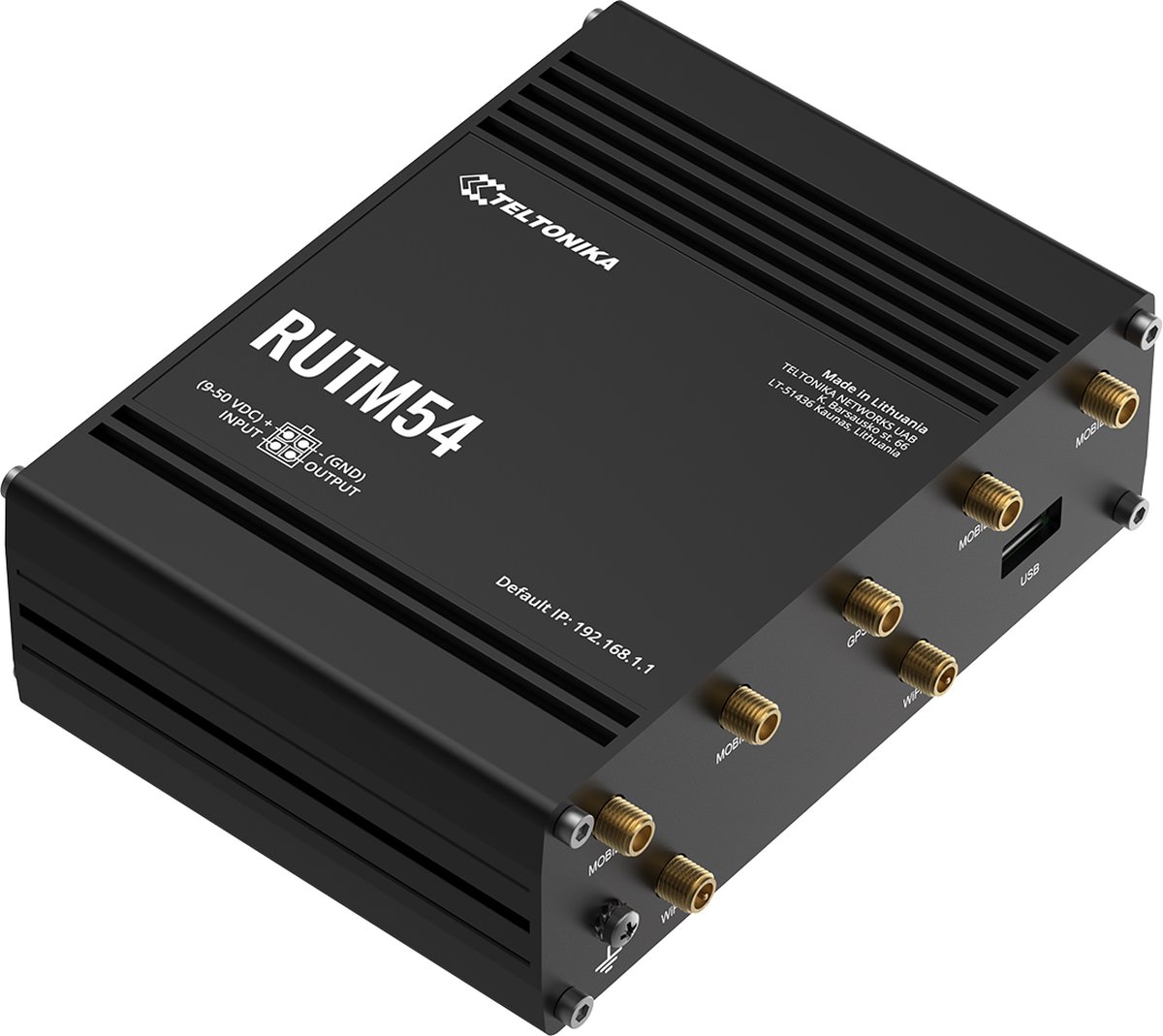

Teltonika RUTM54 Telit 5G Router
Your price excl. VAT
585.67 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 585.74 EUR |
| Your price incl. VAT (21%) | 708.75 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Teltonika |
|
|---|---|---|
| Code | 17720161 | |
| Part No. | RUTM54000000 | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band), LTE, 3G (GSM), 4G (GSM), 5G (GSM)
WiFi standards:
802.11n, 802.11ac, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
28
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Detachable antennas:
7
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (5) 850 MHz, (12) 700 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (32) 1500 MHz, (14) 700 MHz
5G bands support:
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n66) 1700 MHz
Connectors and Interfaces
RF connectors:
(2) RSMA female, (1) SMA female, (4) SMA female
LAN speed:
(4) 10/100/1000Mbps + (1) 10/100/1000Mbps WAN
SIM slot:
Yes
SIM slots quantity:
2
USB:
Yes
GPS modul:
Yes
Power
Power over Ethernet:
9 .. 50V DC
Power type:
DC connector, PoE
Max. power consumption [W]:
14
Power via connector/terminal:
9 .. 50V DC
Physical characteristics
Design:
On the wall, Desktop, DIN rail
Buttons:
Reset
Operating temperature [°C]:
-40 up to 75
Weight [g]:
530
Width [mm]:
132
Height [mm]:
44
Depth [mm]:
95
Hardware
CPU:
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
CPU frequency [MHz]:
880
Internal storage [MB]:
256
RAM [MB]:
256
Software
Supported VPN:
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE, Tinc
Operating mode:
Client, AP Router, Access Point, Cellular router
Management:
Web management, SSH, Teltonika RMS
Operating system:
RutOS (OpenWrt based Linux OS)
IPv6 support:
Yes
Default IP address:
192.168.1.1
Default login and password:
admin / (preset password, see label/engraving)
Product description
The RUTM54 is a high-performance, dual-SIM and eSIM 5G router, ideal for data-intensive applications that demand reliable, high-speed connectivity. With a European Telit 5G modem, the RUTM54 delivers exceptional global connectivity and consistent performance. Its 5 Gigabit Ethernet ports and dual-band Wi-Fi provide robust redundancy, while auto-failover ensures uninterrupted service. With backward compatibility to 4G and multiple interface options, the RUTM54 is designed for seamless expandability and future upgrades.
Key features
Package contents
Download
Datasheet Link to Quick Start Guide Link to User ManualGPSR
