Tachyon TNA-303X, Modular 60GHz PTP+PTMP
Tachyon TNA-303X, Modular 60GHz PTP+PTMP
×
0/0
New product
Your price excl. VAT
262.97 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 263.04 EUR |
| Your price incl. VAT (21%) | 318.28 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Tachyon Networks |
|
|---|---|---|
| Code | 10920003 | |
| Part No. | TNA-303X | |
| Warranty | 24 months | |
TNA-AK-100
40.79 EUR excl. VAT
49.44 EUR incl. VAT
In Stock
TNA-AK-150
50.63 EUR excl. VAT
61.35 EUR incl. VAT
In Stock
TNA-AK-300
57.67 EUR excl. VAT
69.87 EUR incl. VAT
In Stock
TNA-AK-S-45
95.64 EUR excl. VAT
115.81 EUR incl. VAT
In Stock
TNA-AK-S-90
122.36 EUR excl. VAT
148.14 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Channel bandwidth [MHz]:
1080, 2160
Transmission speed - 60GHz [Mb/s]:
2000
Output power 60GHz [dBm]:
38 (EIRP)
Elevation beam width (-6dB) [°]:
50
Azimuth beam width (-6dB) [°]:
90
Antenna gain [dBi]:
16
Connectors and Interfaces
LAN speed:
(1) 100/1000/2500Mbps + (1) 10/100/1000Mbps
Power
Power over Ethernet:
38 .. 52V DC
Power type:
PoE
Max. power consumption [W]:
17
Physical characteristics
Operating temperature [°C]:
-30 up to 55
Weight [g]:
425
Width [mm]:
120
Height [mm]:
130
Depth [mm]:
55
Software
Default IP address:
192.168.1.1, Dynamic from DHCP
Default login and password:
root / admin
Product description

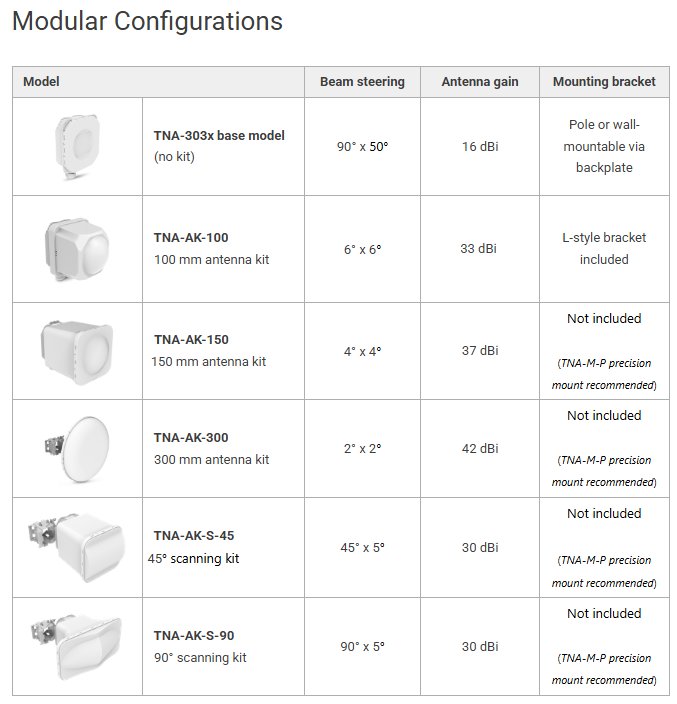

The TNA-303X is the newest addition to Tachyon's 60GHz product line. It supports the entire unlicensed 60GHz band in the range of 57-71GHz with a maximum data rate of up to 2.3 Gbps and is fully compatible with existing TNA models. What makes this model different is the innovative modular design, where the base unit offers 90° beam-forming coverage and can be paired with a separately sold antenna, allowing you to customize the unit to your specific needs. This makes the unit suitable for both PTP and PTMP scenarios.
The TNA-303X unit is equipped with a 1× 2.5Gbit ETH port with PoE-IN 38-52V support and a 1× 1Gbit ETH port with PoE-OUT of up to 0.5A for connecting additional devices. The maximum power consumption of the unit is 17W without any additional connected devices.
Key Features
Package Contents
Download
Datasheet Link calculator Operating manual Web UI manualBussines information
