Solarix ethernet cable CAT7 SSTP LSOH 500m reel

Solarix ethernet cable CAT7 SSTP LSOH 500m reel
Solarix ethernet cable CAT7 SSTP LSOH 500m reel
×
0/0
Solarix ethernet cable CAT7 SSTP LSOH 500m reel
Solarix ethernet cable CAT7 SSTP LSOH 500m reel


Oversized transport - The shipping price will be calculated after receiving the order. Shipping price may vary depending on your delivery adress.

Your price excl. VAT
360.00 EUR
Your price incl. VAT (21%) 435.60 EUR
blank
To order within 7d
PlzeňTo order within 7d
Externí sklad EATo order within 7d
Externí sklad EUTo order within 7d
Availability
at our branches
Manufacturer

Solarix

Code20065819
Part No.SXKD-7-SSTP-LSOH
Warranty 36 months
  • Related products9
EuroLan universal stripping tool for UTP / FTP cables
HT-324

1.25 EUR excl. VAT
1.51 EUR incl. VAT
In Stock
Masterlan crimping pliers RJ45, RJ12, RJ11
LY-T2007C

6.60 EUR excl. VAT
7.99 EUR incl. VAT
In Stock
EuroLan metal knife with locking slider (4 pieces of spare)
381025

2.21 EUR excl. VAT
2.67 EUR incl. VAT
In Stock
PVC insulating tape 15 mm / 10m black
IP-15-10-BLACK

0.51 EUR excl. VAT
0.62 EUR incl. VAT
In Stock
Cable ties black 29cm, 4,8mm width, 100pcs
CT-290-48-B

6.28 EUR excl. VAT
7.60 EUR incl. VAT
In Stock
Solarix velcro black, width 20mm, lenght 25m
SXSZO-20MM-25M-BK

24.90 EUR excl. VAT
30.13 EUR incl. VAT
To order within 7d
Masterlan tripper for UTP / FTP cables
CT-005-MS

3.79 EUR excl. VAT
4.59 EUR incl. VAT
Expected 30.12.2024
Protective cap for RJ45 with latch protection, red color
C/RJ45-R

0.08 EUR excl. VAT
0.10 EUR incl. VAT
In Stock
Protective cap for RJ45 with latch protection, blue color
C/RJ45-B

0.08 EUR excl. VAT
0.10 EUR incl. VAT
In Stock
show moreshow less 4
Parameters
Download

Product description

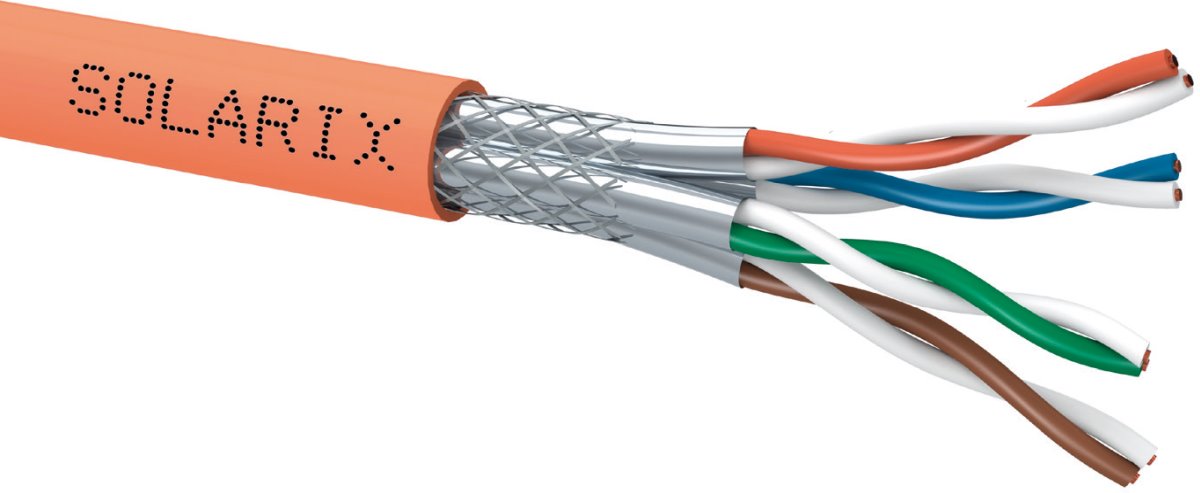

Installation cable labeled SXKD-7-SSTP-LSOH is a four-pair installation cable category 7 with double shielding (ie. With aluminum foil around each pair and braid around all pairs), which is designed for very demanding applications. This cable exceeds the requirements specified in international standards EN 50173 and ISO 11801 for category 7. The cable is tested not only in the bandwidth of 600 MHz, as required in the standard, but even up to 900 MHz. Cable wires are made from high quality copper wire size AWG 23 with polyethylene insulation; type of shield is LSOH. Installation cable Solarix-Category 7 is suitable for running the most demanding protocols that are intended for metallic lines including high-speed protocol 10GBaseT. Like other cables, also cable SXKD-7-SSTP-LSOH is labeled each one meter in the range of 0-500 m. The cable is supplied on spool, which contains all the necessary product information, including barcodes, production batch, description and main technical parameters (eg. NVP in the form of a QR code).

Vlastnosti kabelů Solarix Cat7

LSOH installation cables Solarix meet the following standards:
  1. The acidity of fumes

    • IEC 60754-2: Test on gases evolved during combustion of electric cables - Part 2: Determination of degree of acidity of gases evolved during the combustion of materials taken from electric cables by measuring pH and conductivity
    • CSN EN 50267-2-2: Common test methods for cables under fire conditions - Tests on gases evolved during combustion of materials from cables - Part 2-2: Procedures - Determination of degree of acidity of gases for materials by measuring pH and conductivity
    • CSN EN 50267-2-3: Common test methods for cables under fire conditions - Tests on gases evolved during combustion of materials from cables - Part 2-3: Procedures - Determination of degree of acidity of gases for cables by determination of the weighted average of pH and conductivity
  1. Smoke Density

    • IEC 61034-2: Measurement of smoke density of cables burning under Defined conditions-Part 2: Test procedure and requirements
    • CSN EN 61034-2: Measurement of smoke density of cables burning under Defined conditions-Part 2: Test procedure and requirements (this standard has replaced CSN EN 50268-2)
  1. Non flammability/flame spread of cable with a single insulated

    • IEC 60332-1-2:Tests on electric and optical fiber cables under fire conditions-Part 1-2: Test for vertical flame propagation for a single insulated wire or cable-Procedure for 1 kW pre-mixed flame
    • CSN EN 60332-1-2:Tests on electric and optical fiber cables under fire conditions-Part 1-2: Test for vertical flame propagation for a single insulated wire or cable-Procedure for 1 kW pre-mixed flame (this standard has replaced CSN EN 50265-2-1)

Download

Datasheet

Bussines information

Adéla Gygalová, +420 377 221 177 , adela.gygalova@discomp.cz

Technical parameters

Physical characteristics

Shielding type: STP (U/FTP)
Installation temperature [°C]: 0 up to 50
Storage temperature [°C]: -20 up to 60
Weight [kg/km]: 65
Conductor wire gauge: AWG23
Cable type: Solid
Purpose: Indoor
Conductor material: Copper
Sheath material: LSOH
Length [m]: 500
Outer diameter [mm): 7,3
Operating temperature [°C]: -20 up to 60
Color: Orange

General

Category: CAT7
Bandwidth [MHz]: 900
Ethernet support: 10G Base-T
CPR class: Cca
