Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey

Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
×
0/0
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey
Solarix cabinet LC-18 LITE, rails 3U a 4U, 540x540x180, grey

Your price excl. VAT
63.27 EUR
Your price incl. VAT (21%) 76.56 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

Solarix

Code20016718
Part No.LC-18-LITE
Warranty 24 months
  • Related products4
Masterlan patch panel 19", 24xRJ45, 1U, empty, STP ready
LY-PP5-25

13.64 EUR excl. VAT
16.50 EUR incl. VAT
In Stock
Masterlan 19" distribution panel 8x230V, black, 2m, aluminium
PDU-FRS5208

22.42 EUR excl. VAT
27.18 EUR incl. VAT
In Stock
Masterlan rackmount screws and cage nuts set (4 pcs)
RM-4PCS-MS

0.95 EUR excl. VAT
1.15 EUR incl. VAT
In Stock
Set for mounting the antenna holders - 10mm (4x plastic dowel 10mm, 4x screw 6mm)
MSVH10MM

0.87 EUR excl. VAT
1.05 EUR incl. VAT
In Stock
Parameters
Download

Product description

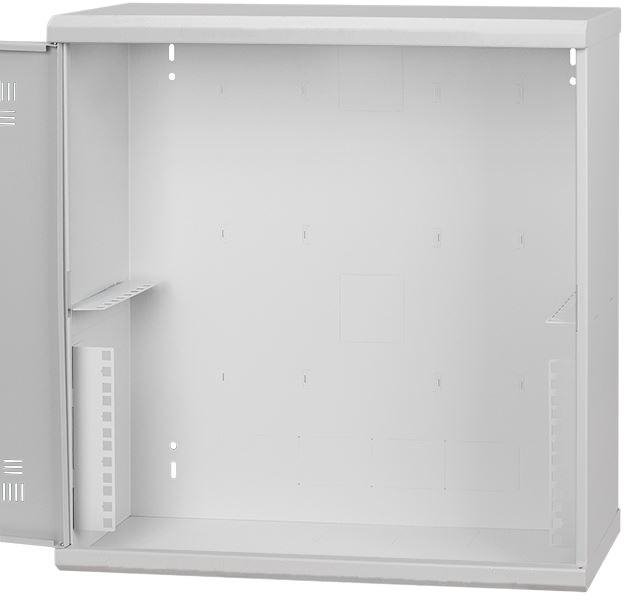

Modern wall data cabinet Solarix LC-18 LITE, is designed for the installation of smaller scale network cabling elements, or for the installation of telecommunication elements. The data cabinet consists of a skeleton, which is characterized by high strength and rigidity and is equipped with two fixed rails measuring 3U and 4U. From the front side, the data cabinet is equipped with a metal door and a metal lock with a patent key.

Sheet metal doors are complemented by perforations for passive ventilation of the equipment located inside the data cabinet. The cables are accessed by pre-made holes on the top and bottom of the cabinet and at the back. The rear wall of the data cabinet contains prepared break-out loops for untying cable reserves. The rear wall contains holes for wall mounting.

Key Features

  • External dimensions (W x H x D) 540 x 540 x 180 mm
  • Fixed 2 pairs of vertical 19 " rails - 3U and 4U
  • Doors that can be opened at an angle of 180°, choice of right or left closing
  • Front perforated door with single-point lock with patent key
  • Cable glands at the bottom, top and back
  • Four 6.5mm holes in the back for mounting
  • Degree of protection is IP 20
  • Powder painted in light gray RAL 7035

Download

Datasheet

Bussines information

Adéla Gygalová, +420 377 221 177 , adela.gygalova@discomp.cz

Technical parameters

Physical characteristics

Protection class: IP20
Size: 19"
Purpose: Indoor
"U" positions: 4 + 3
Weight [kg]: 7,5
Width [mm]: 540
Height [mm]: 540
Depth [mm]: 180
Door panel: Sheet
Color: Grey

General

Cabinet type: Wall-mounted
