SG2428LP - Omada 24-port gigabit smart swtitch with 16-port PoE+
SG2428LP - Omada 24-port gigabit smart swtitch with 16-port PoE+
×
0/0
New product
Your price excl. VAT
316.12 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 316.18 EUR |
| Your price incl. VAT (21%) | 382.58 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
TP-Link |
|
|---|---|---|
| Code | 10411192 | |
| Part No. | SG2428LP | |
| Warranty | 60 months | |
SG2452LP
591.16 EUR excl. VAT
715.38 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100/1000Mbps
Optical interfaces:
(4) 1000Mbps
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
Redundant power supply:
Yes
PoE Out ports:
16
PoE budget [W]:
150
Max. power consumption [W]:
190
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Desktop, Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
0 up to 40

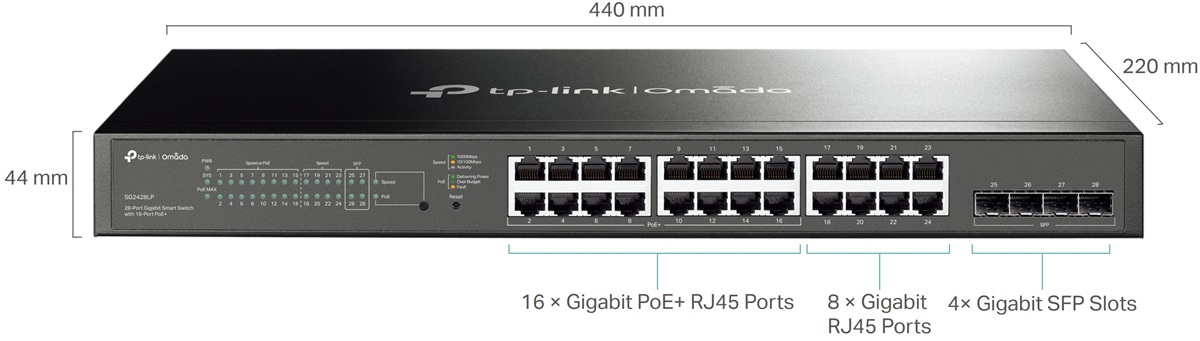

Width [mm]:
440
Height [mm]:
44
Depth [mm]:
220
General
Switchning capacity [Gbps]:
56
MAC address table:
8000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
42
Software
Web management:
Yes
Management:
Omada controller, Mobilní aplikace, SSH, Telnet
Features:
VLAN, QoS, DHCP snooping, L2+
Default IP address:
192.168.0.1
Default login and password:
admin / admin
Product description

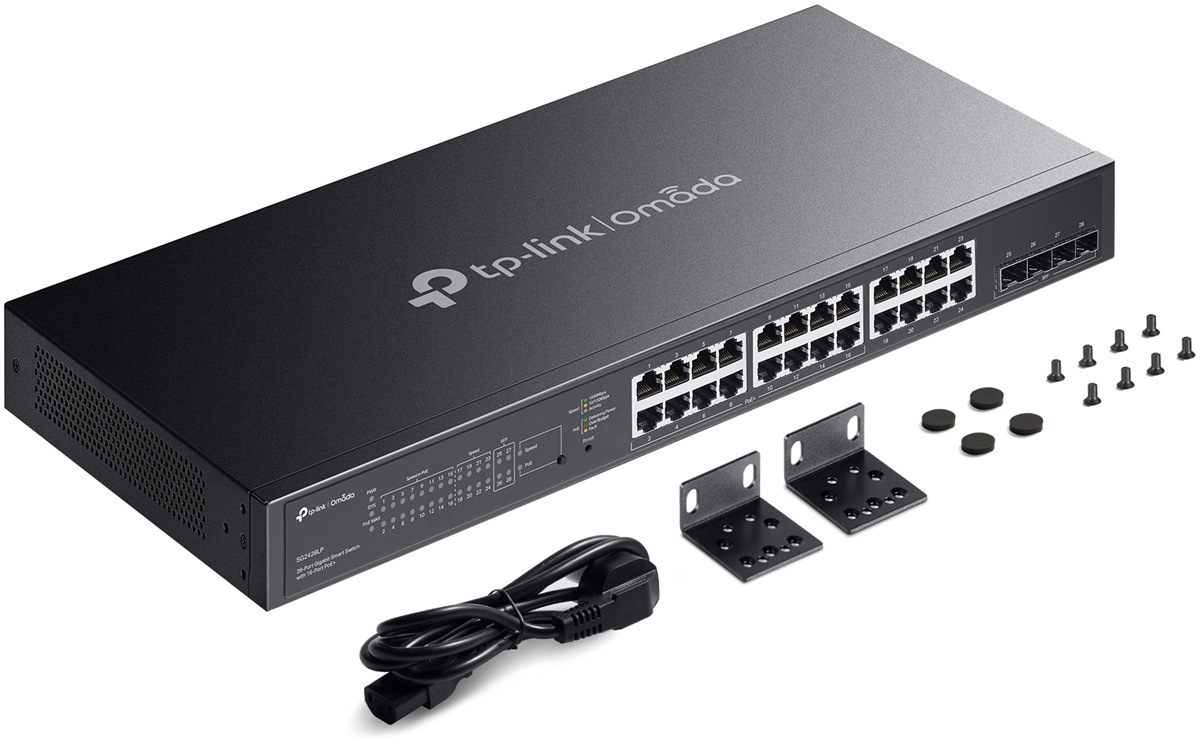

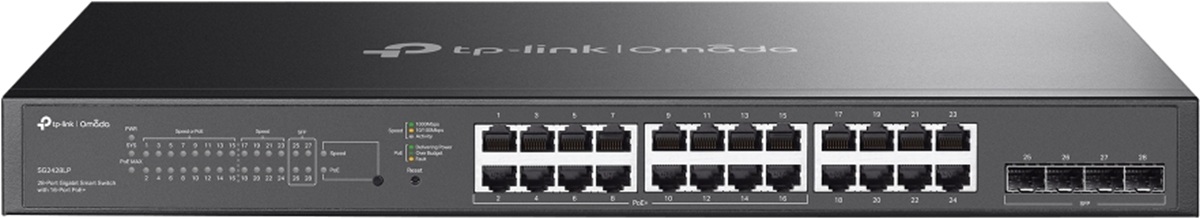

The switch offers 24x GbE RJ-45 ports, of which 16 support PoE+ 802.3af/at with a total power budget of up to 150 W, and 4x GbE SFP slots. Switching capacity reaches up to 56 Gb/s with a forwarding rate of up to 41.66 Mpps. The Storm Control feature protects against overloads from broadcast, multicast, and unknown unicast packets. QoS offers advanced traffic management options for smoother and faster data transmission. An easy-to-use web management interface, together with SNMP, RMON, and Dual Image support, simplifies setup and configuration.
Package Contents
Download
Datasheet Installation GuideGPSR
