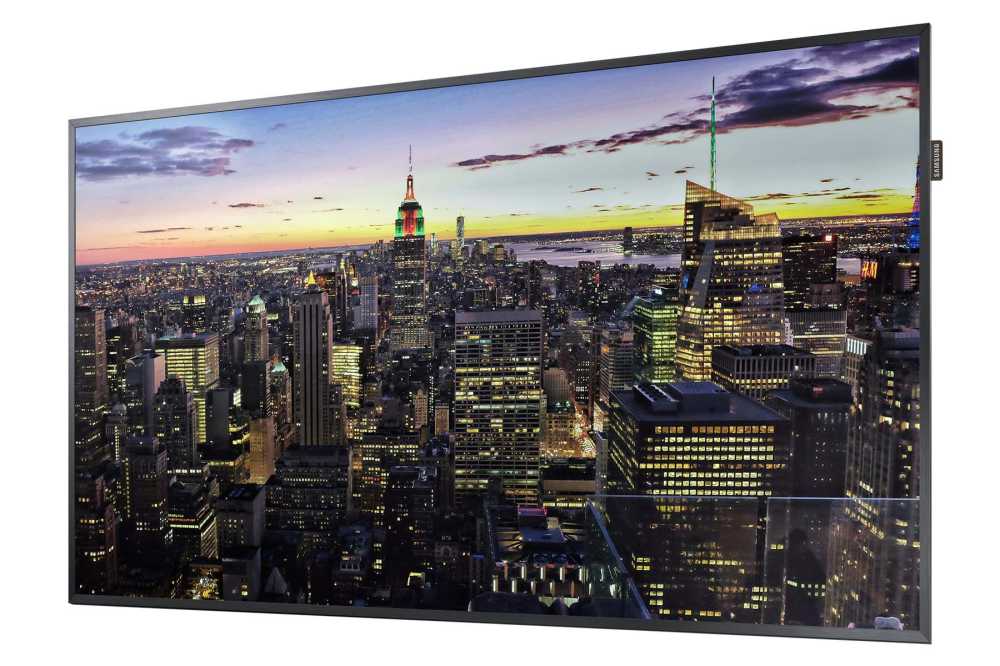

SAMSUNG LFD LH65QMHPLGC/EN (UHD LFD Display) E-LED BLU D-SUB, HDMI,repro,VESA)

Product description

Panel
Diagonal Size
65"

Type
60Hz E-LED BLU

Resolution
3840*2160 (4K UHD)

Pixel Pitch(mm)
0.105 x 0.315 (mm)
Active Display Area(mm)
1438.48(H) x 814.52(V)

Brightness(Typ.)
500 nit

Contrast Ratio
4700:1

Viewing Angle(H/V)
178/178
Response Time(G-to-G)
8ms (Typ)

Display Colors
16.7M(True Display)1.07B(Ditherd 10bit)

Color Gamut
72%

Haze
25%
Display
Dynamic C/R
Mega

H-Scanning Frequency
30 ~ 81kHZ

V-Scanning Frequency
48 ~ 75HZ

Maximum Pixel Frequency
148.5MHz
Sound
Speaker Type
Built in Speaker(10W + 10W)
Connectivity
Input
RGB
DVI-I(D-Sub Common), Display Port 1.2 (2)

Video
HDMI 1.4(4)

HDCP
HDCP1.4 (› support UHD 30hz)

Audio
Stereo mini Jack
USB
USB (S/W update only)
Output
RGB
N/A

Video
N/A

Audio
Stereo mini Jack

Power Out
N/A
External Control
RS232C(in/out), RJ45

External Sensor
IR

Tuner
No
Power
Type
Internal

Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]
198.0

Typical[W/h]
138.0

BTU(Max)
N/A

Sleep mode
less than 0.5W
Off mode
less than 0.5W
Mechanical Specification
Dimension (mm)
Set
1456.1 x 835.6 x 37.5

Package
1571 X 949 X 212
Weight (kg)
Set
23.1

Package
31.6
VESA Mount (mm)
400x400

Mounting Hole
N/A

Protection Glass
N/A

Stand Type
Foot Stand (Optional)
Media Player Option Type
SBB-DA/DI

Bezel Width (mm)
12.0/12.0/12.0
Operation
Recommended Usage Hours
24/7

Operating Temperature
0.0  ?  ~   40.0   ?

Humidity
10.0  %  ~   80.0   %
Feature
Key Features
UHD LFD Display
Special Features
HW : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x
SW : FHD 4 PBP Support (2/3/4 PBP),
Auto Source Switching & Recovery,
LFD Home UI, Button Lock, DHCP with RJ45 MDC, Hot key option, Plug&Play (Initial Setting)
Internal Player
Processor
N/A

On-Chip Cache Memory
N/A

Clock Speed
N/A

Main Memory Interface
N/A
Graphics
N/A

Storage (FDM)
N/A

Multimedia
N/A

IO Ports
N/A
Operating System
N/A
Certification
Safety
60950-1
EMC
Class A
Accessory
Included
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
Stand
STN-L6500E

Mount
WMN6575SD

Specialty
-
Media Player
Media Player
Media Player
SBB-DA/DI
