RF elements Symmetrical Horn Sector antenna with TwistPort, 5GHz, 14dBi, 50°, Gen2
Your price excl. VAT
96.66 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 96.86 EUR |
| Your price incl. VAT (21%) | 117.20 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
RF elements |
|
|---|---|---|
| Code | 11100097 | |
| Part No. | HG3-TP-S50 | |
| Warranty | 24 months | |
TP-ADAP-e2K
44.18 EUR excl. VAT
53.53 EUR incl. VAT
In Stock
TP-ADAP-C5c
13.80 EUR excl. VAT
16.77 EUR incl. VAT
In Stock
TP-ADAP-IS
19.34 EUR excl. VAT
23.47 EUR incl. VAT
In Stock
TPA-RBC
35.91 EUR excl. VAT
43.52 EUR incl. VAT
In Stock
TPA-PAF
53.87 EUR excl. VAT
65.26 EUR incl. VAT
Expected 30.11.2024
TPA-RBP
24.88 EUR excl. VAT
30.18 EUR incl. VAT
In Stock
TPA-SMA
19.34 EUR excl. VAT
23.47 EUR incl. VAT
In Stock
TPA-R5AC
27.61 EUR excl. VAT
33.48 EUR incl. VAT
In Stock
TPA-RM5
11.59 EUR excl. VAT
14.10 EUR incl. VAT
In Stock
TPA-A5x
13.80 EUR excl. VAT
16.77 EUR incl. VAT
In Stock
B-TPA-RM5
9.29 EUR excl. VAT
11.31 EUR incl. VAT
In Stock
PK35S421V100
12.38 EUR excl. VAT
14.98 EUR incl. VAT
In Stock
TPA-AMU-V2
13.80 EUR excl. VAT
16.77 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
F/B ratio [dB]:
33
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
50
Azimuth beam width (-6dB) [°]:
50
Antenna type:
Sector

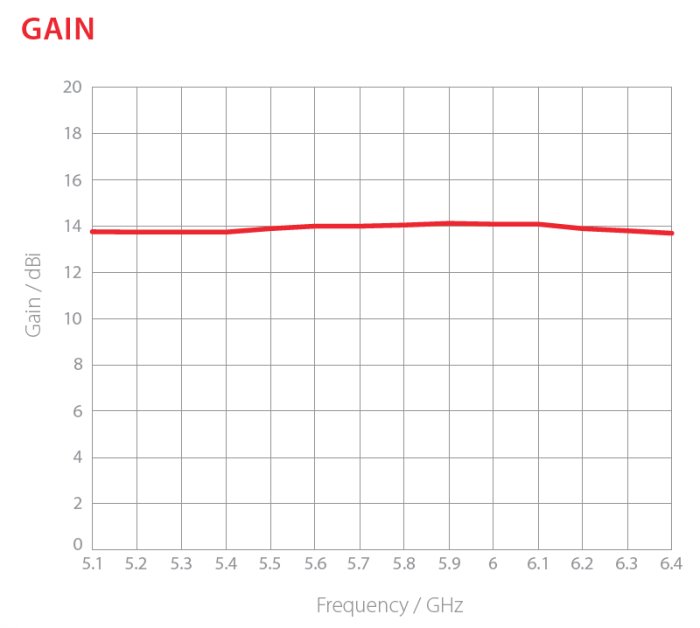

Antenna gain [dBi]:
14
Connectors and Interfaces
RF connectors:
TwistPort
Physical characteristics
Designed for mast diameter [mm]:
30 up to 90
Wind load [km/h]:
160
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic, Stainless steel, Polycarbonate, Polypropylene
Weight [kg]:
1,4
Width [mm]:
312
Height [mm]:
152
Depth [mm]:
164
Video
Product description
Symmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPort connector. Deployed in field since 2014, they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection, network scalability and throughput increase.
Improvements of 2nd generation
TwistPort connector
Symmetrical Horn TP Antennas feature our industry-changing TwistPort connector, a patent-pending quick-locking waveguide port. TwistPort is virtually lossless: with radios built according to our Reference design, there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - “twist and lock” - all done with one hand!
No Side Lobes
Symmetrical Horn TP Antennas have no side lobes, they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties, the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas. The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently, being basically "deaf" outside their main beam.
Coverage Without Null
Mainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high, the customers that are too close will suffer from low AP signal.
Breakthrough Scalability
Symmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than a traditional sector technology.
Symmetrical Horn TP Antennas come with precise radiation angles, ranging from 30 to 90 degrees: a wide range of models suitable for any situation.
Cross-Platform Compatibility
Our wide range of TwistPort Adaptors allows you to connect most popular connectorized radios from other vendors, such as UBNT, Mimosa, MikroTik or Cambium Networks, directly to any TwistPort-enabled antenna.
Robust and Durable
Symmetrical Horn TP Antennas are solid aluminium bodies that are built to last and to resist any weather conditions. We use only the best materials: die cast, stamped and extruded aluminium; high quality ABS plastic, high density polyethylene; and stainless steel hardware.
