RF elements StarterDish STD-24-UM Directional parabolic dish antenna, 5GHz, 24dBi
RF elements StarterDish STD-24-UM Directional parabolic dish antenna, 5GHz, 24dBi
×
0/0
Your price excl. VAT
43.47 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 43.67 EUR |
| Your price incl. VAT (21%) | 52.84 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
RF elements |
|
|---|---|---|
| Code | 10210172 | |
| Part No. | STD-24-UM | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
STA-SMA
8.68 EUR excl. VAT
10.58 EUR incl. VAT
In Stock
IS-5AC
105.41 EUR excl. VAT
127.63 EUR incl. VAT
Ordered, unknown date
IS-M5
97.93 EUR excl. VAT
118.58 EUR incl. VAT
In Stock
PS-5AC
246.30 EUR excl. VAT
298.11 EUR incl. VAT
In Stock
100-00101(C5x IP67)
113.97 EUR excl. VAT
137.99 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
12
Azimuth beam width (-6dB) [°]:
12
Antenna type:
Directional
Antenna gain [dBi]:
24
Connectors and Interfaces
RF connectors:
IsoStation port, Twist-on port (Mimosa)
Physical characteristics
Designed for mast diameter [mm]:
20 up to 55
Wind load [km/h]:
160
Protection class:
IP65
Purpose:
Outdoor
Operating temperature [°C]:
-35 up to 55
Weight [kg]:
1,5

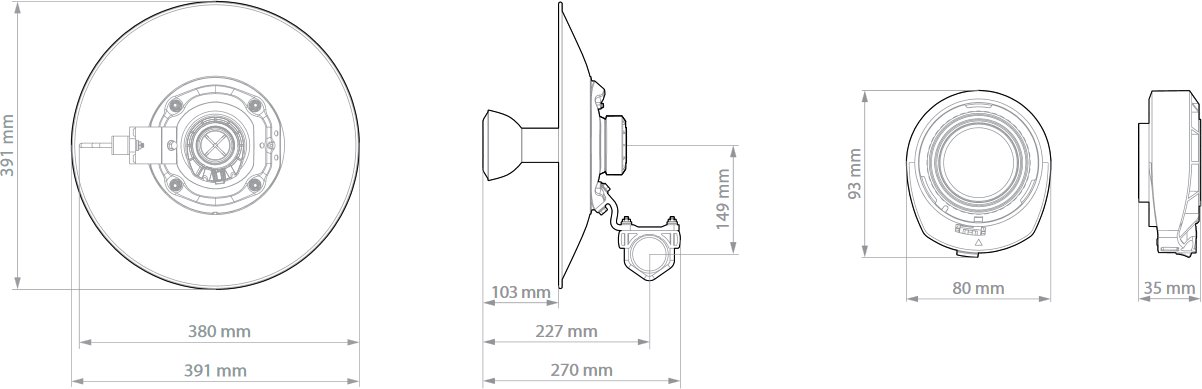

Width [mm]:
391
Height [mm]:
391
Depth [mm]:
196
Product description
The StarterDish antenna from RF Elements is a directional parabolic antenna with a gain of 24 dBi primarily intended for client installations. The antenna consists of a very light parabolic antenna, a simple holder for a mast with a diameter from 20 to 55 mm, a radiator is made of aluminum terminated on the back with a so-called IsoStation connector for direct connection to IsoStation or PrismStation units from Ubiquiti. The antenna package also includes a reducer for connection to a C5x unit from Mimosa.
Compatibility
For greater compatibility, use the optional STA-SMA reducer with two RSMA female connectors for connecting units with HF connectors.
Package Contents
Download
DatasheetGPSR
RF elements s.r.o.
Gagarinova 5B, Bratislava, Slovakia
info@rfelements.com
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
Bussines information
Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz
