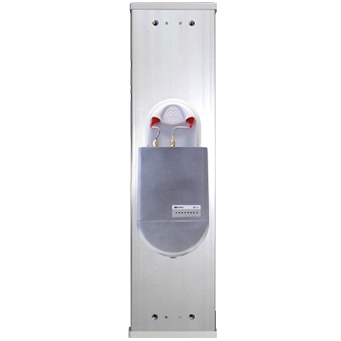

RF elements Sector Carrier Class, 2.4 GHz, 14 dBi, 2x2 MIMO, 75/100°

RF elements Sector Carrier Class, 2.4 GHz, 14 dBi, 2x2 MIMO, 75/100°
RF elements Sector Carrier Class, 2.4 GHz, 14 dBi, 2x2 MIMO, 75/100°
×
0/0
RF elements Sector Carrier Class, 2.4 GHz, 14 dBi, 2x2 MIMO, 75/100°
RF elements Sector Carrier Class, 2.4 GHz, 14 dBi, 2x2 MIMO, 75/100°
Sale
Your price excl. VAT
84.71 EUR
Recycling fee 0.20 EUR
Your price with RF 84.91 EUR
Your price incl. VAT (21%) 102.74 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

RF elements

Code10210155
Part No.SEC-CC-2-14
Warranty 24 months
  • Related products2
Ubiquiti Rocket M2 AirMax MIMO outdoor client 2,4GHz
RocketM2

68.74 EUR excl. VAT
83.26 EUR incl. VAT
Ordered, unknown date
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
PK35S421V100

12.38 EUR excl. VAT
14.98 EUR incl. VAT
In Stock
Parameters
Download
Video

Product description

Carrier Class Sectors are optimized for the best MiMo performance and feature patent pending BackShieldTM technology for easier co-location. This antenna is made for 2.4GHz band with 14dBi antenna gain and 75-100° beam angle.

Carrier Class Sectors feature BackShieldTM, our patent pending system designed to attenuate sidelobes and back side nearfield radiation. Frequency selective reflectors are integrated into the antenna structure. BackShieldTM significantly improves co-location ability in cluster sector deployments.



Balanced Antenna systems for MIMO performance
Unlike most competitors, RF elements sector antennas are optimized for balanced performance between H & V antenna systems. Due to balanced radiation patterns and gain, carrier class sectors excel in MiMo performance.

Light & Durable
Carrier Class Sectors are premium sector antennas offering powerful features for competitive price. Antennas are optimized for the best MiMo performance and feature patent pending BackShieldTM technology for easy co-location. Made of aluminium and stainless steel, carrier class sector antennas are compact and light - a class ahead of its competitors. RF ports are secured by detachable protective cover, feature first time introduced by RF elements®.



Wide Platform Compatibilty
List of compatible platforms includes:
  • Rocket by Ubiquiti
  • BaseBox by MikroTik
  • ePMP by Cambium Networks
  • RF Elements outdoor boxes

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 2 x 2
Polarization: VH
VSWR: < 1,4
F/B ratio [dB]: 30
Cross-Pol Isolation [dB]: 18
Wireless frequency: 2.4 GHz
Elevation beam width (-6dB) [°]: 69
Azimuth beam width (-6dB) [°]: 75
Antenna type: Sector
Antenna gain [dBi]: 14

Connectors and Interfaces

Rocket kit: Yes
RF connectors: (2) RSMA female

Physical characteristics

Designed for mast diameter [mm]: 30 up to 80
Wind load [km/h]: 160
Purpose: Outdoor
Material: Aluminum, Stainless steel
Weight [kg]: 3,7
Width [mm]: 172
Height [mm]: 604
Depth [mm]: 63
