RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°

RF elements Asymmetrical Horn Wideband Antenna, 5/6GHz, 18,5dBi, 45°
×
0/0


Your price excl. VAT
382.98 EUR
Recycling fee | 0.20 EUR |
---|---|
Your price with RF | 383.18 EUR |
Your price incl. VAT (21%) | 463.65 EUR |
blank |
Availability
at our branches
at our branches
Manufacturer |
RF elements |
|
---|---|---|
Code | 11300380 | |
Part No. | AH45WB | |
Warranty | 24 months |
You have a choice of 3 variantscompare all

45°, 18.5dBi
AH45WB
382.98 EUR

TPA-SMA6
22.27 EUR excl. VAT
27.02 EUR incl. VAT
Ordered, unknown date

TPA-EPMP-B-6
44.58 EUR excl. VAT
54.01 EUR incl. VAT
Not in stock

PK35S421V100
10.33 EUR excl. VAT
12.50 EUR incl. VAT
In Stock
Parameters
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
Wireless frequency:
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]:
20
Azimuth beam width (-6dB) [°]:
45
Antenna type:
Sector
Antenna gain [dBi]:
18,5
Connectors and Interfaces
RF connectors:
TwistPort
Physical characteristics
Designed for mast diameter [mm]:
40 up to 80
Protection class:
IP65
Purpose:
Outdoor
Material:
Aluminum, Stainless steel, ABS plastic, Zinc alloy
Operating temperature [°C]:
-35 up to 60
Width [mm]:
316
Height [mm]:
348
Depth [mm]:
491
Product description
6 GHz Asymmetrical Horn WB Antennas: A Revolutionary Solution for Internet Service Providers
RF elements presents the 6 GHz Asymmetrical Horn WB Antennas, specifically designed to cover the unlicensed 5 GHz and 6 GHz bands. These antennas feature a unique asymmetrical beam shape and are equipped with the patented TwistPort connector, ensuring easy integration and outstanding performance.
Key Features
Broadband Operation for Future Deployments
The 6 GHz Asymmetrical Horn WB Antennas provide over 2000 MHz of broadband operation, covering the entire unlicensed 5 GHz and 6 GHz spectrum. This wideband capability ensures excellent investment protection and flexibility for future deployments. These antennas excel in broadband applications requiring coverage of both frequency bands with a single antenna. Simply pair them with the appropriate wideband TwistPort adapter to achieve the best horn antenna performance on the market.
Unique Asymmetrical Beam Shape
The antennas feature a distinctive beam shape with an elliptical cross-section: wide in azimuth and narrow in elevation. This design provides broad coverage while enhancing antenna gain. The beam pattern resembles a standard automotive fog light, ensuring optimal coverage distribution.
Consistent Gain and Radiation Patterns
The radiation patterns and gain of these antennas remain well-balanced across the entire 2000 MHz operating frequency range for both H and V polarizations. Achieving uniform radiation patterns over such a wideband spectrum is a challenging task, even for the most skilled antenna engineers. With the 6 GHz Asymmetrical Horn WB Antennas, RF Elements engineers have redefined industry standards for wideband horn antenna performance.
Elimination of Side Lobes
These antennas naturally suppress side lobes, concentrating most of the energy into a single main beam. Side lobes are either absent or reduced to levels where they become "invisible" to WISP radios. The elimination of side lobe radiation significantly improves resistance to interference and enables new levels of network scalability, cluster density, and frequency reuse.

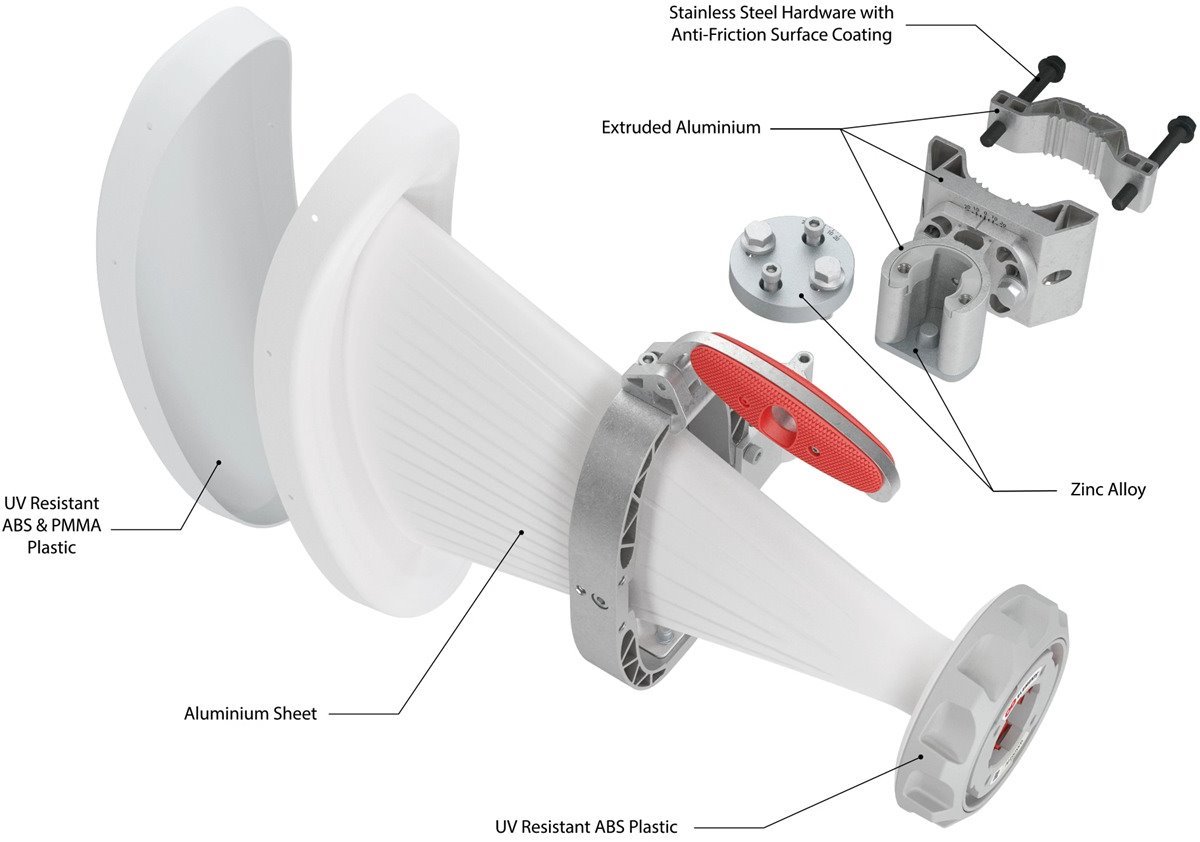

Durable Construction
Designed to withstand the harshest weather conditions, these antennas are built with premium materials, including marine-grade aluminum, stainless steel, and high-quality ABS plastic. This results in a significantly lower weight compared to 5 GHz asymmetrical horn antennas. The innovative mounting system is made from stainless steel for maximum strength and durability. Additionally, all hardware components feature black-coated stainless steel to prevent seizing during installation.
Package Contents
GPSR
RF elements s.r.o.
Gagarinova 5B, Bratislava, Slovakia
info@rfelements.com
Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
