RF elements Asymmetrical Horn Wideband Antenna, 4x4 MIMO, 6/5 GHz, 15dBi, 90°
RF elements Asymmetrical Horn Wideband Antenna, 4x4 MIMO, 6/5 GHz, 15dBi, 90°
×
0/0
Your price excl. VAT
608.68 EUR
| Recycling fee | 0.40 EUR |
|---|---|
| Your price with RF | 609.08 EUR |
| Your price incl. VAT (21%) | 736.99 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
RF elements |
|
|---|---|---|
| Code | 11300384 | |
| Part No. | AH90WB-4x4-SMA | |
| Warranty | 24 months | |
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
4 x 4
Polarization:
V, Horizontal
VSWR:
< 1,4
F/B ratio [dB]:
27
Wireless frequency:
5 GHz, 6 GHz
Elevation beam width (-6dB) [°]:
25
Azimuth beam width (-6dB) [°]:
90
Antenna type:
Sector
Antenna gain [dBi]:
15
Connectors and Interfaces
RF connectors:
TwistPort, (2) RP-SMA female
Physical characteristics
Designed for mast diameter [mm]:
40 up to 80
Wind load [km/h]:
160
Protection class:
IP65
Purpose:
Outdoor
Material:
Aluminum, Stainless steel, ABS plastic, Zinc alloy
Operating temperature [°C]:
-35 up to 60
Weight [kg]:
5,6
Width [mm]:
492
Height [mm]:
435
Depth [mm]:
434
Product description
AH90WB-4x4-SMA is a 4x4 5 and 6 GHz horn sector antenna by RF elements, featuring a 90° asymmetrical radiation angle and a gain of 15dBi. This antenna offers a perfect combination of properties and features that address the main weaknesses of today's mainstream sector antennas. It is equipped with two RP-SMA female connectors for connection to any unit. The antenna can be easily mounted on a pole with a diameter of 40-80mm using an innovative bracket that simplifies installation by allowing the bracket to be pre-mounted and the antenna installed afterward.
Coverage Without Dead Zones

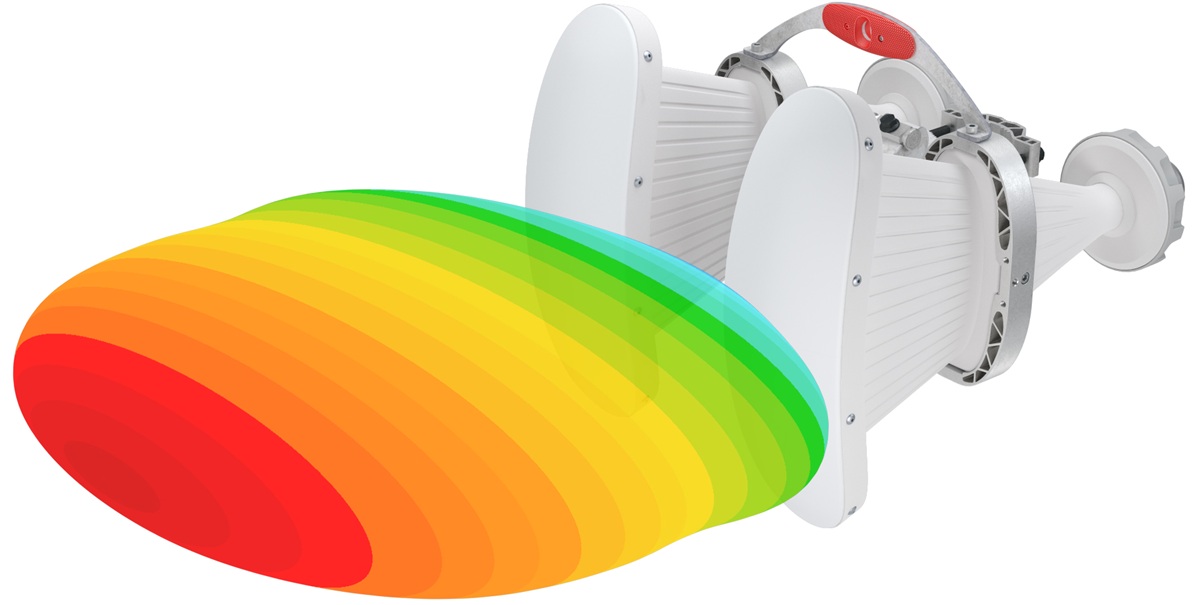

The coverage of traditional sector antennas has a specific shape - if the AP is too high, clients located close to it suffer from poor signal quality. As the saying goes: "under the lamp, it is darkest." Asymmetrical sector antennas emit a signal with a flattened circular beam shape. As a result, the signal coverage of asymmetrical sector antennas is almost without dead zones, ensuring that even clients located close to the AP are satisfied.
Excellent Scalability

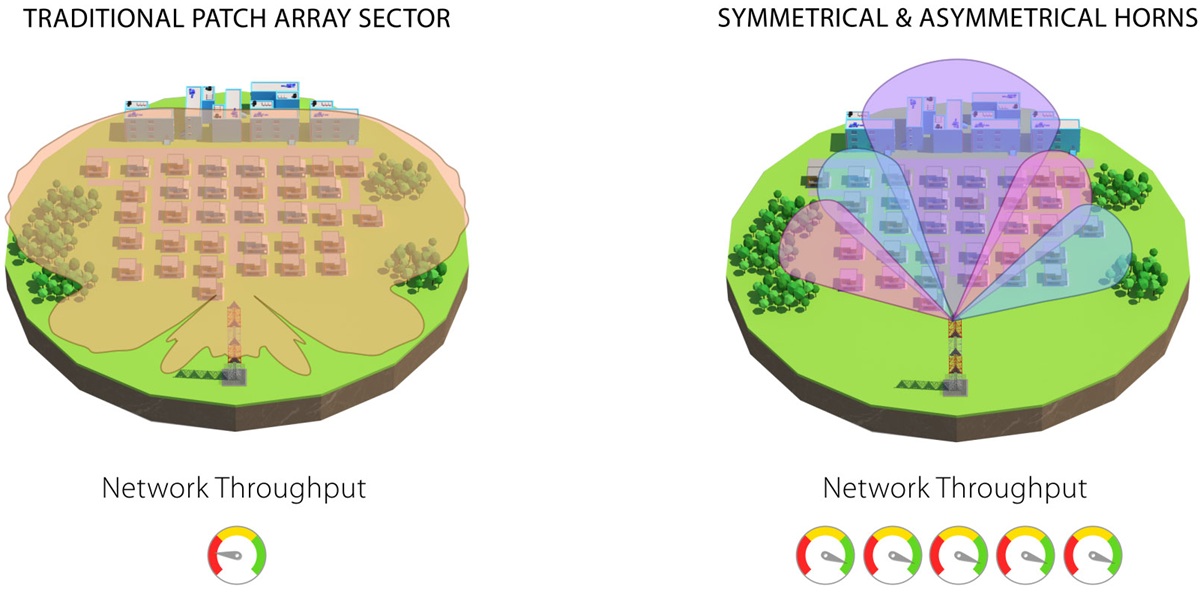

The unique radiation characteristics, minimal side lobes, and extremely low back radiation allow for the placement of multiple antennas at one point or the creation of multiple independent points. This helps distribute the load across individual APs more effectively and increases speeds for individual clients.
Innovative Mount
The AHxx asymmetrical antennas are equipped with an innovative mounting system. The installation of the bracket and the antenna is separated and performed in two steps.
Package Contents
