RF elements Asymmetrical Horn Antenna with TwistPort, 5GHz, 16dBi, 90°
Your price excl. VAT
289.81 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 290.01 EUR |
| Your price incl. VAT (21%) | 350.91 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
RF elements |
|
|---|---|---|
| Code | 11100129 | |
| Part No. | AH90-TP | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
TP-ADAP-e2K
46.38 EUR excl. VAT
56.19 EUR incl. VAT
Ordered, unknown date
TP-ADAP-C5c
14.49 EUR excl. VAT
17.61 EUR incl. VAT
In Stock
TP-ADAP-IS
20.30 EUR excl. VAT
24.64 EUR incl. VAT
In Stock
TPA-RBC
37.66 EUR excl. VAT
45.64 EUR incl. VAT
In Stock
TPA-PAF
56.53 EUR excl. VAT
68.47 EUR incl. VAT
In Stock
TPA-RBP
26.07 EUR excl. VAT
31.62 EUR incl. VAT
In Stock
TPA-SMA
20.30 EUR excl. VAT
24.64 EUR incl. VAT
In Stock
TPA-R5AC
28.98 EUR excl. VAT
35.14 EUR incl. VAT
In Stock
TPA-RM5
12.18 EUR excl. VAT
14.81 EUR incl. VAT
In Stock
TPA-A5x
14.49 EUR excl. VAT
17.61 EUR incl. VAT
In Stock
PK35S421V100
12.46 EUR excl. VAT
15.08 EUR incl. VAT
In Stock
TPA-AMU-V2
14.49 EUR excl. VAT
17.61 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Polarization:
VH
F/B ratio [dB]:
35
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
25
Azimuth beam width (-6dB) [°]:
90
Antenna type:
Sector
Antenna gain [dBi]:
16
Connectors and Interfaces
RF connectors:
TwistPort
Physical characteristics
Designed for mast diameter [mm]:
40 up to 80
Wind load [km/h]:
160
Protection class:
IP55
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic, Stainless steel, Polycarbonate
Operating temperature [°C]:
-35 up to 60
Weight [kg]:
5,3
Width [mm]:
218
Height [mm]:
391
Depth [mm]:
426
Video
Product description

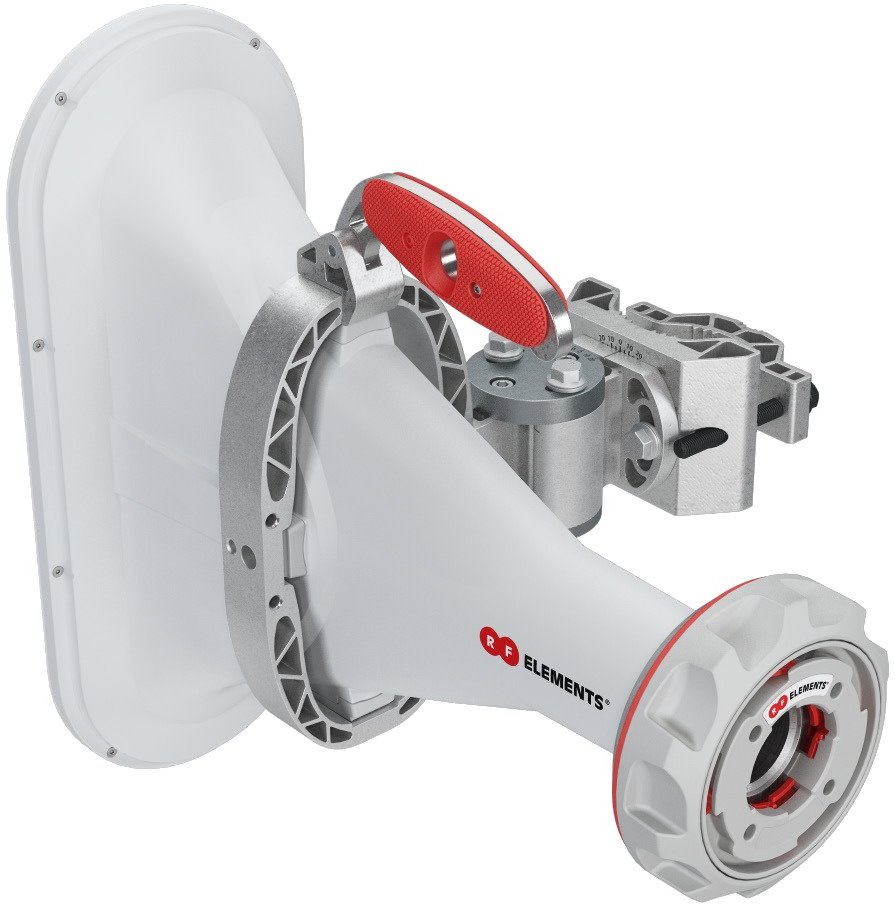

AH90-TP is a 5GHz sector antenna of the "horn" type from the RF elements workshop and features an 90° asymmetric beam angle, 16 dBi gain and a Twistport connector. This antenna offers the perfect combination of features and functions that address the major weaknesses of today's mainstream sector antennas.
TwistPort Connector - Convenient and Lossless
Asymmetrical Horn TP Antennas feature our industry-changing TwistPort connector, a patent-pending quick-locking waveguide port. TwistPort is virtually lossless: there are no coaxial connectors or cables that attenuate signal. Connecting radios is ingeniously simple - “twist and lock” - with a single hand!
Pefect Coverage Pattern
Mainstream patch array sector antennas have radiation pattern extremely wide in azimuth and extremely flat in elevation plane. If an AP is deployed on a tall tower, customers near the tower suffer from low AP signal level. Asymmetrical Horn TP Antennas provide valuable extra degrees in elevation beam width, shrinking the null zone while preserving increased gain for long range performance.
Breakthrough Scalability
Horn TP Antennas provide extraordinary scalability options. Asymmetrical Horn TP Antennas are new addition to the tool box. Unique beam performance, precise radiation patterns and increased gain push system scalability even further.
Cross-Platform Compatibility

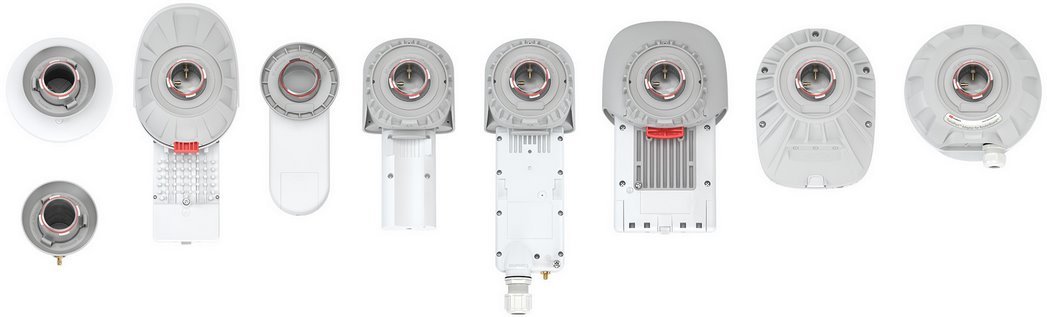

For use with third-party products such as MikroTik, Ubiquiti or Cambium, RF elements offer a wide range of adapters that allow you to easily connect these devices to the TwistPort connector. This allows you to transfer any unit to another antenna with a single click without screwing pigtails.

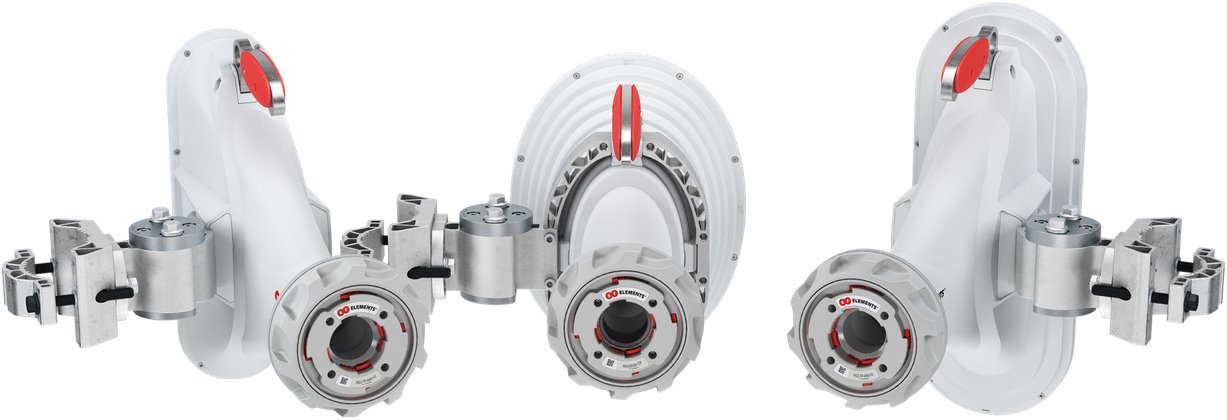

Innovative Bracket
Asymmetrical Horn AH90-TP Antenna features an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy.
Package Contents
