RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°

RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
×
0/0
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°

Your price excl. VAT
152.34 EUR
Recycling fee 0.20 EUR
Your price with RF 152.54 EUR
Your price incl. VAT (21%) 184.57 EUR
blank
Ordered, unknown date
PlzeňOrdered, unknown date
Externí sklad EAOrdered, unknown date
Externí sklad EUOrdered, unknown date
Availability
at our branches
Manufacturer

RF elements

Code11100132
Part No.AH90-CC
Warranty 24 months
You have a choice of 4 variantscompare all
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 16dBi, 90°
90°
AH90-CC
152.34 EUR
Ordered, unknown date
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 20,5dBi, 20°
20°
AH20-CC
152.34 EUR
In Stock
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 20,5dBi, 30°
30°
AH30-CC
152.34 EUR
In Stock
RF elements Asymmetrical Horn Antenna Carrier Class, 5GHz, 17dBi, 60°
60°
AH60-CC
152.34 EUR
In Stock
  • Related products4
Pigtail Flexi 0,5m - N male / RSMA male
FL-RM-NM-005

7.62 EUR excl. VAT
9.22 EUR incl. VAT
In Stock
RF N male coupler for N female 90° angle
03-NM-NF-90

4.34 EUR excl. VAT
5.25 EUR incl. VAT
Expected 13.11.2024
Self vulcanizing tape SCAPA 25 mm x 10m - Shrink
S2501

6.44 EUR excl. VAT
7.79 EUR incl. VAT
Not in stock
RF N male coupler for RSMA female
03-NM-RF

3.79 EUR excl. VAT
4.59 EUR incl. VAT
In Stock
Parameters
Download

Product description

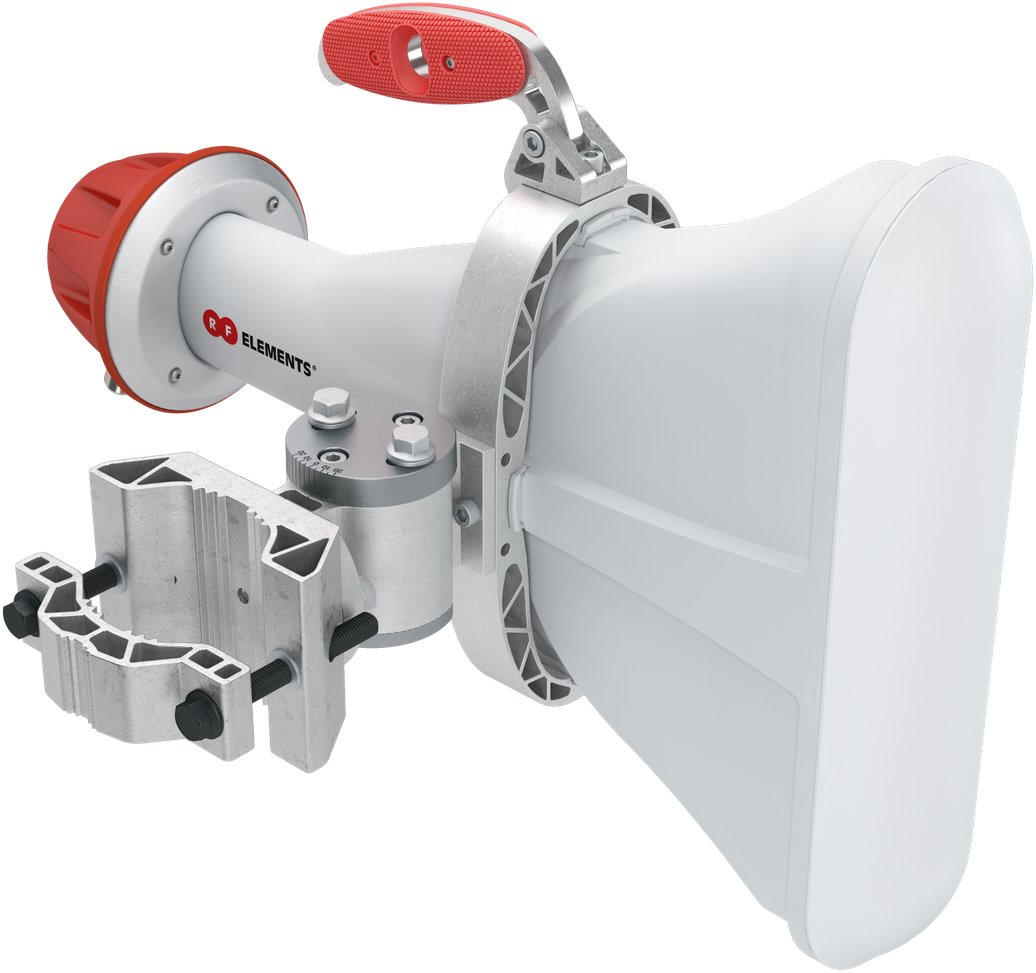

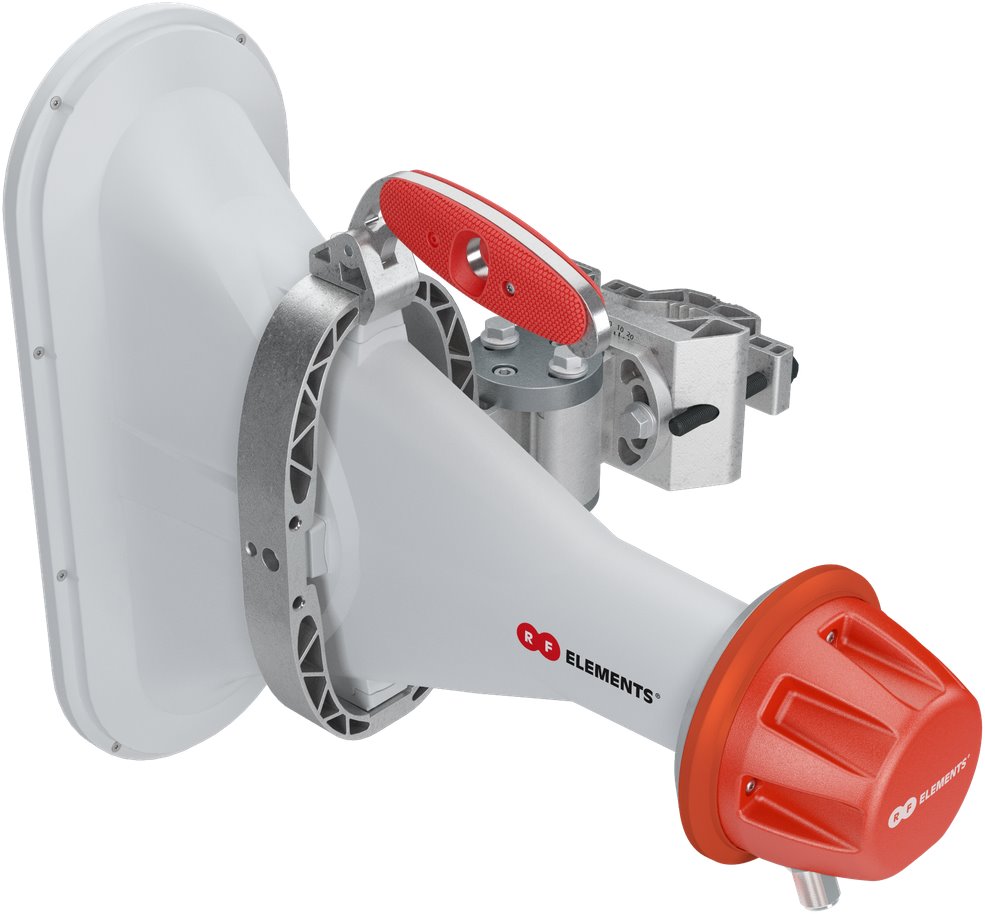

AH90-CC is a 5GHz sector antenna of the "horn" type of a new generation from the RF elements workshop and is characterized by 90° asymmetric beam angle (25° in the elevation plane), gain 16 dBi and 2x N-Female connectors. This antenna offers the perfect combination of features and functions that address the major weaknesses of today's mainstream sector antennas.

AH90-CC

No Side Lobes

Asymmetrical Horn CC Antennas have naturally suppressed side lobes because of their optimized design: they focus energy into a single main beam. Absence of side lobes enables excellent noise immunity of a network when using Asymmetrical Horn CC Antennas.

AH90-CC

Perfect Coverage Pattern

Mainstream patch array sector antennas have radiation pattern extremely wide in the azimuth and extremely narrow in the elevation plane. If an AP is deployed on a tall tower, customers near the tower suffer from low AP signal level. Asymmetrical Horn CC Antennas provide valuable extra degrees of the elevation beam width, shrinking the null zone while preserving the increased gain for long-range performance.

AH90-CC

Breakthrough Scalability

Unique radiation characteristics, minimal side lobes and extremely low back radiation allow the placement of multiple antennas at one point and the construction of multiple separate points, which will allow better distribution of load on individual APs and increase speeds to individual clients.

AH90-CC

Innovative Bracket

Aymxx-CC asymmetric antennas are equipped with an innovative mounting system. Mounting the bracket and antenna is separate and performed in two steps.

AH90-CC

Package Contents

  • Antenna
  • Precision holder

Download

Datasheet

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 2 x 2
Polarization: VH
VSWR: < 1,8
F/B ratio [dB]: 30
Wireless frequency: 5 GHz
Elevation beam width (-6dB) [°]: 25
Azimuth beam width (-6dB) [°]: 90
Antenna type: Sector
Antenna gain [dBi]: 16

Connectors and Interfaces

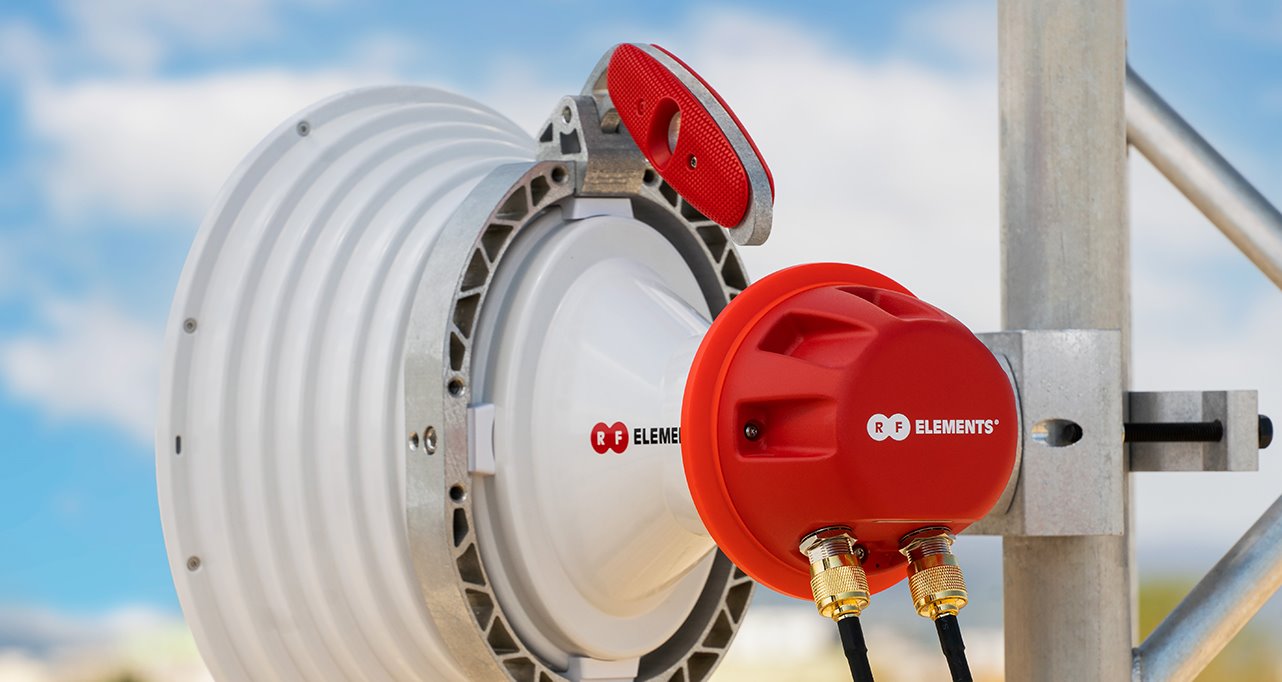

RF connectors: (2) N female

Physical characteristics

Designed for mast diameter [mm]: 40 up to 80
Wind load [km/h]: 160
Protection class: IP55
Purpose: Outdoor

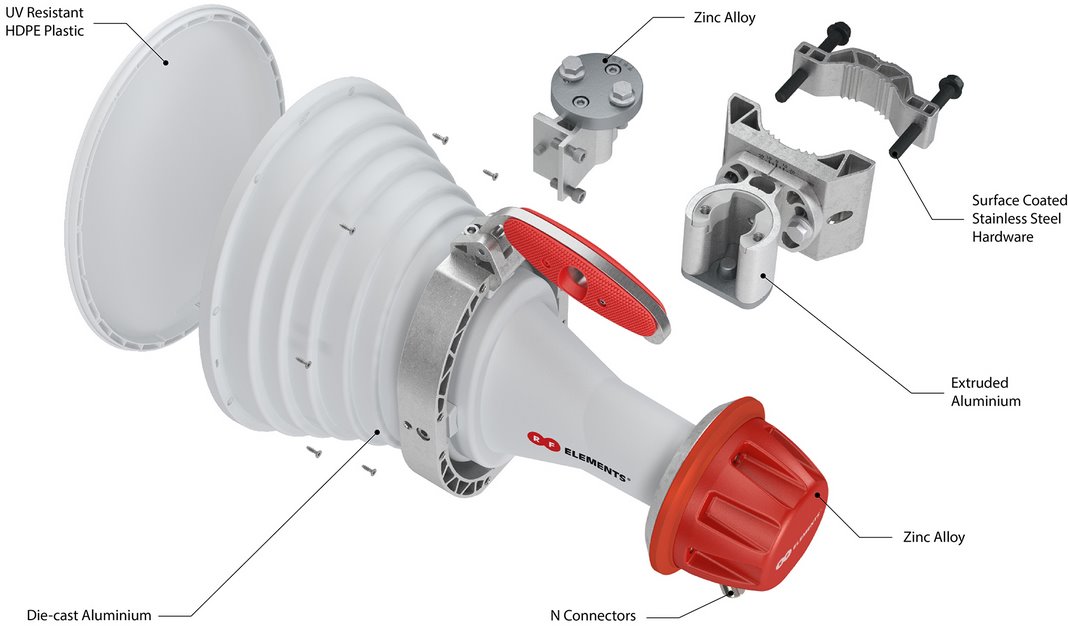

Material: Aluminum, UV stabilized ABS plastic, Stainless steel, Polycarbonate
Weight [kg]: 5,3
Width [mm]: 332
Height [mm]: 391
Depth [mm]: 462
