RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°

RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
×
0/0
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°

Your price excl. VAT
370.86 EUR
Recycling fee 0.40 EUR
Your price with RF 371.26 EUR
Your price incl. VAT (21%) 449.22 EUR
blank
In Stock
PlzeňIn Stock
Availability
at our branches
Manufacturer

RF elements

Code11300378
Part No.AH60-4x4-SMA
Warranty 24 months
You have a choice of 2 variantscompare all
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 17dBi, 60°
60°
AH60-4x4-SMA
370.86 EUR
In Stock
RF elements Asymmetrical Horn Antenna 4x4 MIMO, RSMA, 5GHz, 16dBi, 90°
90°
AH90-4x4-SMA
370.86 EUR
In Stock
  • Related products2
Cambium Networks ePMP 3000 Access Point, 5 GHz
C050910A203A

914.59 EUR excl. VAT
1 106.74 EUR incl. VAT
In Stock
Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mm
PK35S421V100

12.38 EUR excl. VAT
14.98 EUR incl. VAT
In Stock
Parameters
Download

Product description

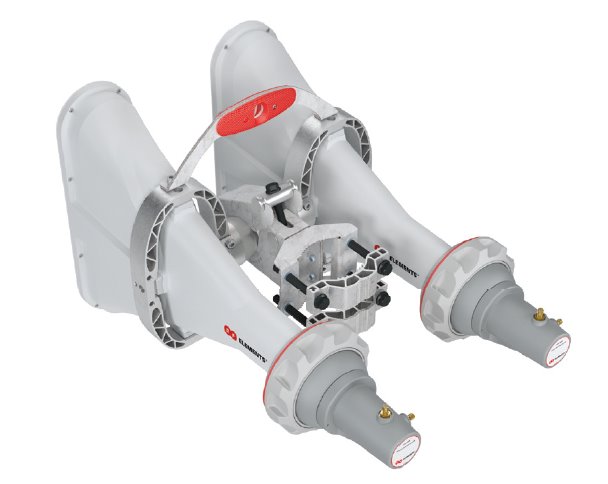

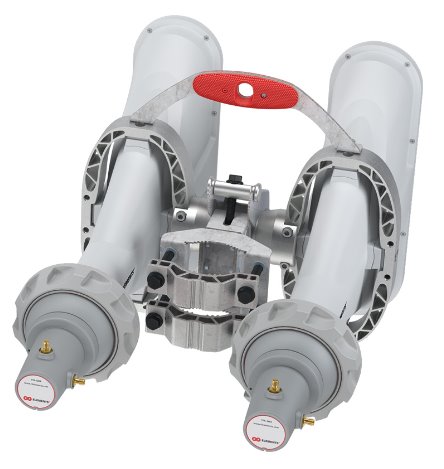

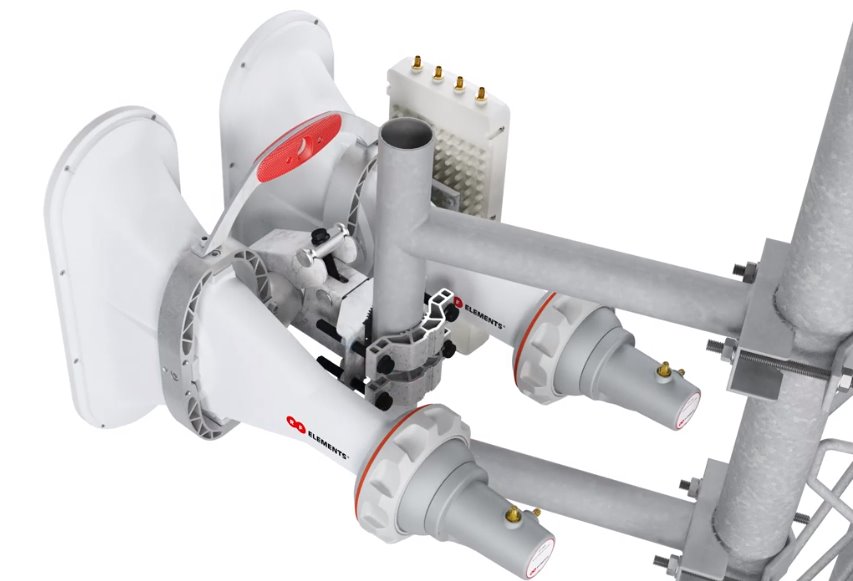

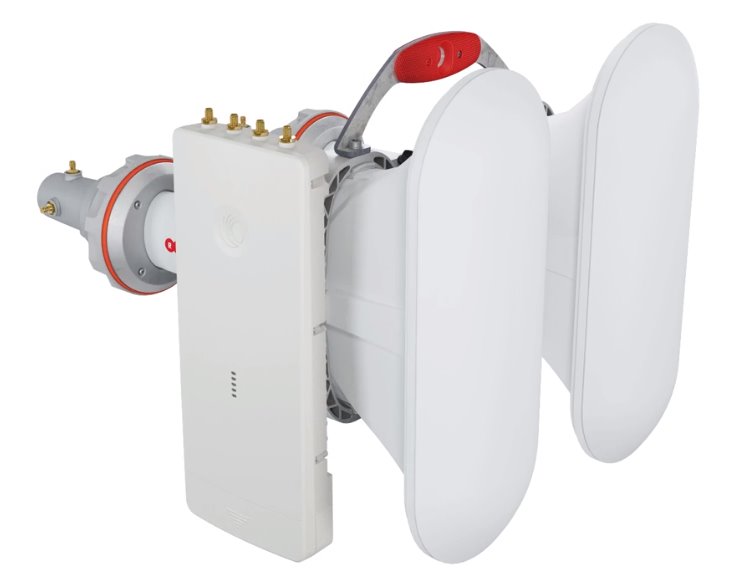

The AH60-4x4-SMA is a 4x4 5GHz sector horn antenna from RF elements, featuring a 60° asymmetrical radiation pattern and a gain of 17dBi. Outstanding noise rejection and precision of the radiation pattern throughout the bandwidth of operation favor the antenna for high-density access point clusters and densely co-located sites. It is equipped with 4x RSMA female connectors for connection to any unit. The antenna can be easily mounted on a mast with a diameter of 40-80mm using an innovative bracket. The mount is separated from the antenna and allow install the bracket on the pole first and after that simply slide the antenna in the bracket. Antenna is equipped with integrated mount for 4x4 connectorized radios, so Cambium Networks radio ePMP 3000 can be easily mounted directly on the antenna.

Key Features

  • 4x4 sector horn antenna
  • 17dBi antenna gain
  • 60° radiation angle
  • Excellent noise rejection
  • Innovative bracket for easy installation
  • Integrated bracket for Cambium ePMP 3000 4x4 units

Package Contents

  • Antenna
  • Bracket

Download

Datasheet

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 4 x 4
Polarization: VH
VSWR: < 1,8
F/B ratio [dB]: 27
Wireless frequency: 5 GHz
Elevation beam width (-6dB) [°]: 25
Azimuth beam width (-6dB) [°]: 60
Antenna type: Sector
Antenna gain [dBi]: 17

Connectors and Interfaces

RF connectors: (4) RSMA female

Physical characteristics

Designed for mast diameter [mm]: 40 up to 80
Wind load [km/h]: 160
Protection class: IP55
Purpose: Outdoor
Material: Aluminum, UV stabilized ABS plastic, Stainless steel, Plastic
Operating temperature [°C]: -35 up to 60
Weight [kg]: 10,4
Width [mm]: 351
Height [mm]: 355
Depth [mm]: 573
