RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi

RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
×
0/0
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi

Your price excl. VAT
131.57 EUR
Recycling fee 0.20 EUR
Your price with RF 131.77 EUR
Your price incl. VAT (21%) 159.44 EUR
blank
In Stock
PlzeňIn Stock
Externí sklad EATo order within 48h
Externí sklad EUTo order within 48h
Availability
at our branches
Manufacturer

RF elements

Code10210169
Part No.AS-5-20
Warranty 24 months
Parameters
Download
Video

Product description

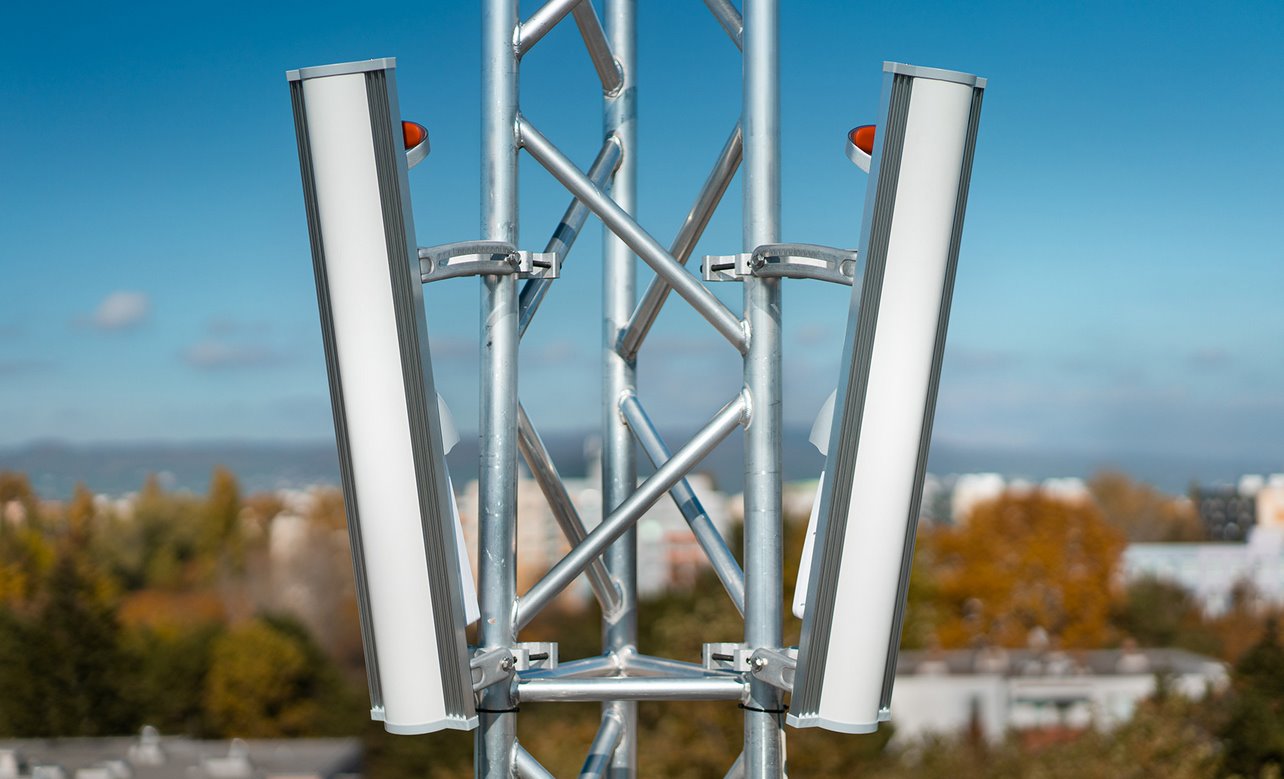

The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications. Sector dualpolarization antenna Array Sector 5-20 from the manufacturer RF Elements operating in the 5 GHz band with 20 dBi gain and a beam angle of 100°. Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.

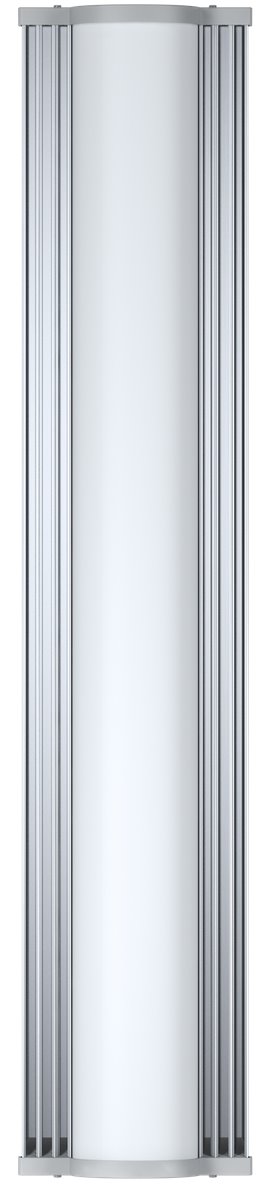

RF elements AS-5-20

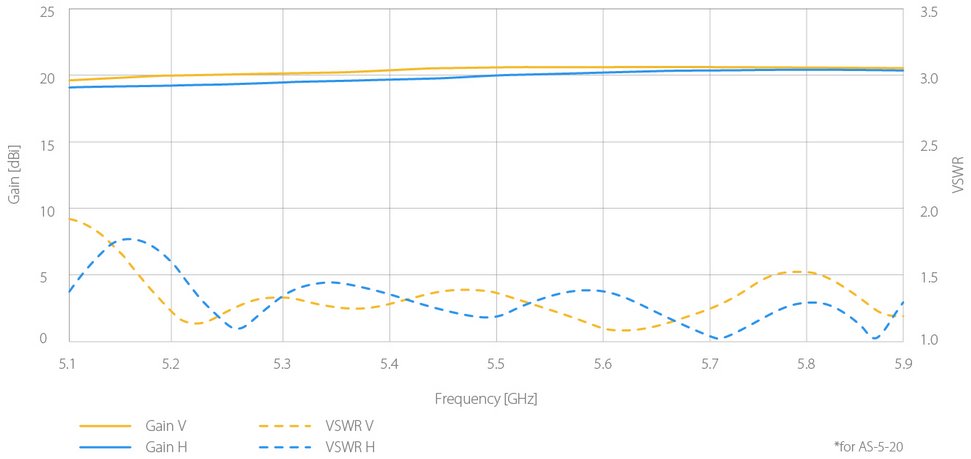

Stable Gain Across The Band

The gain of Array Sector antennas remains very stable across an ultra-wide range of frequencies 5150-5850 MHz. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.

RF elements AS-5-20

Wide Platform Compatibility

Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.

RF elements AS-5-20
  • RF elements - StationBox S, StationBox S CARRIER CLASS, RockShield
  • Ubiquiti - Rocket M5, Rocket M5 Titanium, Rocket 5ac, Rocket 5ac Prism, Rocket 5ac Prism Gen2, airFiber 5X,airFiber 5X-HD, LTU Rocket
  • MikroTik - BaseBox*4, NetBox*4, NetMetal*4
  • TP-Link - Pharos WBS510
  • Cambium Networks - ePMP 1000AP a CSM*1, ePMP 2000AP*2, ePMP 3000L AP*3
  • Mimosa - A5x

Package contains

  • Antenna
  • Holder (mast clamps, screws)
  • Plastic unit cover

Technical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 2 x 2
Polarization: VH
VSWR: < 1,4
F/B ratio [dB]: 30
Cross-Pol Isolation [dB]: 27
Wireless frequency: 5 GHz
Elevation beam width (-6dB) [°]: 3,5
Azimuth beam width (-6dB) [°]: 100
Antenna type: Sector
Antenna gain [dBi]: 20

Connectors and Interfaces

Rocket kit: Yes
RF connectors: (2) RSMA male

Physical characteristics

Designed for mast diameter [mm]: 30 up to 80
Wind load [km/h]: 160
Protection class: IP55
Purpose: Outdoor
Material: Aluminum, Stainless steel
Weight [kg]: 3,5
Width [mm]: 160
Height [mm]: 804
Depth [mm]: 63
