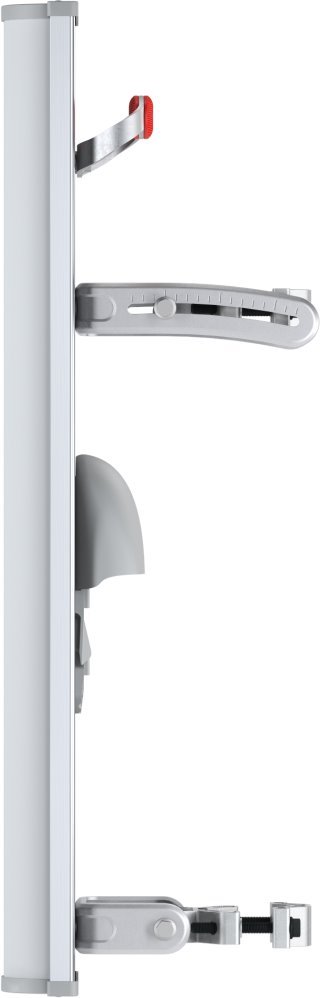

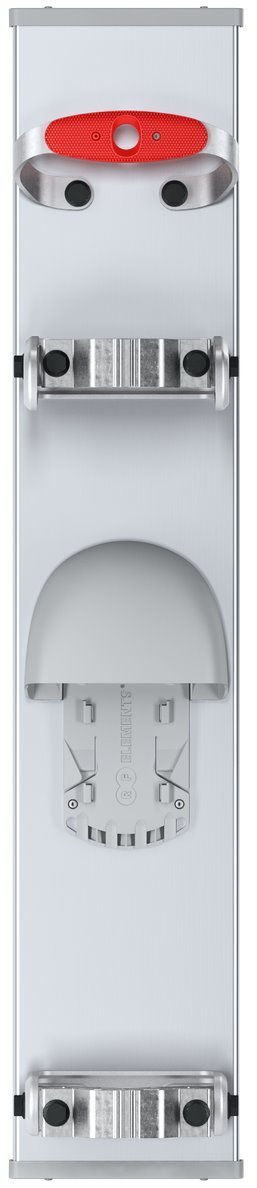

RF elements AS-3-17HV - Array Sector Antenna, 3 GHz, 17dBi
RF elements AS-3-17HV - Array Sector Antenna, 3 GHz, 17dBi
×
0/0
Your price excl. VAT
101.43 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 101.63 EUR |
| Your price incl. VAT (21%) | 122.97 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
RF elements |
|
|---|---|---|
| Code | 10210177 | |
| Part No. | AS-3-17HV | |
| Warranty | 24 months | |
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 1,6
F/B ratio [dB]:
30
Cross-Pol Isolation [dB]:
30
Wireless frequency:
3.5 GHz
Elevation beam width (-6dB) [°]:
9
Azimuth beam width (-6dB) [°]:
118
Antenna type:
Sector
Antenna gain [dBi]:
17
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
(2) RSMA male
Physical characteristics
Designed for mast diameter [mm]:
40 up to 80
Wind load [km/h]:
160
Protection class:
IP55
Purpose:
Outdoor
Material:
Aluminum, UV stabilized ABS plastic, Stainless steel
Operating temperature [°C]:
-35 up to 60
Weight [kg]:
3,9
Width [mm]:
160
Height [mm]:
804
Depth [mm]:
63
Product description
Array Sector 3-17HV dualpolarization antenna from RF Elements operating in the 3 GHz frequency band (3400 - 3800 MHz) with a gain of 17 dBi and a beam angle 118°. An important element built into the antenna structure is the so-called Backshield, which is a frequency reflector built into the antenna structure designed to reduce lateral lobes and back radiation.
Compatibility with radio units
The Array Sector 3-17 sector antenna is compatible with units from Ubiquiti thanks to the Rocket kit - Rocket M3 and Rocket M365.
