Reyee RG-RAP6262 Access point
Your price excl. VAT
| Manufacturer |
Ruijie Networks |
|
|---|---|---|
| Code | 17800025 | |
| Part No. | RG-RAP6262 | |
| Warranty | 36 months | |
ETH-SP-G2
9.53 EUR excl. VAT
11.62 EUR incl. VAT
In Stock
CT-290-48-B
6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.29 EUR excl. VAT
156.44 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ax, 802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
29
Tx power 5GHz [dBm]:
30
Security:
WPA-PSK/WPA2-PSK
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
5
Roaming:
Yes
Antenna gain [dBi]:
3, 4
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 1000Mbps
Power
Power over Ethernet:
802.3at
PoE type:
PoE-In (only)
Max. power consumption [W]:
24
Power via connector/terminal:
12V / 2A
Physical characteristics
Protection class:
IP68
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 65
Weight [g]:
1400
Width [mm]:
230
Height [mm]:
195
Depth [mm]:
230
Software
Operating mode:
Access Point
Default IP address:
Dynamic from DHCP, 10.44.77.253
Default login and password:
Is set by the user at the first startup
Video
Product description

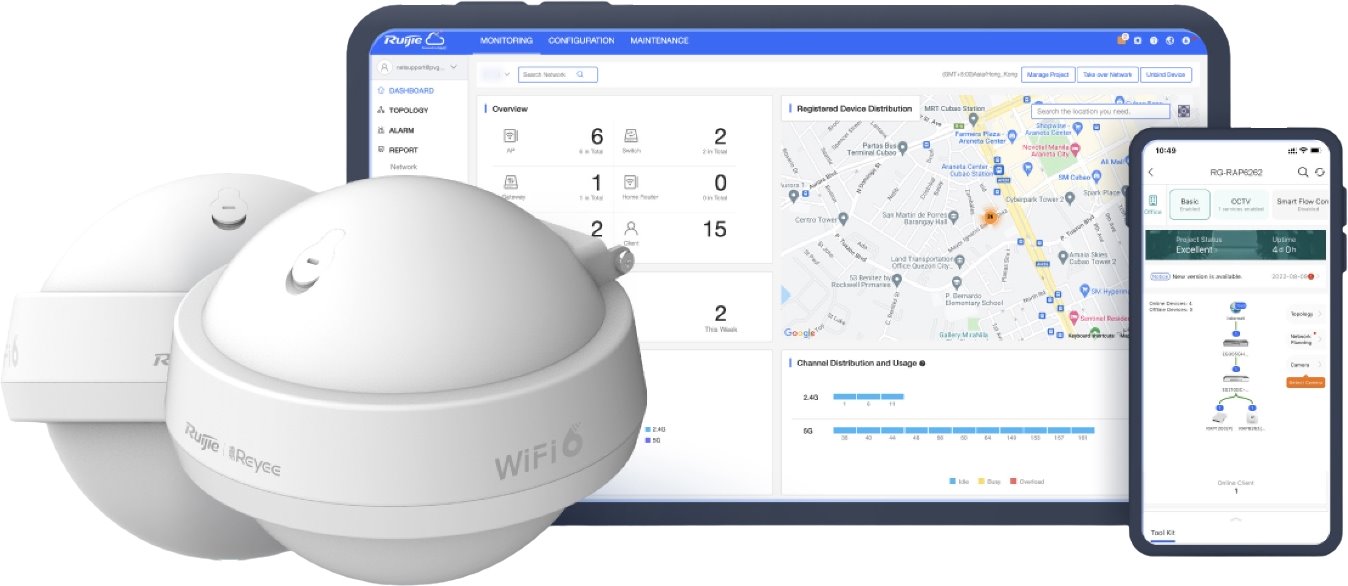

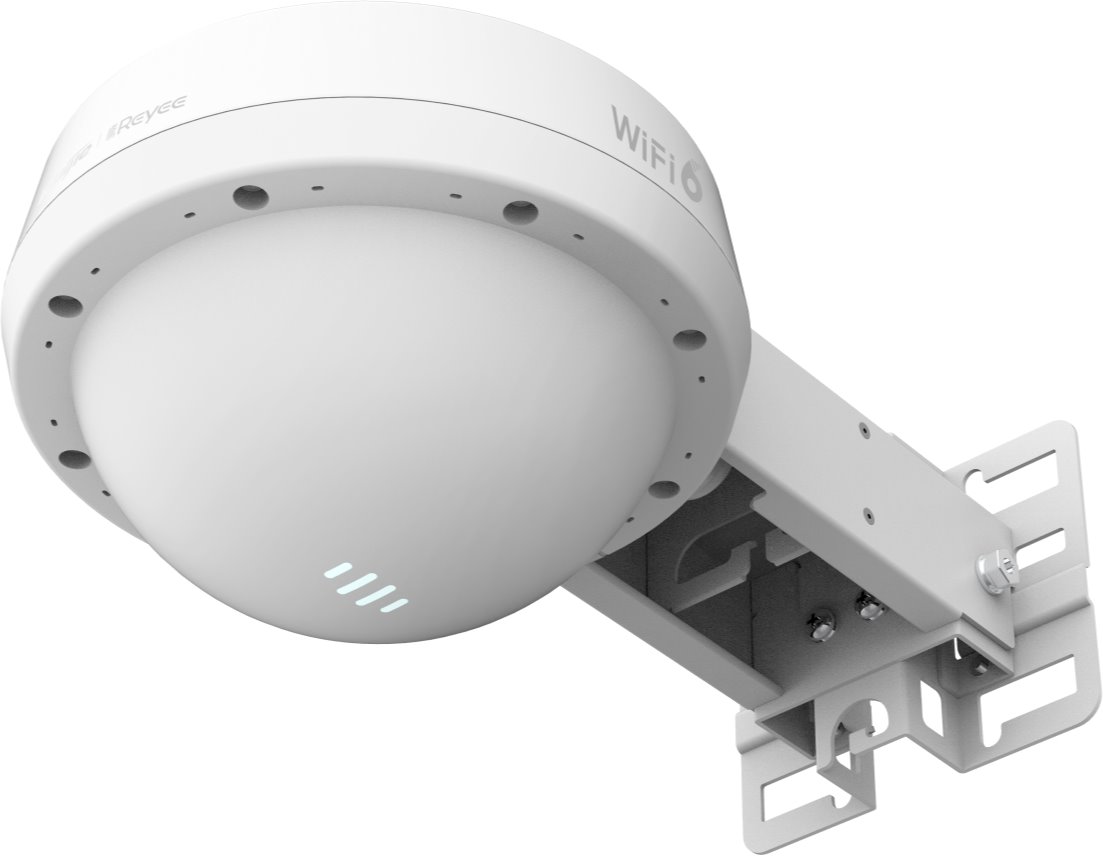

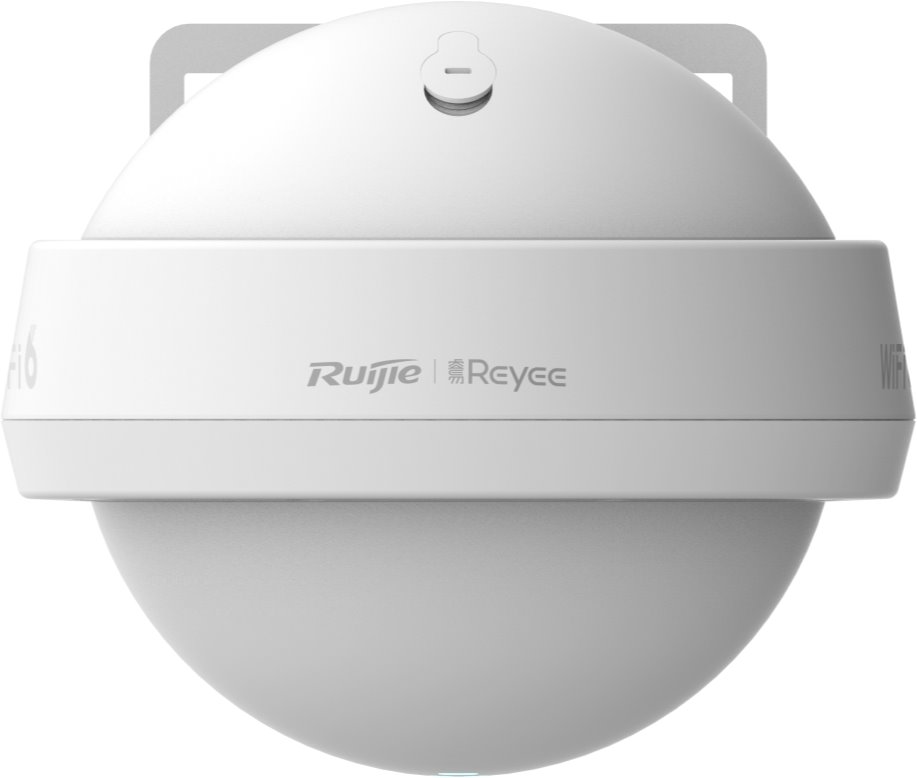

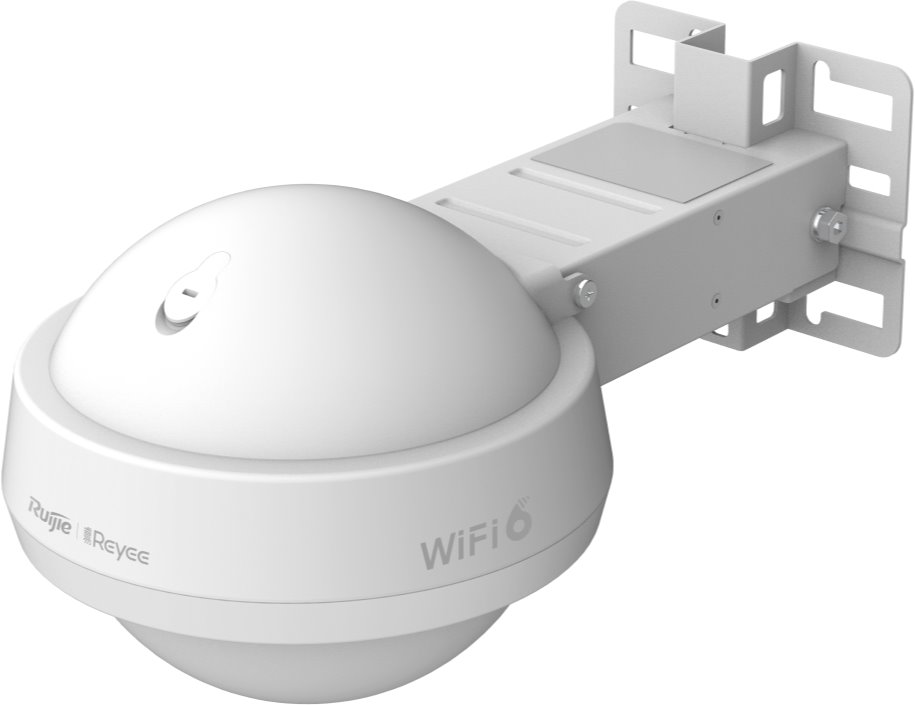

RG-RAP6262 is one of the Wireless Wi-Fi 6 Omnidirectional Access Points fully developed by Ruijie Networks with roaming support for seamless transition between individual APs. The device is equipped with a Gigabit Ethernet port with support for power supply via 802.3at PoE, an optical Gigabit SFP port for connection up to a distance of 20 km and a Dual Band Wi-Fi 6 MU-MIMO radio with modulation speeds 576 Mbps in the 2.4 GHz and 2402 Mbps in the 5 GHz band when using a 160 MHz wide channel. The innovative UFO design allows easy installation in high places.
Main advantages
Package contents
Product is for EU region only
Download
Datasheet Instalační příručkaBussines information
