Reyee RG-RAP2260(E) Access point
Your price excl. VAT
Manufacturer |
Ruijie Networks |
|
---|---|---|
Code | 17800021 | |
Part No. | RG-RAP2260(E) | |
Warranty | 36 months |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ax, 802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
800
Tx power 2.4GHz [dBm]:
23
Tx power 5GHz [dBm]:
23
Security:
WPA-PSK/WPA2-PSK
2.4GHz MIMO:
4 x 4
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Internal antennas:
4
Roaming:
Yes
Antenna gain [dBi]:
3
Connectors and Interfaces
LAN speed:

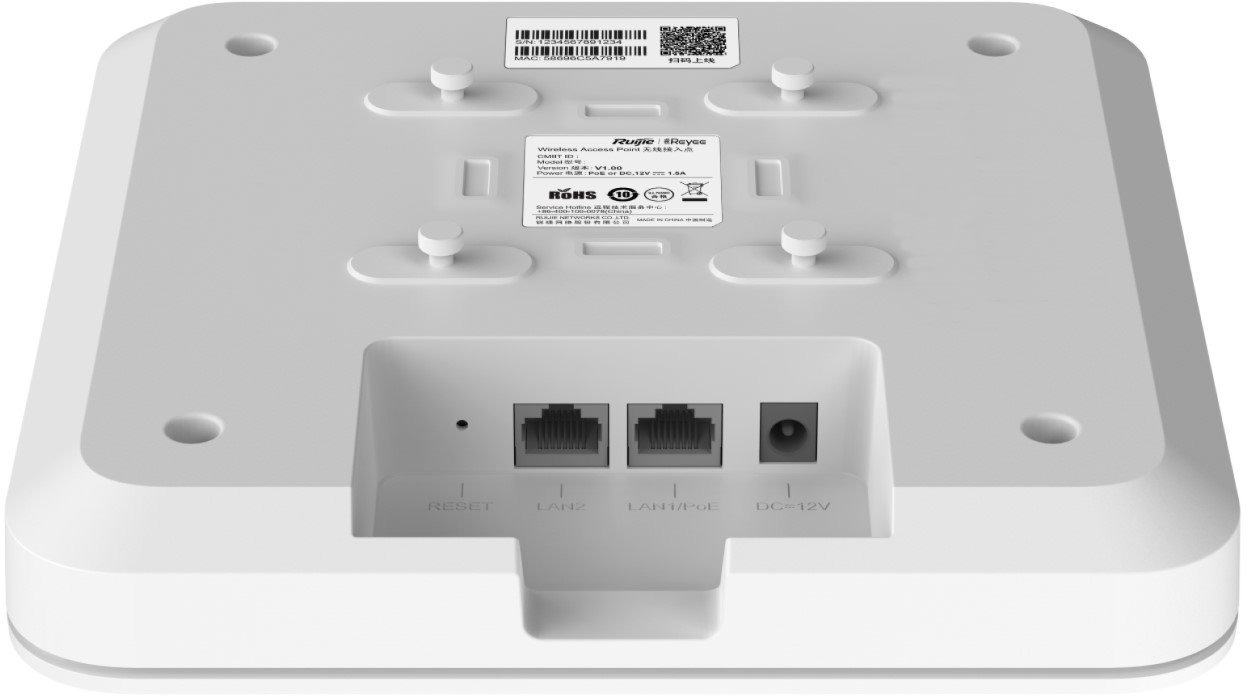

(1) 100/1000/2500Mbps + (1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3at
PoE type:
PoE-In (only)
Max. power consumption [W]:
25,4
Power via connector/terminal:
12V / 1,5A
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
0 up to 40
Weight [g]:
1050
Width [mm]:
220
Height [mm]:
35
Depth [mm]:
220
Software
Operating mode:
AP Router, Access Point
Default IP address:
Dynamic from DHCP, 10.44.77.253
Default login and password:
Is set by the user at the first startup
Product description

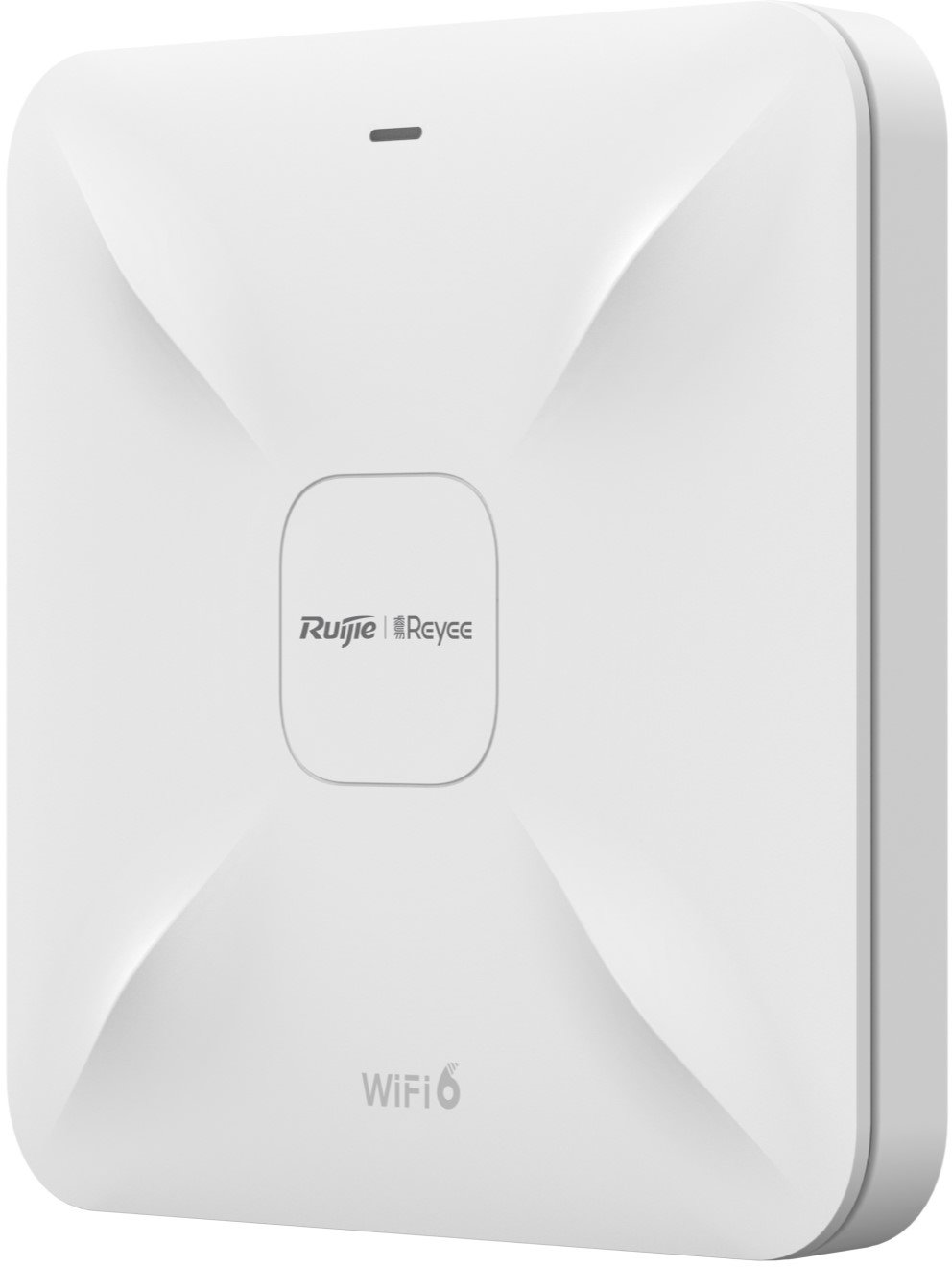

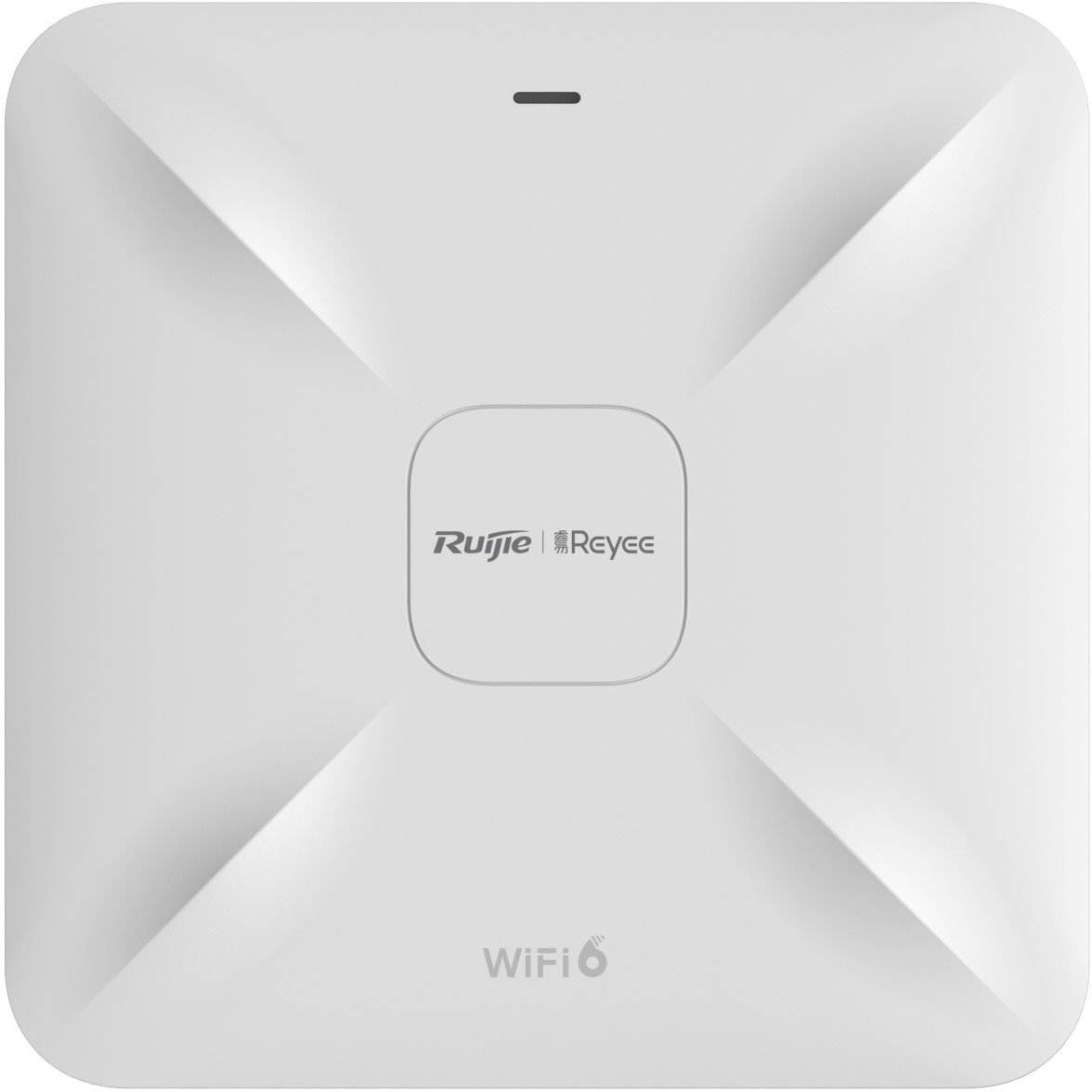

RG-RAP2260(E) is Ruijie Networks wireless Wi-Fi 6 Access Point / AP Router with ceiling or wall mount with full roaming support for seamless transition between APs. The device is equipped with two LAN ports (1x Gigabit, 1x 2.5-Gigabit) of which the 2.5-Gigabit port supports power supply via 802.3at PoE, Dual Band Wi-Fi 6 4x4 MU-MIMO radio with modulation speeds 800 Mbps in 2.4 GHz and 2402 Mbps in the 5 GHz band.
Main advantages
Package contents
Product is for EU region only
