Reyee RG-RAP1200(F) Access point
Your price excl. VAT
| Manufacturer |
Ruijie Networks |
|
|---|---|---|
| Code | 17800039 | |
| Part No. | RG-RAP1200(F) | |
| Warranty | 36 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
400
Tx power 2.4GHz [dBm]:
19
Tx power 5GHz [dBm]:
18
Security:
WPA-PSK/WPA2-PSK
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
2
Connectors and Interfaces
LAN speed:
(2) 10/100Mbps
Power
Power over Ethernet:
802.3af
PoE type:
PoE-In (only)
Max. power consumption [W]:
8
Physical characteristics
Purpose:
Indoor
Operating temperature [°C]:
0 up to 40
Weight [g]:
50
Width [mm]:
86
Height [mm]:
86
Depth [mm]:
29
Software
Operating mode:
AP Router, Access Point
Default IP address:
Dynamic from DHCP, 10.44.77.253
Default login and password:
Is set by the user at the first startup
Video
Product description

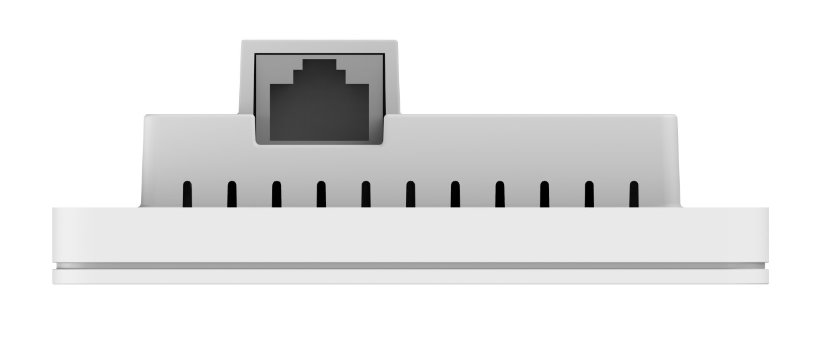

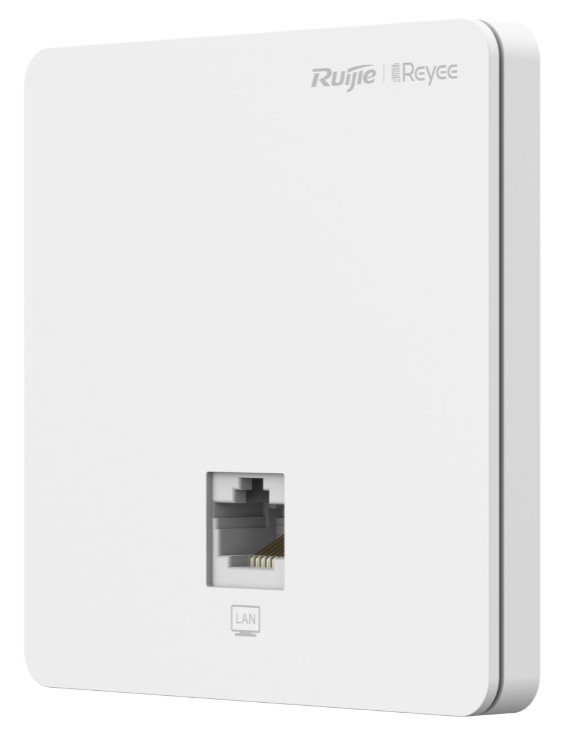

RG-RAP1200(F) is a Wall Mounted Wireless Wi-Fi 5 Access Point / AP Router from Ruijie Networks with full roaming support for seamless transition between APs. The device is equipped with two LAN ports (1 at the front, 1 at the back) of which the port at the back supports power supply via 802.3af PoE, Dual Band Wi-Fi 5 2x2 MU-MIMO radio with modulation speeds 400 Mbps in 2.4 GHz and 866 Mbps in the 5 GHz band.
Main advantages
Package contents
Product is for EU region only
