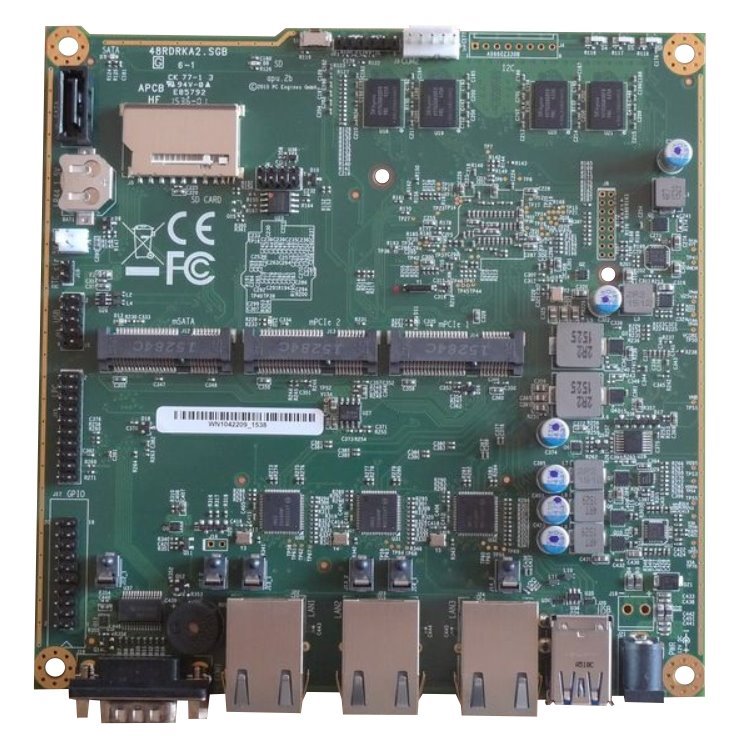

PC Engines APU.2E4 system board, 4GB RAM

Product description

Thanks to the modular architecture of Alix, this piece of hardware can be used on more than 50 different embedded applications, both broadband management, security applications (firewall) and routing. Boards can also be mounted in multimedia applications as well as on wireless points or VPN gateways. All Alix models are compatible with Mikrotik.

• CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
• DRAM: 4 GB DDR3-1333 DRAM
• Storage: Boot from SD card (internal sdhci controller), external USB or m-SATA SSD. 1 SATA + power connector.
• 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
• Connectivity: 3 Gigabit Ethernet channels (Intel i211AT on apu2b2, i210AT on apu2b4)
• I/O: DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton
• Expansion: 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD)
• Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e.
• Firmware: coreboot
• Cooling: Conductive cooling from the CPU and south bridge to the enclosure using a 3 mm alu heat spreader (included)
