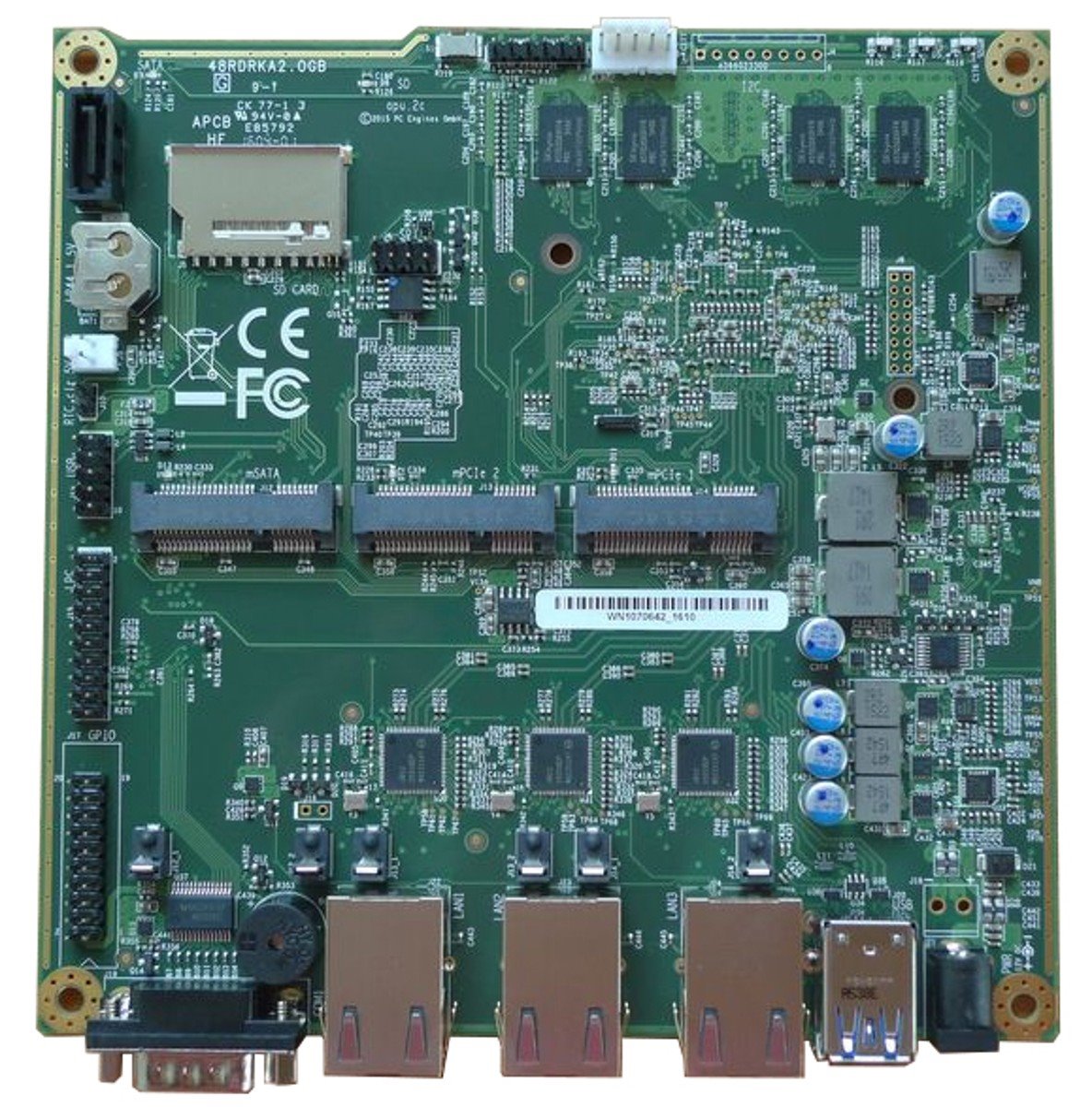

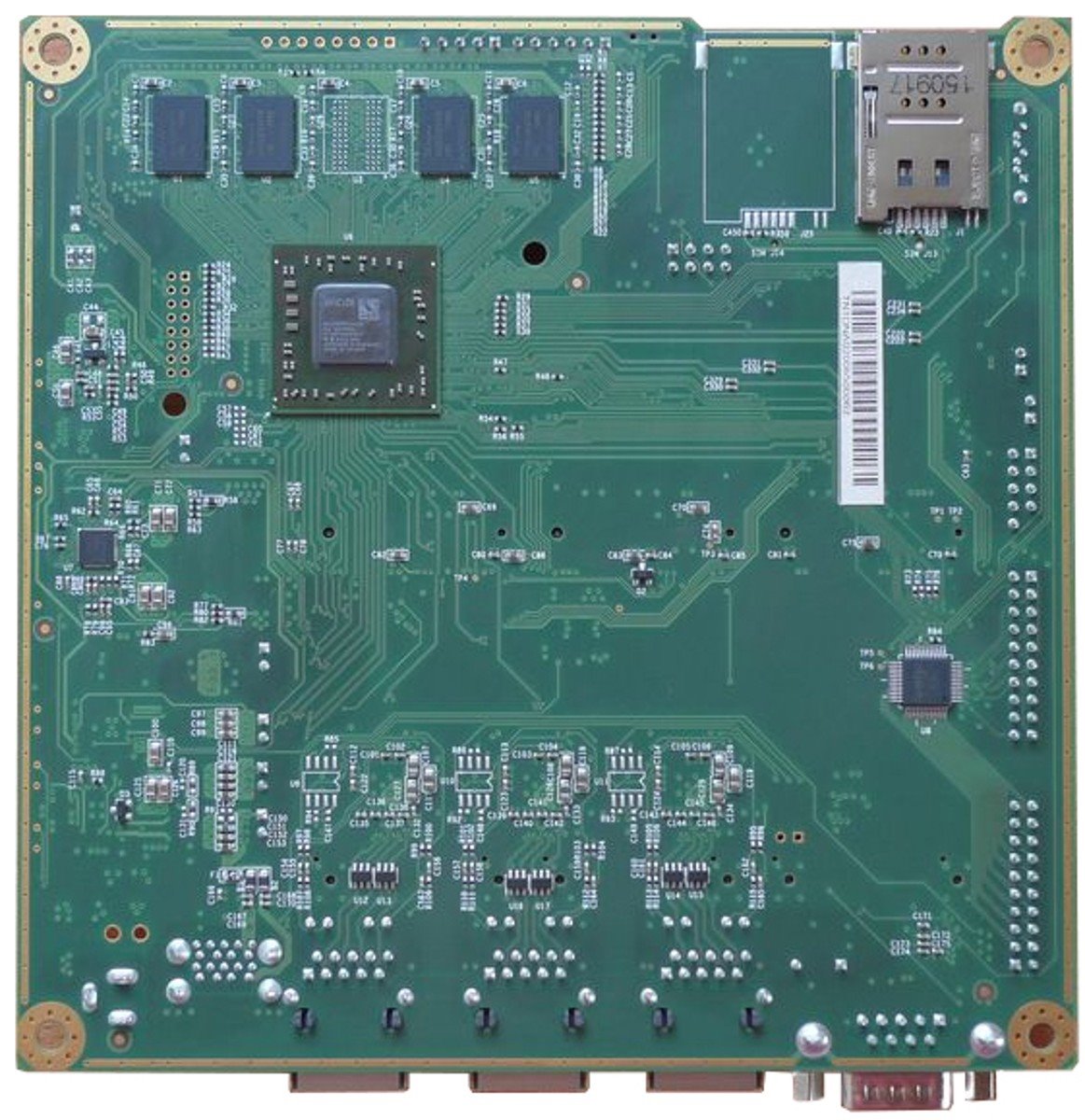

PC Engines APU.2E2 system board, 2GB RAM

Product description

Thanks to Alix's modular architecture, this piece of hardware can be used on more than 50 different built in device applications, both broadband management and firewall and routing applications.The boards can also be installed in multimedia applications as well as on wireless points or VPN gateways.

Improvements over the previous version

2c) Integrate blue wire patches (EMI, power-up circuit) into PCB fab.

2d) Reduction of leakage current between power collectors V3 and V3A (may cause problems with SD cards). Better compatibility with LTE modems.

2e) We resized the battery socket in order to avoid contact issues. Use a signal integrity resistor to control the core voltage signal.

Specifications

• CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache
• DRAM: 2GB DDR3-1333 DRAM
• Storage: Boot from m-SATA SSD, SD card (internal sdhci controller), or external USB. 1 SATA + power connector
• 12 V DC, about 6 to 12 W depending on CPU load. Jack = 2.5 mm, center positive
• Connectivity: 3 Gigabit Ethernet channels (Intel i211AT)
• I/O: DB9 serial port, 2 USB 3.0 external + 2 USB 2.0 internal, three front panel LEDs, pushbutton
• Expansion: 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD)
• Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e
• Firmware: coreboot (please contact support@pcengines.ch for source code if desired)
• Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included)
