Mimosa N5-X30, dish Twist-on antenna, 30dBi, 600mm - 2-pack
Mimosa N5-X30, dish Twist-on antenna, 30dBi, 600mm - 2-pack
×
0/0
New product
Your price excl. VAT
592.33 EUR
| Recycling fee | 0.20 EUR |
|---|---|
| Your price with RF | 592.53 EUR |
| Your price incl. VAT (21%) | 716.96 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | 10160103 | |
| Part No. | 100-00124(N5-X30) | |
| Warranty | 24 months | |
100-00101(C5x IP67)
112.18 EUR excl. VAT
135.82 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
MIMO, SISO:
2 x 2, 2 x 2 (slant - 45° turned)
Polarization:
VH, VH (slant)
F/B ratio [dB]:
35
Cross-Pol Isolation [dB]:
30
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
5
Azimuth beam width (-6dB) [°]:
5
Antenna type:
Directional
Antenna gain [dBi]:
30
Connectors and Interfaces
RF connectors:
Twist-on port (Mimosa)
Physical characteristics
Designed for mast diameter [mm]:
30 up to 80
Purpose:
Outdoor
Material:
Aluminum
Weight [kg]:
6,5
Width [mm]:
600
Height [mm]:
600
Depth [mm]:
330
Product description

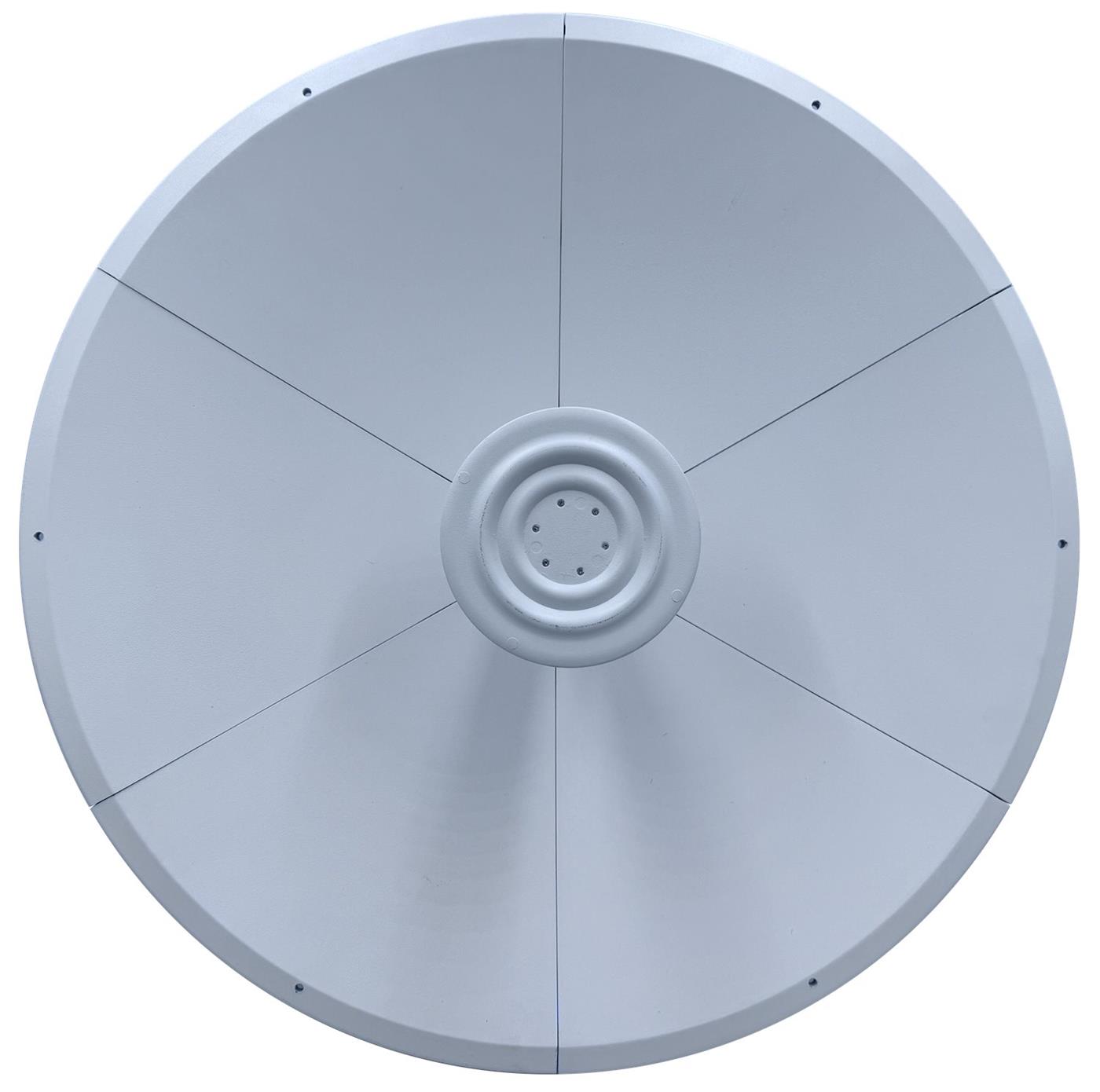

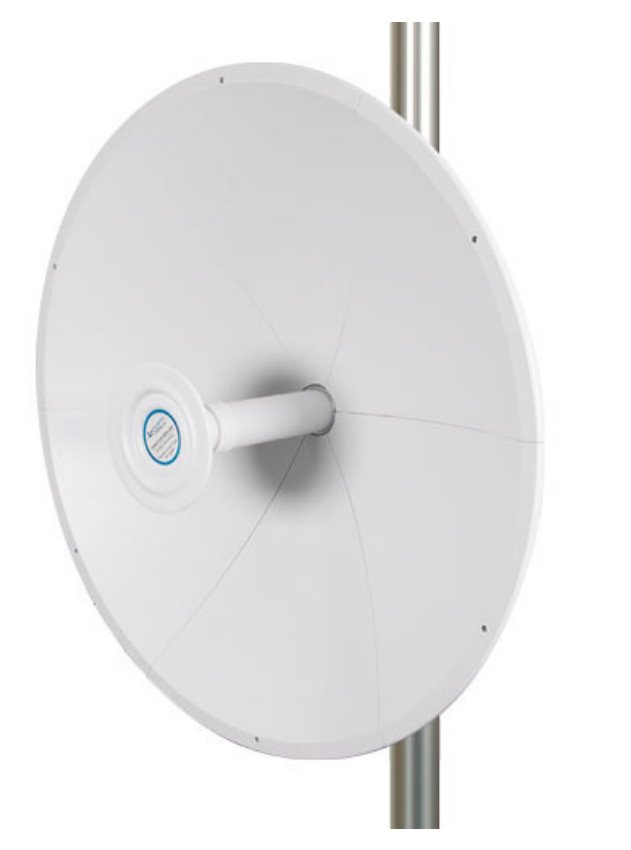

N5-X30 is a versatile dish antenna with a gain of 30dBi and a beamwidth of 5° for use with C5x, C6x, and B5x units. The units connect to the antenna using a Twist-on connector, which eliminates losses caused by RF cabling and connectors.
The antenna supports vertical/horizontal or ±45 degree slant polarizationt. Antenna is sold as 2-pack.
