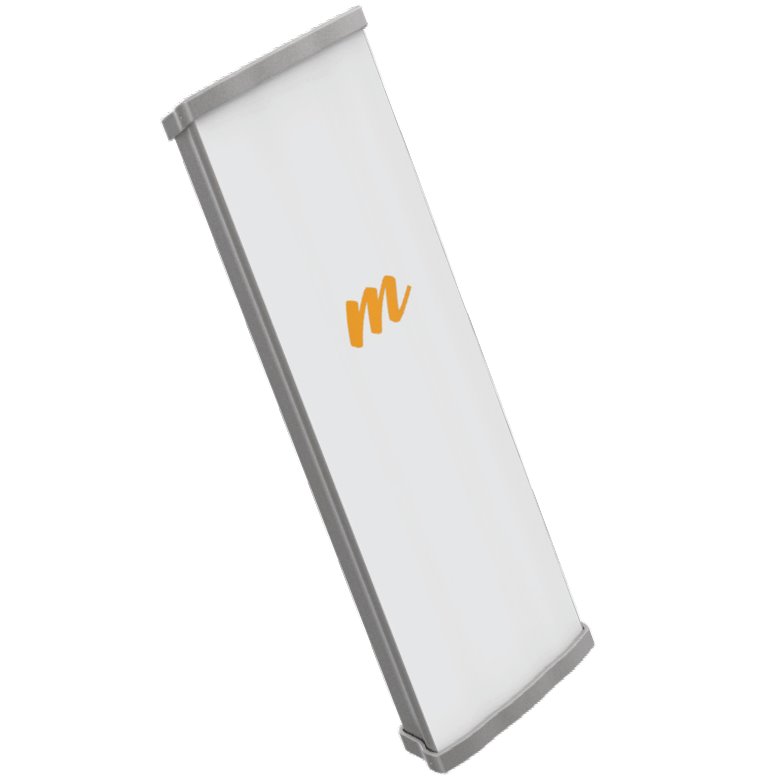

Mimosa N5-45x2, sector slant antenna 45°, 19dBi, 2x N female
Your price excl. VAT
259.40 EUR
Recycling fee | 0.20 EUR |
---|---|
Your price with RF | 259.60 EUR |
Your price incl. VAT (21%) | 314.12 EUR |
blank |
Availability
at our branches
at our branches
Manufacturer |
Mimosa |
|
---|---|---|
Code | 10160091 | |
Part No. | 100-00083(N5-45x2) | |
Warranty | 24 months |
You have a choice of 4 variantscompare all

Nové/New - 19dBi, 2x N female
100-00083(N5-45x2)
259.40 EUR

S2501
6.70 EUR excl. VAT
8.11 EUR incl. VAT
In Stock

100-00107(A5x)
300.98 EUR excl. VAT
364.27 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2 (slant - 45° turned)
Polarization:
VH (slant)
Cross-Pol Isolation [dB]:
30
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
9
Azimuth beam width (-6dB) [°]:
45
Antenna type:
Sector
Antenna gain [dBi]:
19
Connectors and Interfaces
RF connectors:
(2) N female
Physical characteristics
Designed for mast diameter [mm]:
38 up to 90
Wind load [km/h]:
200
Purpose:
Outdoor
Weight [kg]:
4,7
Width [mm]:
143
Height [mm]:
427
Depth [mm]:
76
Product description
The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications. All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.

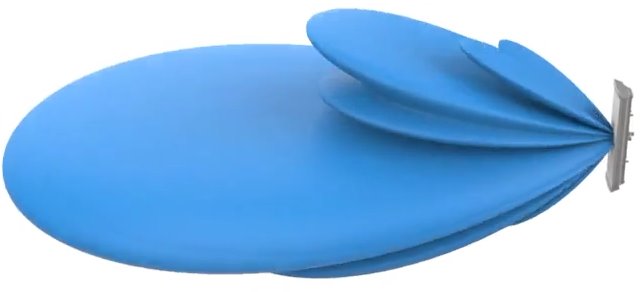

No Sidelobes
Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42o half-power beamwidth with non-existent side lobes.
Industry’s Highest Front-to-Back Ratio
With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.

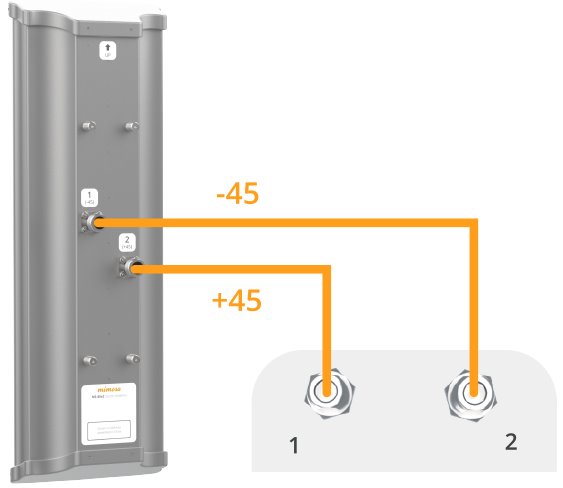

Supports Third-Party Access Points
Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.
Package contains
Download
DatasheetGPSR
