Mimosa G2 PoE, Wi-Fi gateway
We are sorry, this product is no longer in our offer.
Mimosa G2 PoE, Wi-Fi gateway
×
0/0
Sale
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-88
Wireless frequency:
2.4 GHz
WiFi standards:
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
16
Security:
WEP, WPA, WPA2
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Connectors and Interfaces
WAN speed:
(1) 10/100/1000Mbps
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
PoE type:
PoE-Out (only)
Max. power consumption [W]:
14
Power via connector/terminal:
230V AC (directly to the wall outlet)
Physical characteristics
Purpose:
Indoor
Operating temperature [°C]:
0 up to 40
Weight [g]:
147
Width [mm]:
57
Height [mm]:
92
Depth [mm]:
42
Software
Operating mode:
AP Router, Access Point, Repeater, Range Extender
Default login and password:
Is set by the user at the first startup
Product description

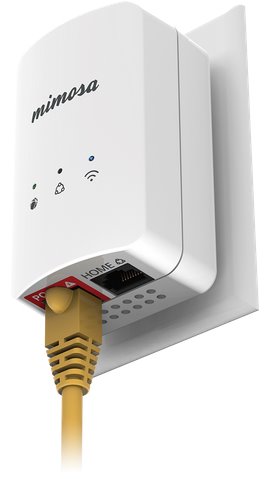

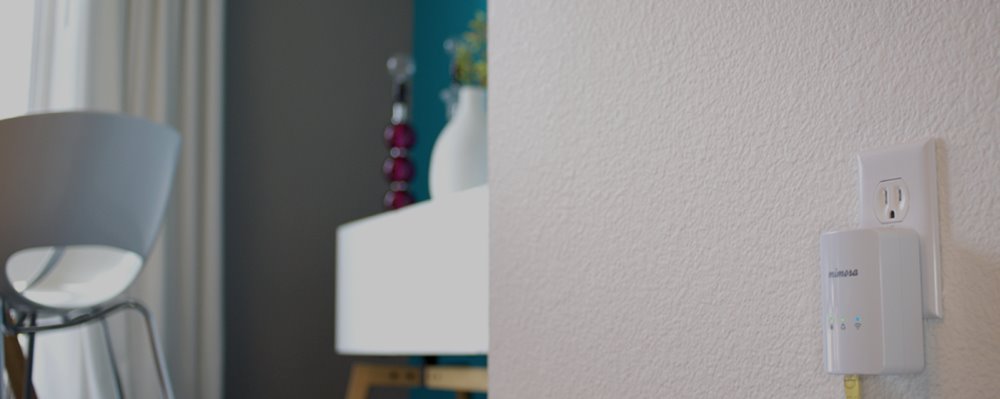

The Mimosa G2 Gateway is an elegant and compact Wi-Fi Gateway that simplifies in-home managed broadband delivery. Designed to easily install directly into an AC wall plug, the Mimosa G2 also provides integrated Power over Ethernet for powering Mimosa C5 client premise devices. Offering superior indoor Wi-Fi range, the Cloud-managed Mimosa G2 is designed to extend the managed broadband infrastructure all the way to the subscriber’s mobile and fixed Wi-Fi devices.
Cloud Managed and Quality Aware

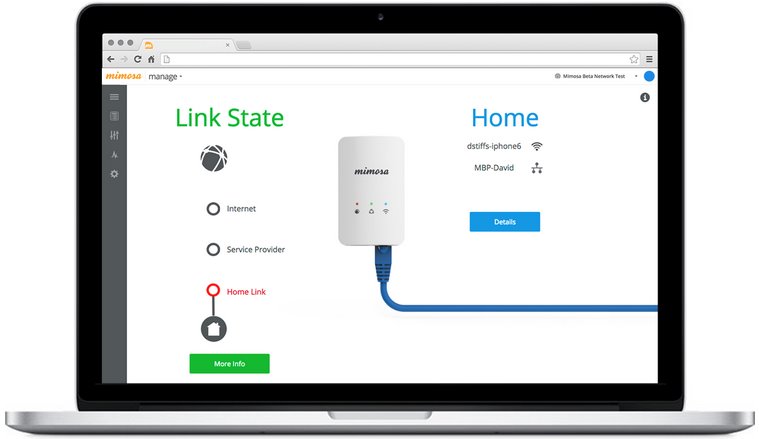

The cloud managed G2 enables you to offer a full end-to-end managed Wi-Fi service. Stay informed about your customer's Wi-Fi client signal health and Internet quality and put an end to unnecessary truck rolls for common support calls. Even time consuming tasks like RF troubleshooting and bulk software upgrades are a breeze. The G2 maintains visibility into the critical components required to keep Internet service operating properly and notifies consumers of issues.
Plug 'n Play

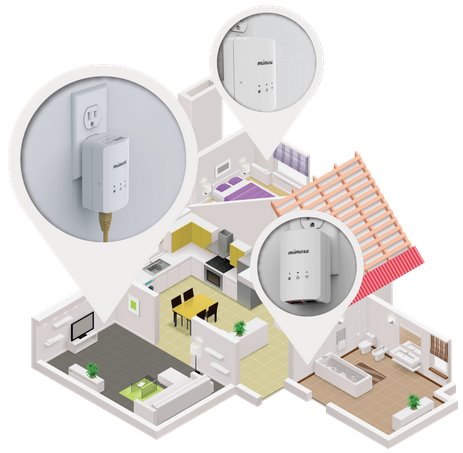

Most homes have hard-to-reach Wi-Fi spots. Easily fill coverage holes by adding additional Mimosa G2 Gateways; auto-setup quickly pairs with the master G2 to easily extend Wi-Fi coverage.
Package contains
Download
Datasheet Firmware Product overviewGPSR
