Mimosa C5, client unit, 866Mbps, 20dBi
We are sorry, this product is no longer in our offer.
Mimosa C5, client unit, 866Mbps, 20dBi
×
0/0
Special offer
100-00039(NID)
14.50 EUR excl. VAT
17.63 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.47 EUR excl. VAT
4.20 EUR incl. VAT
Expected 5.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-93
Cross-Pol Isolation [dB]:
20
Maximum modulation:
256 QAM
Wireless frequency:
5 GHz
WiFi standards:
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
20
Security:
WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
Elevation beam width (-6dB) [°]:
14
Azimuth beam width (-6dB) [°]:
14
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
20
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
GPS modul:
Yes
Power
Power over Ethernet:
48 .. 56V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Physical characteristics
Purpose:
Outdoor
Collar:
Yes
Operating temperature [°C]:
-40 up to 55
Weight [g]:
720
Width [mm]:
260
Height [mm]:
260
Depth [mm]:
153
Software
Operating mode:
Client
Default IP address:
192.168.1.20
Default login and password:
Is set by the user at the first startup
Product description

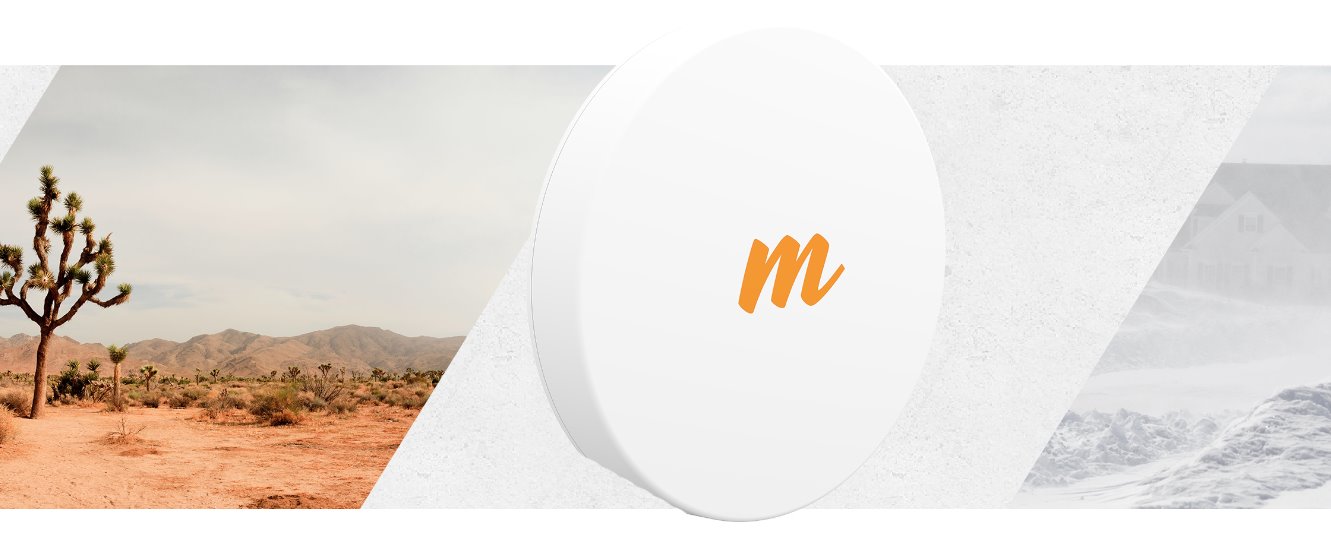

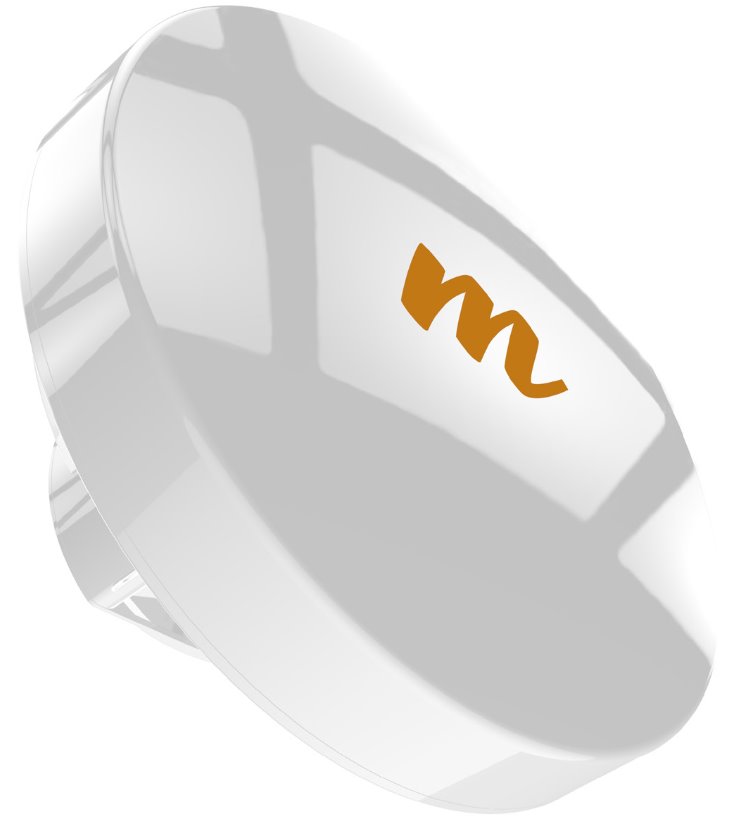

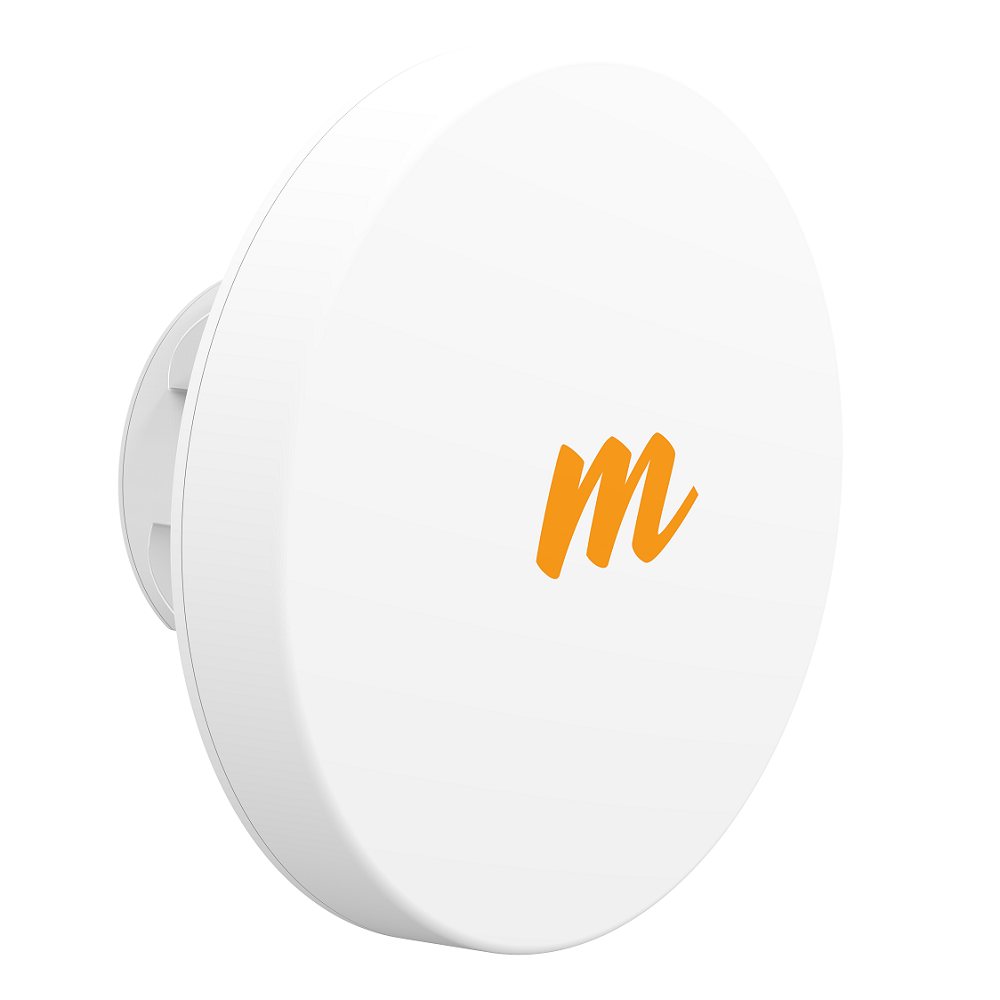

The Mimosa C5 is an easy, rugged and blazing fast endpoint client device for the most deployment applications in the highly scalable Mimosa C5 multipoint solution. Incorporating unique Multi-User MIMO technology, and TDMA client technology for the Mimosa GPS sync enabled network, the C5 enables the fastest speeds and most scalable wireless access solution available today.
Compact But Powerful

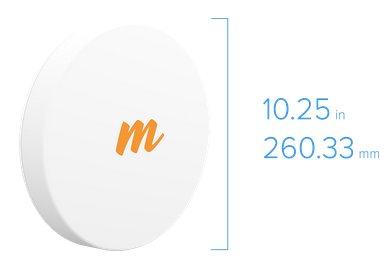

The attractive C5 design delivers incredible range with only a 10.25 in (260 mm) diameter integrated antenna. With cutting edge dual 45o slant polarization design and aperture efficiency of greater than 50%, the C5 delivers 20 dBi antenna gain in the smallest design possible.
TDMA GPS Sync Client
Client-side support for the Mimosa C5 multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point, and can dynamically request upstream bandwidth. As opposed to alternative reserved (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.
Multi-User MIMO
Coming soon. A key component to scaling network efficiency is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum "spatially" via unique antenna beamforming. Each client device collaborates spatial geographic information with its associated Mimosa C5 device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.
Rugged and Affordable
Protection from harsh environments now comes at an affordable cost. The C5 includes a unique cable boot environment protector and sealing gel, and accommodates installation practices for unterminated and pre-terminated RJ-45 cable connectors.
Obsah balení
Download
Datasheet Firmware Product overviewGPSR
