Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)

Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
×
0/0
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)

Your price excl. VAT
1 792.41 EUR
Recycling fee 0.07 EUR
Your price with RF 1 792.48 EUR
Your price incl. VAT (21%) 2 168.90 EUR
blank
Expected 30.12.2024
PlzeňExpected 30.12.2024
Availability
at our branches
Manufacturer

Mimosa

Code10160005
Part No.100-00036(B11)
Warranty 24 months
  • Related products14
Jirous JRMC-1200-10 / 11 Mi Parabolic antenna with precision holder for Mimosa units
JRMC-1200-10/11 Mi

757.61 EUR excl. VAT
917.19 EUR incl. VAT
Not in stock
Jirous JRMC-1800-10 / 11 Mi Parabolic antenna with precision holder for Mimosa units
JRMC-1800-10/11 Mi

2 493.48 EUR excl. VAT
3 017.59 EUR incl. VAT
Not in stock
Jirous JRMC-680-10 / 11 Mi Parabolic antenna with precision holder for Mimosa units
JRMC-680-10/11 Mi

260.02 EUR excl. VAT
315.11 EUR incl. VAT
Not in stock
Jirous JRMC-900-10 / 11 Mi Parabolic antenna with precision holder for Mimosa units
JRMC-900-10/11 Mi

453.93 EUR excl. VAT
549.74 EUR incl. VAT
In Stock
Jirous JRMD-1200-10 / 11 Mi Parabolic antenna with precision holder for Mimosa units
JRMD-1200-10/11 Mi

736.26 EUR excl. VAT
891.36 EUR incl. VAT
Not in stock
Jirous JRMD-400-10 / 11 Mi Parabolic antenna with precision holder for Mimosa units
JRMD-400-10/11 Mi

169.20 EUR excl. VAT
205.22 EUR incl. VAT
Not in stock
Jirous JRMD-680-10 / 11 Mi Parabolic antenna with precision holder for Mimosa units
JRMD-680-10/11 Mi

243.18 EUR excl. VAT
294.73 EUR incl. VAT
Not in stock
Jirous JRMD-900-10 / 11 Mi Parabolic antenna with precision holder for Mimosa units
JRMD-900-10/11 Mi

429.81 EUR excl. VAT
520.55 EUR incl. VAT
Not in stock
Ubiquiti ETH-SP-G2 - Ethernet Surge Protector, max. 10kA
ETH-SP-G2

9.85 EUR excl. VAT
12.00 EUR incl. VAT
In Stock
Cable ties black 29cm, 4,8mm width, 100pcs
CT-290-48-B

6.29 EUR excl. VAT
7.61 EUR incl. VAT
In Stock
Masterlan Comfort FTP outdoor wire cable Cat5e, PE, 24AWG, 305m
OFTP5E24-MSC

129.26 EUR excl. VAT
156.40 EUR incl. VAT
In Stock
Masterlan AE fiber optic outdoor patch cord, LCupc/LCupc, Duplex, Singlemode 9/125, 20m
LCupc/LCupc-SMD20out

25.82 EUR excl. VAT
31.24 EUR incl. VAT
Not in stock
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
show moreshow less 9
Parameters
Download
Video

Product description

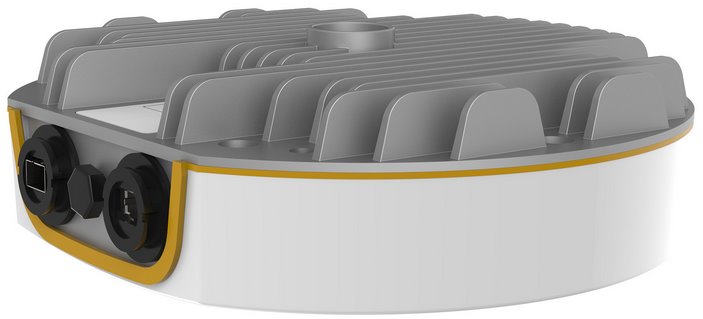

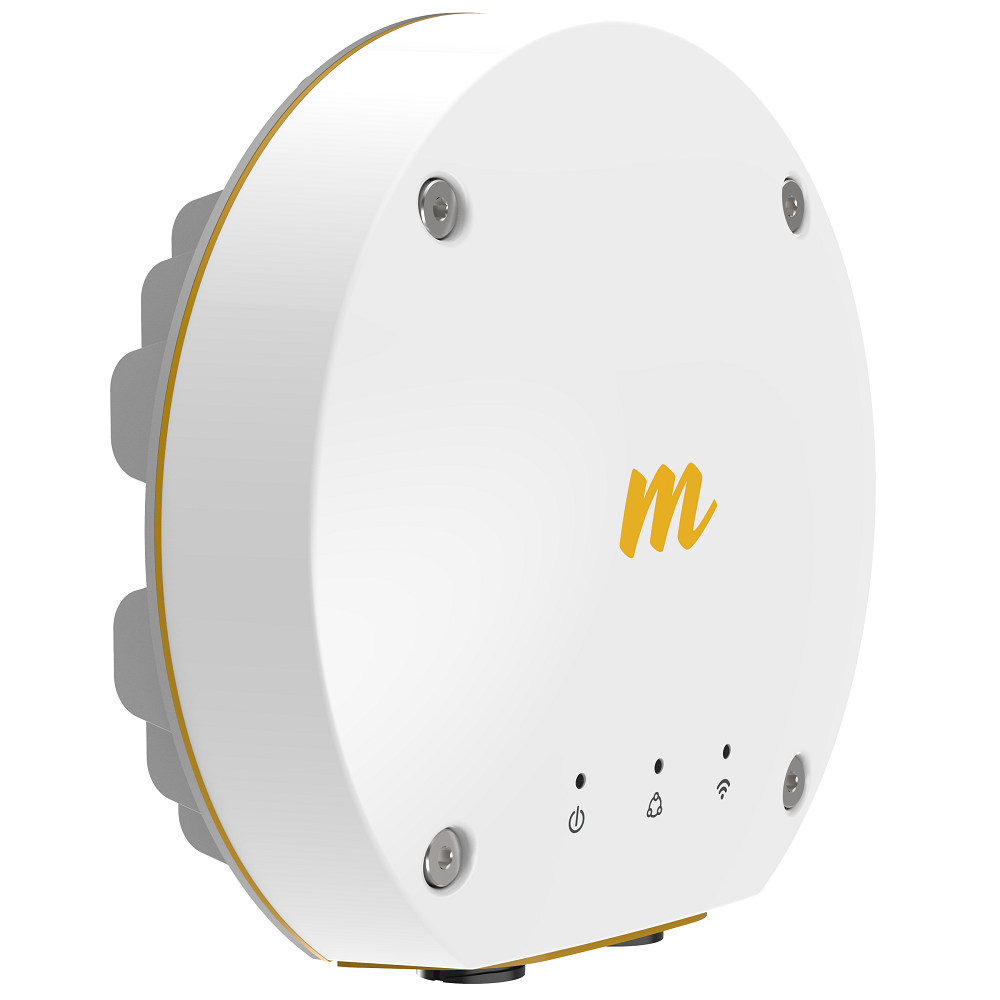

Mimosa’s B11 backhaul radio is designed for the modern Internet era, adapting instantly to variable upstream and downstream bandwidth requirements at the lowest cost per Mbps in the industry.

Just Add Fiber

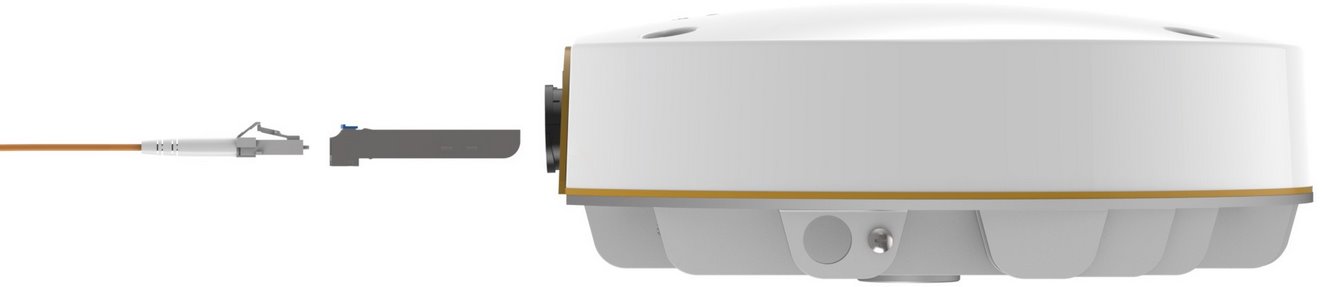

Fiber to wireless is the future of connectivity, and the B11 is ready for it. Simply add your preferred SFP module and you’ll be lit up with gigabit fiber speeds. If you’re not quite ready for fiber, the B11 also offers a standard Gigabit Power-over-Ethernet connection.

Mimosa B11

Bandwidth Changes like Night & Day

During peak evening hours, downloads and video streaming now represent nearly 90% of traffic, while daytime symmetric services and prioritized upstream traffic are as critical as ever to businesses. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized. The B11, however, can dynamically adapt to bandwidth demand using Auto-TDMA technology, maximizing spectrum utilization throughout the day.

Mimosa B11

Precision Engineered for Reliability

Licensed spectrum has always been preferred for its increased link reliability. Now, with the precision engineering of the B11, you can enjoy spectrum efficiency, incredible industry-leading stability, and for the first time groundbreaking dynamic bandwidth control.

Mimosa B11

Right on Target

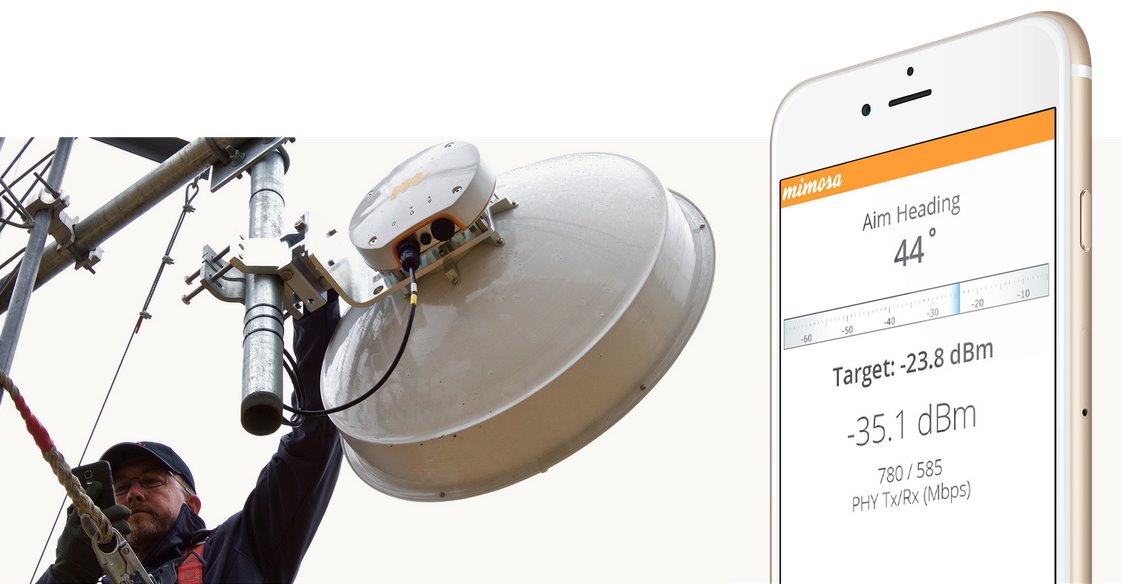

In the past, aiming your antenna to find the best signal was more art than science. We’ve taken the guesswork out of antenna aiming by adding 2.4 GHz Wi-Fi right in the radio, turning any smartphone into the most sophisticated aiming tool on the planet! Now installers can both view radio details and target signal levels instantaneously with the most precise aiming technology available in the industry.‡

Mimosa B11

Package contains

  • B11 Unit
  • PoE power adapter 56V/0.93A
  • Power cord
  • Screws
  • (2) Cable gland

Bussines information

Dan Pacanda, +420 377 221 177 , dan.pacanda@discomp.cz

Technical parameters

Wireless features

MIMO, SISO: 4 x 4
Sensitivity [dBm]: -93
Frequency range [MHz]: 10000 - 11700
Maximum modulation: 256 QAM
Channel bandwidth [MHz]: 20, 40, 80
Wireless frequency: 10 GHz, 11 GHz
Transmission speed - 10GHz [Mb/s]: 1733
Transmission speed - 11GHz [Mb/s]: 1733
Tx power 10GHz [dBm]: 27
Security: 128bit AES
Type of antenna: Detachable

Connectors and Interfaces

LAN speed: (1) 10/100/1000Mbps
Optical interfaces: (1) 1000Mbps

Power

Power over Ethernet: 802.3at, 48 .. 56V DC
Power type: PoE
Max. power consumption [W]: 30

Physical characteristics

Wind load [km/h]: 200
Purpose: Outdoor
Operating temperature [°C]: -40 up to 55
Width [mm]: 158
Height [mm]: 260
Depth [mm]: 70

Software

Operating mode: Client, Access Point
Management: Web management
IPv6 support: Yes
Default IP address: 192.168.1.20
Default login and password: Is set by the user at the first startup
