MikroTik S53UG+M-5HaxD2HaxD-TC&RG502Q-EA, Chateau 5G ax kit
Your price excl. VAT
454.22 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 454.29 EUR |
| Your price incl. VAT (21%) | 549.69 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300716 | |
| Part No. | S53UG+M-5HaxD2HaxD-TC&RG502Q-EA | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band), 3G (GSM), 5G (GSM), LTE
WiFi standards:
802.11ax, 802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
26
Tx power 5GHz [dBm]:
26
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in, Detachable
Internal antennas:
6
Detachable antennas:
4
Antenna gain [dBi]:
3, 6
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz, (18) 850 MHz, (19) 850 MHz, (20) 800 MHz, (26) 850 MHz, (28) 700 MHz, (32) 1500 MHz, (34) 2000 MHz, (38) 2600 MHz, (39) 1900 MHz, (40) 2300 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (77) 3700 MHz, (78) 3500 MHz, (79) 4700 MHz
5G bands support:
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz

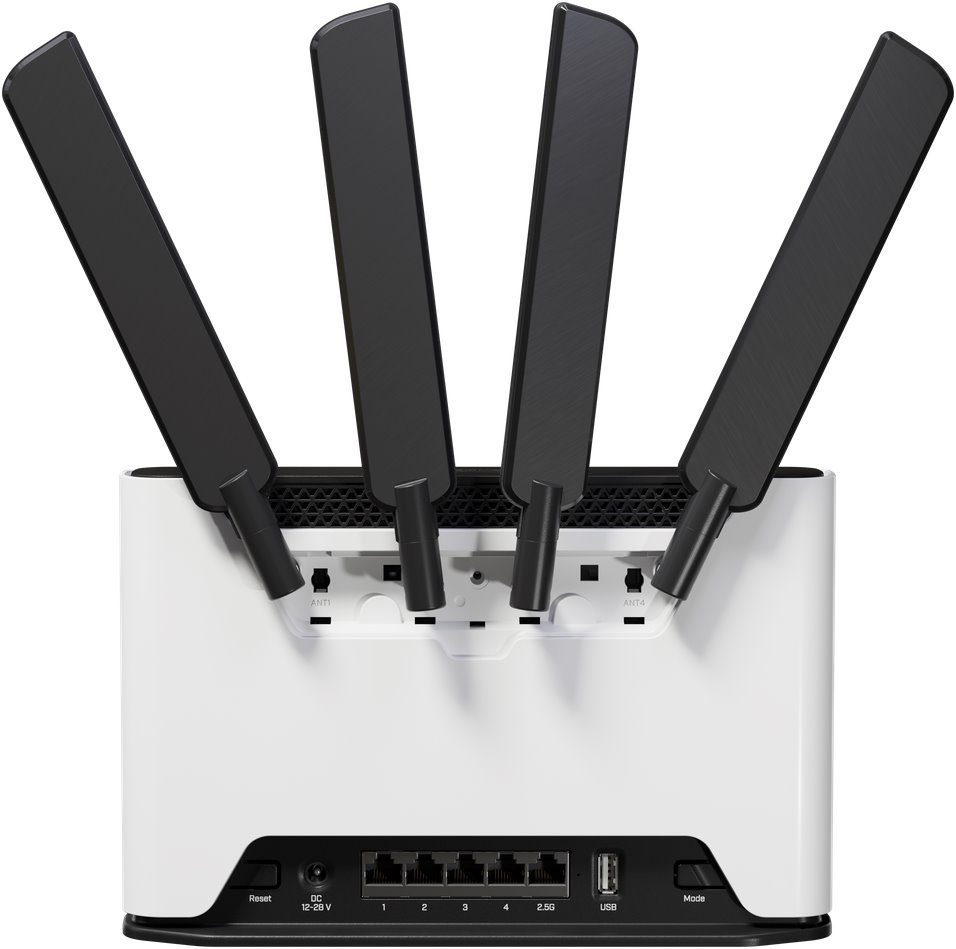

Connectors and Interfaces
RF connectors:
(2) RSMA female, (2) SMA female
LAN speed:
(1) 1G/2.5Gbps + (4) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Max. power consumption [W]:
16
Power via connector/terminal:
12 .. 28V DC
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset, mode
Operating temperature [°C]:
-40 up to 70
Width [mm]:
240
Height [mm]:
156
Depth [mm]:
44

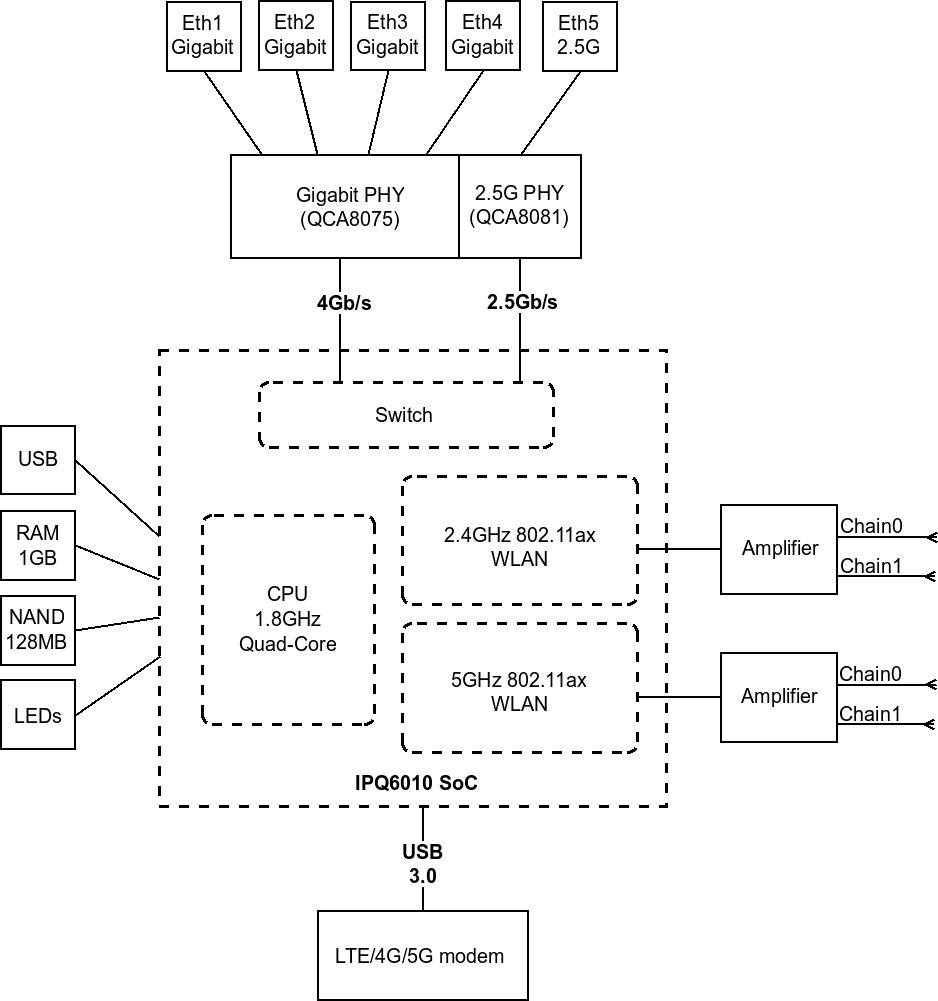

Hardware
CPU:
IPQ-6010
CPU frequency [MHz]:
1800
CPU cores:
4
Internal storage [MB]:
128
RAM [MB]:
1024
Software
Operating mode:
AP Router, Access Point, Cellular router
Operating system:
RouterOS v7 - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

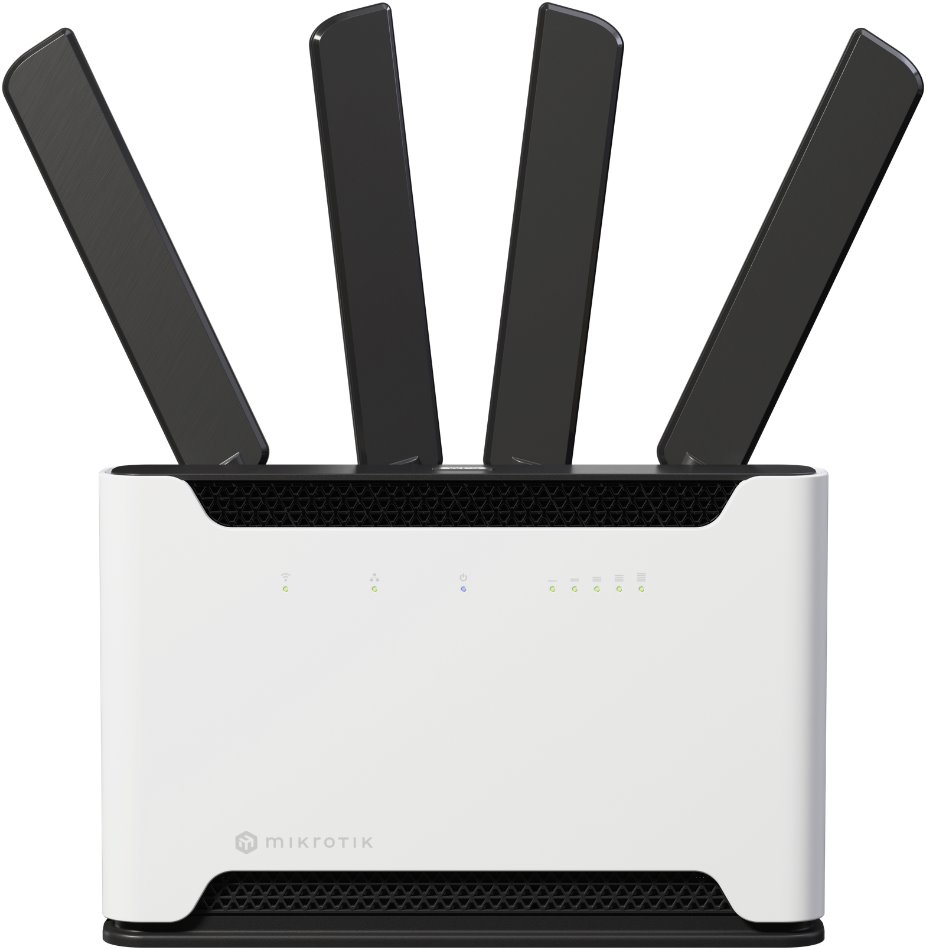

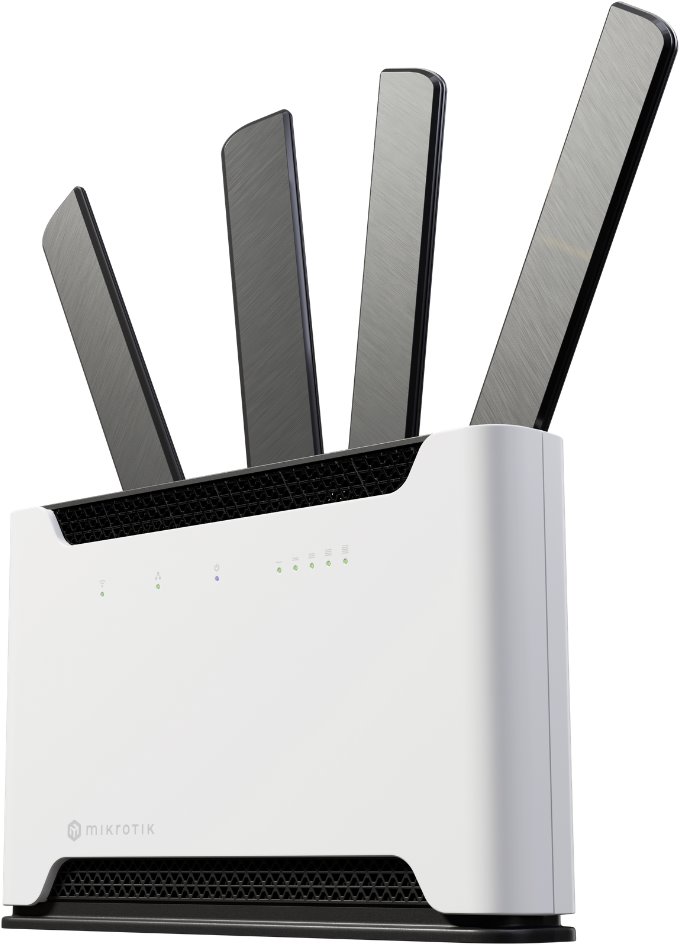

Chateau 5G ax is a Dual Band 2.4/5GHz Wi-Fi 6 router for home or small businesses with (4) Gigabit LAN + (1) 2.5-Gigabit ports, 5G modem, one USB port, L4 license and extra fast 4-core ARM 1800 MHz CPU, 128 MB internal storage and 1 GB RAM. Thus, the user can simultaneously use the 2.4GHz channel for associated mobile wireless devices and have the 5GHz channel reserved, for example, for TV video streaming. The modulation speed of the 2.4GHz radio part (2×2 MIMO) is 574 Mbps and for 5 GHz (2×2 MIMO) it is 1200 Mbps. Chateau 5G ax has six built-in 5G/LTE antennas, two 5G/LTE external antennas and two included Wi-Fi antennas.
In the case of the Chateau 5G ax model, you no longer have to be limited by cables - the advantage of this model is huge wide channel support in 3G/LTE and 5G networks. This 5G router provides speed up to 5,000 Mbps (download) and 900 Mbps upload with low latencies in both 5G and LTE.
Package contents
Download
Datasheet Firmware (RouterOS / SwOS)GPSR
