MikroTik S53UG+5HaxD2HaxD-TC&FG621-EA, Chateau LTE6 ax
Your price excl. VAT
148.53 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 148.60 EUR |
| Your price incl. VAT (21%) | 179.81 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300731 | |
| Part No. | S53UG+5HaxD2HaxD-TC&FG621-EA | |
| Warranty | 24 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.46 EUR excl. VAT
4.19 EUR incl. VAT
Expected 12.2.2025
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band), 3G (GSM), LTE
WiFi standards:
802.11ax, 802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
24
Tx power 5GHz [dBm]:
24
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in, Detachable
Internal antennas:
2
Detachable antennas:
4
Antenna gain [dBi]:
2, 4
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (28) 700 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz
Connectors and Interfaces
RF connectors:
(2) RSMA female, (2) SMA female
LAN speed:
(1) 1G/2.5Gbps + (4) 10/100/1000Mbps
Gigabit LAN:
Yes
USB ports 2.0:
1
SIM slot:
Yes
SIM slots quantity:
1
USB:
Yes
Power
Max. power consumption [W]:
13
Power via connector/terminal:
12 .. 28V DC
Physical characteristics
Design:
Desktop
Purpose:
Indoor
Buttons:
Reset, mode
Operating temperature [°C]:
-40 up to 70
Width [mm]:
240
Height [mm]:
156
Depth [mm]:
44
Hardware
CPU:
IPQ-6010
CPU frequency [MHz]:
1800
CPU cores:
4
Internal storage [MB]:
128
RAM [MB]:
1024
Software
Operating mode:
AP Router, Access Point, Cellular router
Operating system:
RouterOS - L4
IPv6 support:
Yes
Default IP address:
192.168.88.1
Default login and password:
admin / -
Video
Product description

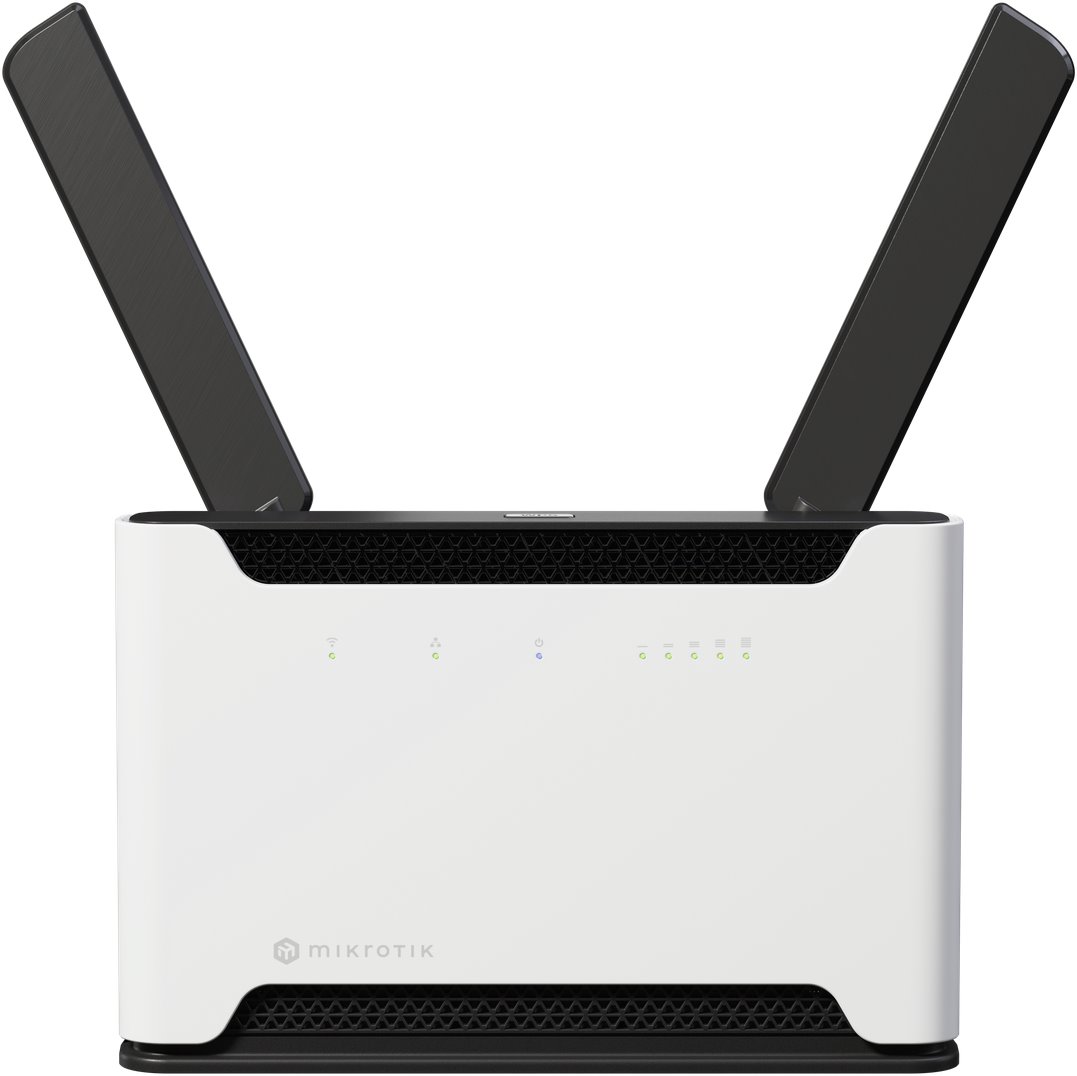

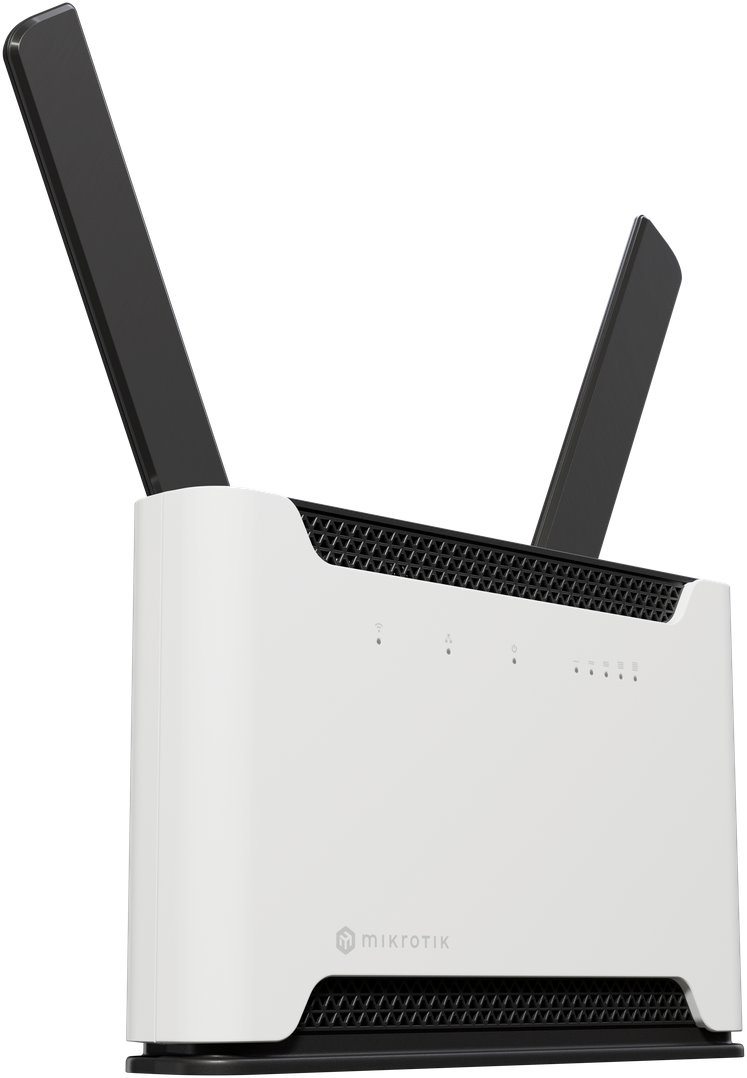

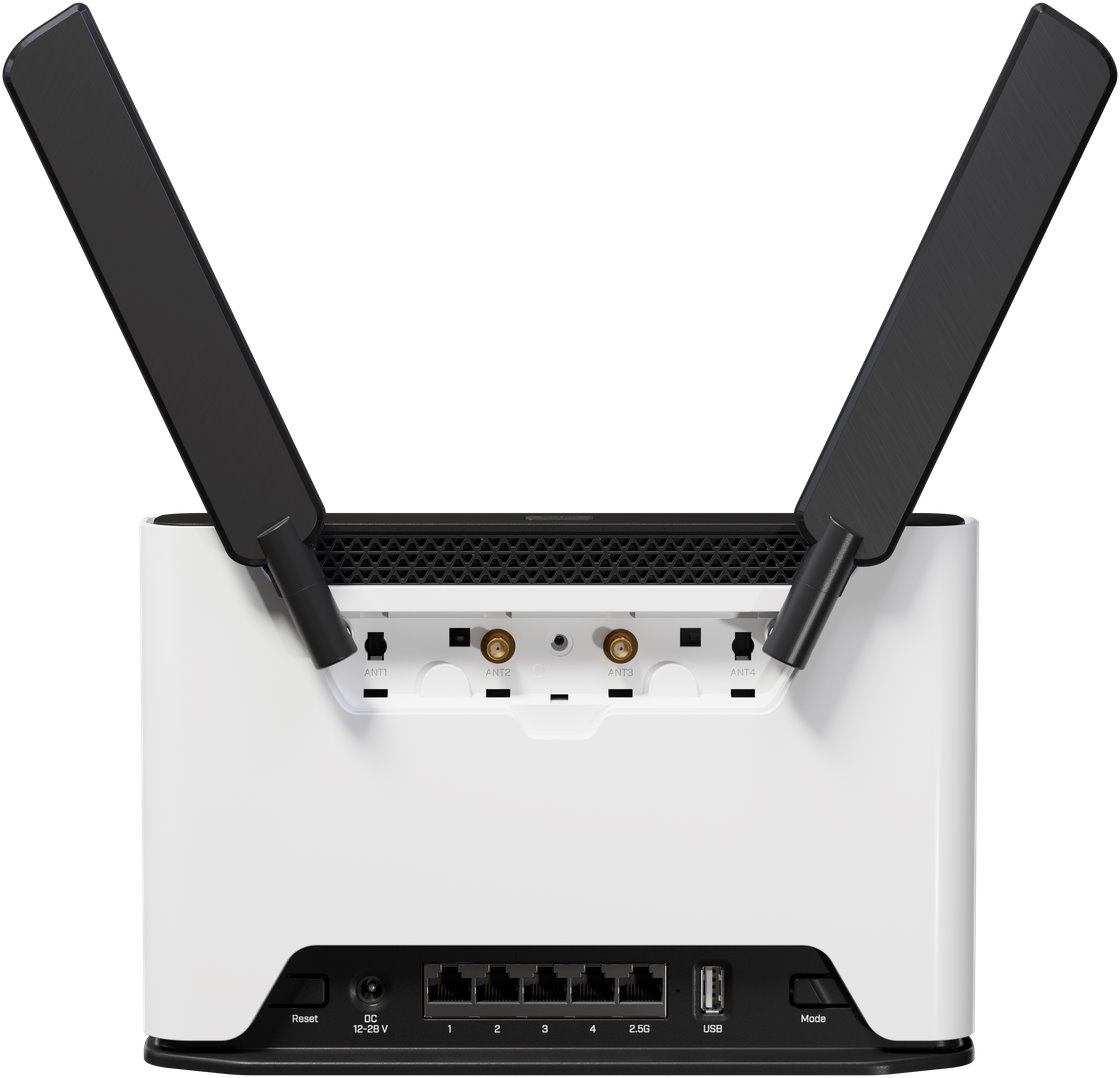

Chateau LTE6 ax is a Dual Band home WiFi router with 5x Gigabit LAN ports and LTE category 6 modem including one USB 2.0 port and a micro SIM card slot. The wireless part of 2.4 GHz provides a modulation speed of 576 Mbps and 5GHz up to 1201 Mbps. Chateau has 2 external Dual Band WiFi antennas with a gain of 2 dBi (2.4 GHz) and 4 dBi (5 GHz) and two connectors for connecting external LTE antennas in case of a weak signal from the built-in antennas.
Chateau LTE6 model is the perfect router for the IT administrator and for the household with zero IT experience. This router provides modulation speed of 300 Mbps for download and 50 Mbps for upload with low latencies in 3G/LTE network .
