MikroTik RouterBOARD RBSXTsq5nD, SXTsq Lite5, L3
Your price excl. VAT
32.66 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 32.73 EUR |
| Your price incl. VAT (21%) | 39.60 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
MikroTik |
|
|---|---|---|
| Code | 10300290 | |
| Part No. | RBSXTsq5nD | |
| Warranty | 24 months | |
ETH-SP-G2
9.56 EUR excl. VAT
11.65 EUR incl. VAT
In Stock
SXTsq-mount
5.09 EUR excl. VAT
6.16 EUR incl. VAT
In Stock
PK35S421V100
12.36 EUR excl. VAT
14.96 EUR incl. VAT
In Stock
CT-290-48-B
6.28 EUR excl. VAT
7.60 EUR incl. VAT
In Stock
OFTP5E24-MSC
129.08 EUR excl. VAT
156.19 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.44 EUR excl. VAT
4.16 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Tx power [dBm]:
25
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
Elevation beam width (-6dB) [°]:
23
Azimuth beam width (-6dB) [°]:
23
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
16
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
10 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
129
Height [mm]:
129
Depth [mm]:
34
Hardware
CPU:
AR9344
CPU frequency [MHz]:
600
CPU cores:
1
Internal storage [MB]:
16
RAM [MB]:
64
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

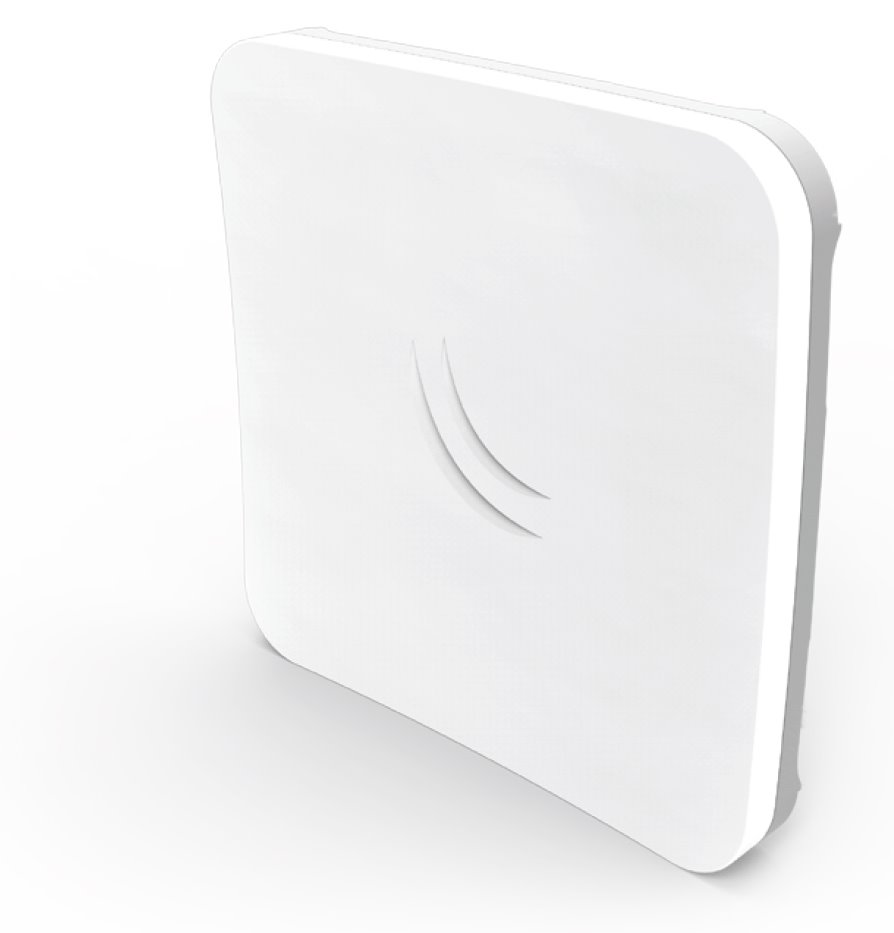

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
The enclosure includes slots for directly attaching a metallic ring mount in three different mounting places, with ability to be mounted on horizontal railings. The device includes one 10/100Mbit ethernet port. There is also an easily accessilble grounding connection to protect it against lightning.
Package contains
Download
Datasheet Firmware (RouterOS / SwOS) Quick GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
