MikroTik RouterBOARD RBLHGG-5acD, LHG 5 ac, ROS L3
We are sorry, this product is no longer in our offer.
QMP-LHG
4.68 EUR excl. VAT
5.66 EUR incl. VAT
In Stock
LHGmount
9.32 EUR excl. VAT
11.28 EUR incl. VAT
In Stock
solidMOUNT
20.71 EUR excl. VAT
25.06 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.68 EUR excl. VAT
4.45 EUR incl. VAT
Expected 17.3.2025
Parameters
Download
GPSR
Technical parameters
Wireless features
Tx power [dBm]:
25
Wireless frequency:
5 GHz
WiFi standards:
802.11ac, 802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
866
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
7
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
24
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
10 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
7
Physical characteristics
Design:
Outdoor
Operating temperature [°C]:
-40 up to 70
Width [mm]:
391
Height [mm]:
391
Depth [mm]:
222
Hardware
CPU frequency [MHz]:
716
CPU cores:
4
Internal storage [MB]:
16
RAM [MB]:
256
Software
Operating system:
RouterOS - L3
Default IP address:
192.168.88.1
Default login and password:
admin / -
Product description

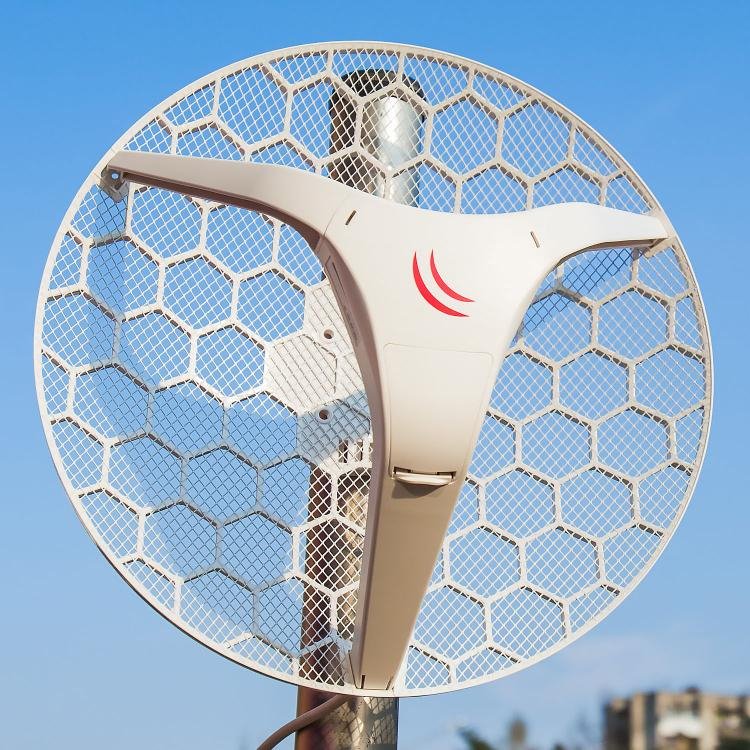

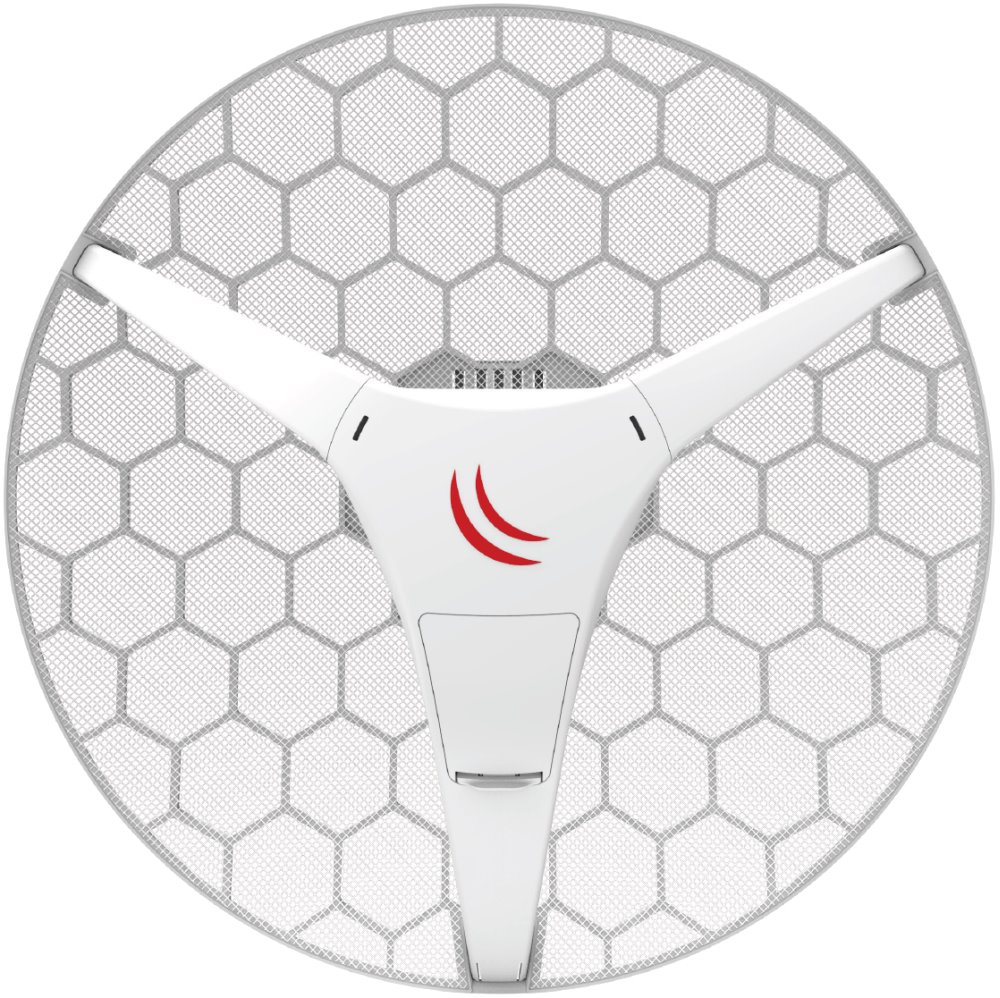

The LHG 5 ac is a compact and light 5GHz 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

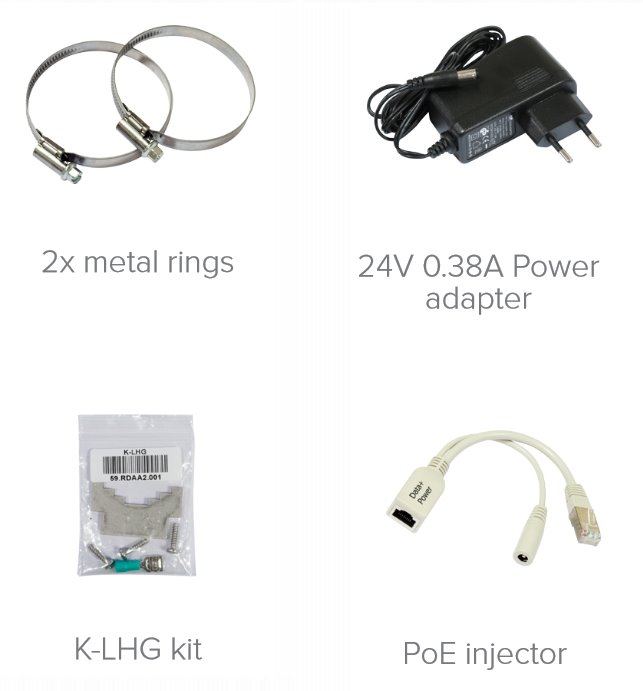

Package contains
Download
CE Datasheet Firmware (RouterOS / SwOS) RouterOS software manualGPSR
